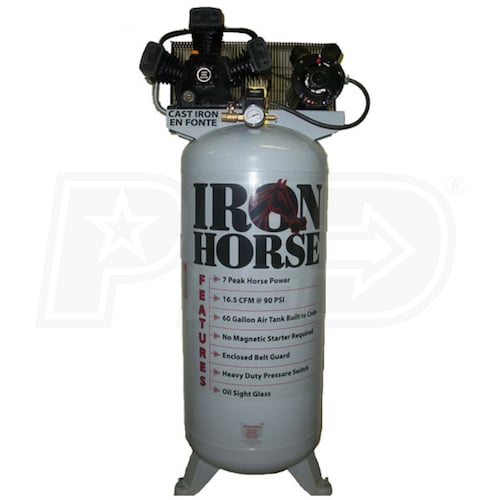

Iron Horse 5-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)
Model: IHD7160V1
3.8 out of 53.8 out of 53.8 out of 53.8 out of 53.8 out of 5
Number of Reviews(4)
Write a Review
$1,029.99
Holiday Shipping Schedule
Holiday Schedule -
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Add an Extended Warranty
Excludes CA
Direct Dollars
Earn up to 10% back in Direct Dollars
Share
  • Product Description
  • 4
    Reviews
  • 4
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer
Style
Single Stage 1-Phase
CFM
16.5
CFM Rated @ 90 PSI
Tank Size
60
Gallons
Grade
Consumer
CFM
16.5 CFM Rated @ 90 PSI
Tank Size
60 Gallons
Features
Features
  • 5 Horsepower Electric Motor
  • Run a wide variety of tools; reaches 7 HP peak at startup

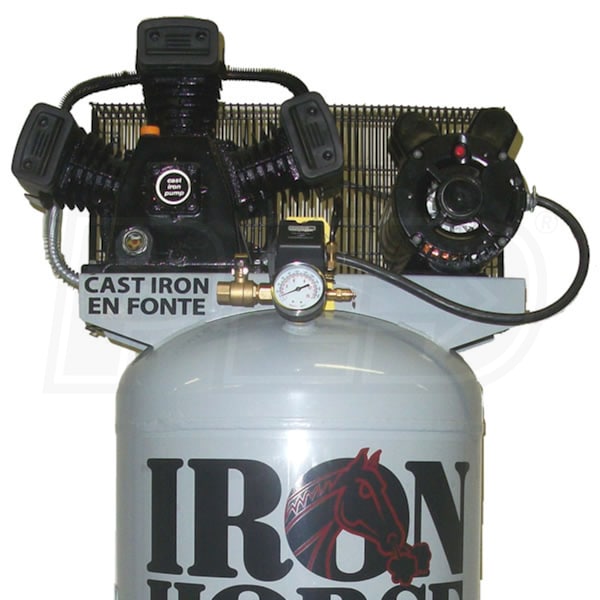

  • Rugged 3 Cylinder Cast Iron Compressor
  • Extremely quiet and durable
  • Individual And Removable Cylinders
  • Provides smoother & cooler operation, longer life
  • No Magnetic Starter Required
  • Everything you need in one package
  • Heavy Duty Pressure Switch
  • Easy on/off control
  • Thermally Protected 208/230 Volt Motor
  • Versatile single phase power fits many applications
  • 60 Gallon ASME Registered Tank
  • Rated to 150 PSIG
  • High Efficiency Reed Valves
  • Provide maximum performance
  • Convenient To Maintain
  • Easy view oil sight gauge
  • Sturdy belt guard
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
290 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
48 Inches
Product Width
40 Inches
Product Height
78 Inches
Power Type
Electric
UPC
777589003523
Grade
Consumer
Style
Single Stage 1-Phase
CFM
16.5
CFM Rated @ 90 PSI
Tank Size
60
Gallons
Grade
Consumer
CFM
16.5 CFM Rated @ 90 PSI
Tank Size
60 Gallons
Features
Features
  • 5 Horsepower Electric Motor
  • Run a wide variety of tools; reaches 7 HP peak at startup
  • Rugged 3 Cylinder Cast Iron Compressor
  • Extremely quiet and durable
  • Individual And Removable Cylinders
  • Provides smoother & cooler operation, longer life
  • No Magnetic Starter Required
  • Everything you need in one package
  • Heavy Duty Pressure Switch
  • Easy on/off control
  • Thermally Protected 208/230 Volt Motor
  • Versatile single phase power fits many applications
  • 60 Gallon ASME Registered Tank
  • Rated to 150 PSIG
  • High Efficiency Reed Valves
  • Provide maximum performance
  • Convenient To Maintain
  • Easy view oil sight gauge
  • Sturdy belt guard
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
290 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
48 Inches
Product Width
40 Inches
Product Height
78 Inches
Power Type
Electric
UPC
777589003523
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.5
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
290 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
48 Inches
Product Width
40 Inches
Product Height
78 Inches
Power Type
Electric
UPC
777589003523
Reviews
(4)
+
Iron Horse IHD7160V1 Reviews & Ratings
Product Q&A
(4)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
What generator size is best to run this compressor?
Sigmund W.
from Florida
August 07, 2019
Answer
This is information we do not have on our end, with any of our manufacturers. You will have to contact Iron Horse directly where they can properly size a generator for you. Their telephone number is: 800-551-2406.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
What is the fill time for the tank?
Joe
from New York
June 23, 2018
Answer
Iron Horse has not provided us with that documentation, but you can contact them directly to find out that specification: 800-551-2406
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
What is the duty cycle?
John Stone
from Kansas
November 06, 2011
Answer
It's how long a stretch at a time that the compressor has been designed to supply air.

For example, a lot of hand tools require short bursts of air: impact wrenches, nailers, etc. Regular air compressors are fine for those tasks; the pump has time to refill the tank at intervals, and cool off in-between.

Other applications require a constant, steady source of air- like large sprayers and manufacturing tools. The pump has to be able to keep up the air supply without over-heating.

Sometimes these units are referred to as 'continuous duty', or '100% duty'.

Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
What amp breakers do I need. Present line is 20 amp.
James Notley
from California
October 29, 2011
Answer
I checked with the folks at Iron Horse, and they say that this unit draws 15 amps.
Was this answer helpful?
