Iron Horse 7-HP 80-Gallon Single Stage Air Compressor (208/230V 1-Phase)

Iron Horse 7-HP 80-Gallon Single Stage Air Compressor (208/230V 1-Phase)
Model: IHD7180V1
$1,249.00
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping &
Tax-Free (Except IL)
Add-Ons
+$50.00
Free ShippingNo Sales Tax* (Except IL)$1,249.00Buy Now
No Sales Tax* (Except IL)$1,299.00Visit Site
Sales Tax Extra $1,871.69Visit Site
Factory-Direct
Ships in 4-7 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
  • Product Description
  • 1
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Application
Consumer Grade Air Compressors
Style
Single Stage 1-Phase
CFM
16
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Application
Consumer
Style
Single Stage 1-Phase
CFM
16 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features

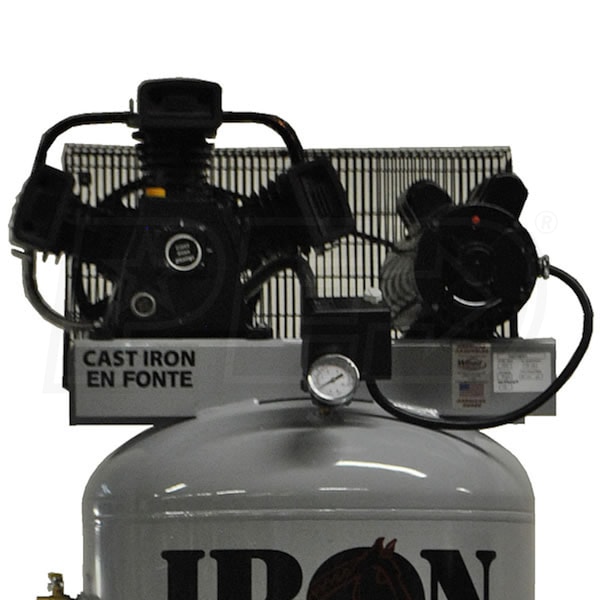

  • Rugged Compressor With 3 Cast Iron Cylinders
  • "V" design minimizes vibration, improves cooling, extends life
  • High efficiency reed valves provide maximum performance
  • Individual & Removable Cylinders
  • Smoother & cooler operation for optimum durability
  • No Magnetic Motor Starter Needed
  • Improved performance with less expense
  • Heavy-Duty Pressure Switch With On/Off Control
  • 50% duty cycle delivers 16 CFM at 90 PSI; 150 PSI maximum
  • 7 HP (Peak) 208-230 Volt, Single Phase Electric Motor
  • Protected against overheating; requires 22.5 amp circuit
  • Easy-View Oil Sight Gauge
  • Lets you check oil level at a glance for easy maintenance
  • Efficient Heat Removal From Fly Wheel
  • Cooler running & longer compressor life
  • Sturdy Metal Belt Guard
  • Protects both the belt & the operator
  • 80 Gallon ASME Registered Tank
  • Rated to 150 PSI; sturdy 1/2" ball valve air outlet included
  • CSA certified for increased assurance of quality and safety
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22.5
Engine
HP
7
Pump
CFM
16
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
150 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
330 Pounds
Product Length
36 Inches
Product Width
23.5 Inches
Product Height
68 Inches
Consumer Warranty
1 Year
UPC
020791500206
Application
Consumer Grade Air Compressors
Style
Single Stage 1-Phase
CFM
16
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Application
Consumer
Style
Single Stage 1-Phase
CFM
16 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
  • Rugged Compressor With 3 Cast Iron Cylinders
  • "V" design minimizes vibration, improves cooling, extends life
  • High efficiency reed valves provide maximum performance
  • Individual & Removable Cylinders
  • Smoother & cooler operation for optimum durability
  • No Magnetic Motor Starter Needed
  • Improved performance with less expense
  • Heavy-Duty Pressure Switch With On/Off Control
  • 50% duty cycle delivers 16 CFM at 90 PSI; 150 PSI maximum
  • 7 HP (Peak) 208-230 Volt, Single Phase Electric Motor
  • Protected against overheating; requires 22.5 amp circuit
  • Easy-View Oil Sight Gauge
  • Lets you check oil level at a glance for easy maintenance
  • Efficient Heat Removal From Fly Wheel
  • Cooler running & longer compressor life
  • Sturdy Metal Belt Guard
  • Protects both the belt & the operator
  • 80 Gallon ASME Registered Tank
  • Rated to 150 PSI; sturdy 1/2" ball valve air outlet included
  • CSA certified for increased assurance of quality and safety
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22.5
Engine
HP
7
Pump
CFM
16
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
150 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
330 Pounds
Product Length
36 Inches
Product Width
23.5 Inches
Product Height
68 Inches
Consumer Warranty
1 Year
UPC
020791500206
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22.5
Engine
HP
7
Pump
CFM
16
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Pump Type
Single-Stage
Max PSI
150 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
330 Pounds
Product Length
36 Inches
Product Width
23.5 Inches
Product Height
68 Inches
Consumer Warranty
1 Year
UPC
020791500206
