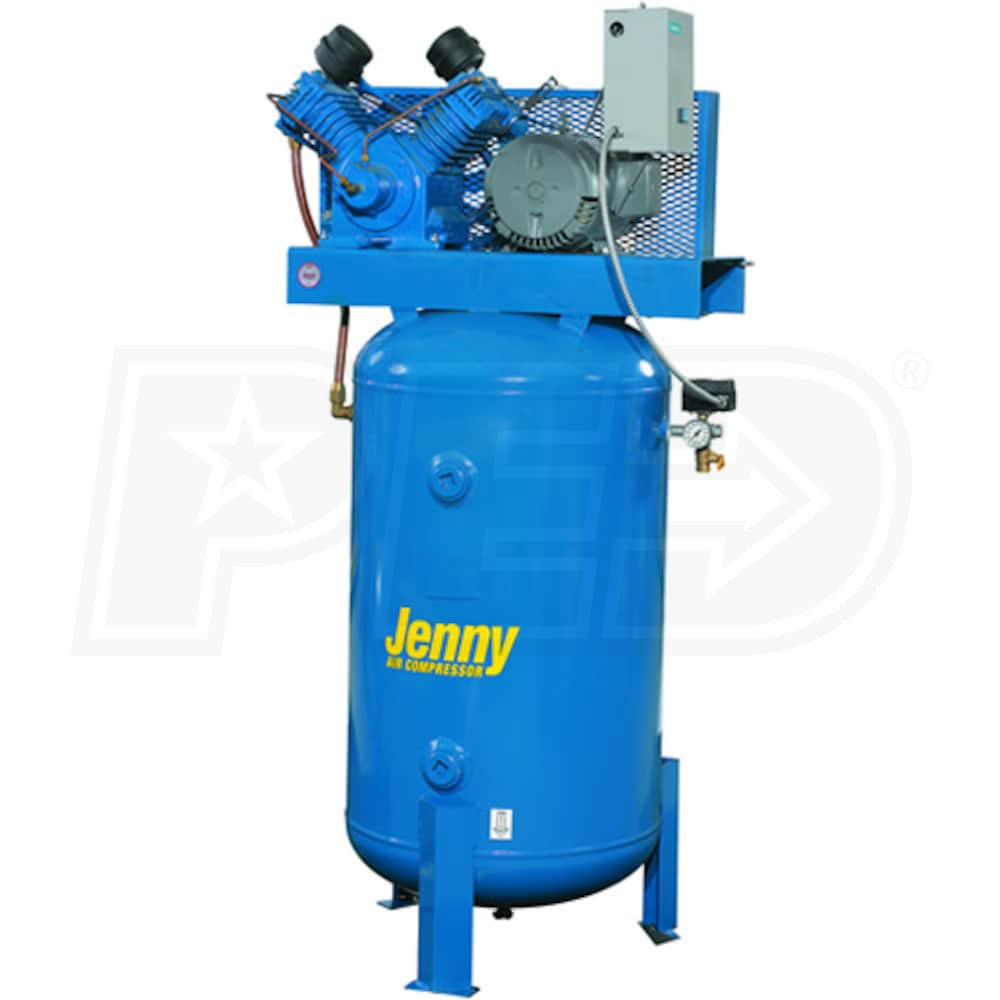

Jenny J5A-80V 5-HP 80-Gallon Single-Stage Air Compressor - (230V, 1-Phase)
Model: J5A-80V
No RatingNo RatingNo RatingNo RatingNo Rating
Number of Reviews(0)
Write a Review
$2,999.99
Free Shipping
&
Lift Gate
Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Add an Extended Warranty
Excludes CA
Share
  • Product Description
  • Reviews
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Single Stage 1-Phase
CFM
23
CFM Rated @ 125 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
23 CFM Rated @ 125 PSI
Tank Size
80 Gallons
Features
Features
  • Heavy Duty Splash Lubricated Cast Iron Pump
  • Made in Somerset, PA USA
  • Filled with "Jenny Ultimate Blue Synthetic Compressor Pump Oil"
  • Belt Drive Design w/ Totally Enclosed Heavy-Duty Belt Guard
  • Large flywheel for extra cooling and easier start-up
  • Directional air shroud for reduced pump temperatures
  • 5-HP Industrial/Commercial Grade UL Listed Electric Motor
  • Thermal overload motor protection
  • Includes magnetic starter
  • 80-Gallon Air Receiver
  • Powder coated and ASME certified
  • Large Canister Inlet Filter
  • With replaceable filter elements for extended pump life
  • Auto Start/Stop Control w/ Pressure Unloader
  • Set at 105-125 PSI
  • Added Features
  • Protectively mounted fittings & manual tank drain
  • Tank gauge & Pressure relief safety valve
  • Special unloading valves to assist in motor starting
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Engine
HP
5
Pump
CFM
23
CFM Rated @
125 PSI
CFM @ 90 PSI
24
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
675 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
51 Inches
Product Width
42 Inches
Product Height
78 Inches
Power Type
Electric
UPC
885188048828
Grade
Commercial
Style
Single Stage 1-Phase
CFM
23
CFM Rated @ 125 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
23 CFM Rated @ 125 PSI
Tank Size
80 Gallons
Features
Features
  • Heavy Duty Splash Lubricated Cast Iron Pump
  • Made in Somerset, PA USA
  • Filled with "Jenny Ultimate Blue Synthetic Compressor Pump Oil"
  • Belt Drive Design w/ Totally Enclosed Heavy-Duty Belt Guard
  • Large flywheel for extra cooling and easier start-up
  • Directional air shroud for reduced pump temperatures
  • 5-HP Industrial/Commercial Grade UL Listed Electric Motor
  • Thermal overload motor protection
  • Includes magnetic starter
  • 80-Gallon Air Receiver
  • Powder coated and ASME certified
  • Large Canister Inlet Filter
  • With replaceable filter elements for extended pump life
  • Auto Start/Stop Control w/ Pressure Unloader
  • Set at 105-125 PSI
  • Added Features
  • Protectively mounted fittings & manual tank drain
  • Tank gauge & Pressure relief safety valve
  • Special unloading valves to assist in motor starting
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Engine
HP
5
Pump
CFM
23
CFM Rated @
125 PSI
CFM @ 90 PSI
24
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
675 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
51 Inches
Product Width
42 Inches
Product Height
78 Inches
Power Type
Electric
UPC
885188048828
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Engine
HP
5
Pump
CFM
23
CFM Rated @
125 PSI
CFM @ 90 PSI
24
Pump Material
Solid Cast Iron
Max PSI
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
675 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
51 Inches
Product Width
42 Inches
Product Height
78 Inches
Power Type
Electric
UPC
885188048828
