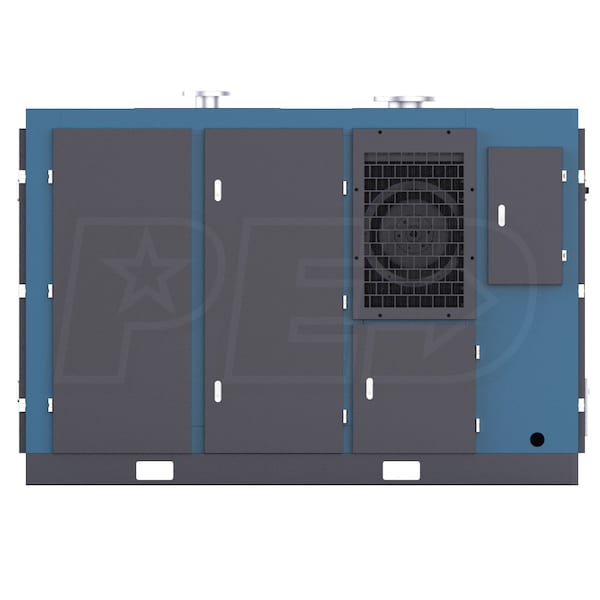

Kaishan 30-HP Tankless Variable Speed Rotary Screw Vacuum Pump (460V 3-Phase)

Model:

KRSV-030AV4S8U

Write A Review
$57,999.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-5 Business Days

Kaishan 30-HP Tankless Variable Speed Rotary Screw Vacuum Pump (460V 3-Phase)
Kaishan 30-HP Tankless Variable Speed Rotary Screw Vacuum Pump (460V 3-Phase)
Model: KRSV-030AV4S8U
$57,999.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
KAISHAN Compressors
Unrivaled Performance with up to 35% energy cost savings
Offer Ends
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

460 Volt AC

Phase

3-Phase

CFM

982

Tank Size

0



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
    Unit Is Too Large For Liftgate Service, Must Have A Shipping Dock Or Forklift
  • KRSV Industrial Rotary Screw Variable Speed Vacuum Pump
  • Highly reliable, world-class efficiency, and big cost savings
  • Ideal for medical, woodworking, food/beverage, printing & many more applications
  • Rotary Screw Positive Displacement Vacuum Pump Technology
  • Creates vacuum by drawing air or gas from the chamber
  • Discharging back into the atmosphere through intermeshing rotary screws
  • Continuous process flow moves gas at a constant speed for stability
  • High-Efficiency TEFC (IP54) Electric Direct Drive Motor w/ Variable Speed
  • Long operating life, lower power, and major cost savings
  • Operates efficiently by matching flow to demand while maintaining pressure control
  • Direct-drive vacuum motor couples directly to vacuum driveshaft powers vacuum airend
  • Performance Data - 15 to 29.9 Inlet Pressure HgV (See Flow Chart)
  • 15 PSI, 2400 Max RPM, 705 CFM, 24.5 Input Power KW
  • 27 PSI, 3030 Max RPM, 962 CFM, 24.7 Input Power KW
  • 29.9 PSI, 3260 Max RPM, 387 CFM, 22.6 Input Power KW
  • MAM-6090 Digital Smart Control Panel
  • Protects in the event of a fault and alerts with built-in alarms
  • Large display screen with icon touch display monitors & controls key functions
  • Premium SKYv Series Air End & Variable Discharge Port
  • Asymmetric 5/6 rotor profile and precision ground rotor machining
  • 100% SKF bearing for longer life expectancy averaging 100,000 hours
  • Achieves maximum efficiency by adjusting internal compression ratio
  • Heavy-Duty Low Sound Enclosure
  • Ensures quiet operation, easy access for serviceability, and advanced electricals
  • 316 stainless steel control tubing and brass fittings or longer life & less downtime
  • Reliable System Operation
  • High-efficiency intake filter captures dust without impeding airflow
  • Laminar flow inlet valve for minimum pressure drop and increased output
  • Cast aluminum oil cooler increases life expectancy in harsh environments
  • 3-Stage Tangential Oil Separation
  • Residual oil carryover limited to 3 PPM
  • Lower particle contact results in lower pressure drop and energy
  • Optimized mechanical pre-separation, reduced direct oil impingement on element
  • Limited Manufacturer Warranty
  • Air End, Main Motor, Motor, Major Components - 5 Years & Entire Package - 1 Year
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

KRSV-030AV4S8U
specs product image PID-152705
Engine
HP
30
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
74
Amp Draw
36
Recommended Breaker
Consult Certified Electrician
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
982
CFM Rated @
27.7 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
29.9 PSI
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
4-Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
3836 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
86 Inches
Product Width
57 Inches
Product Height
62 Inches
Power Type
Electric
