Features
Grade
Contractor
Style
Twin Stack
CFM
4.1
Tank Size
5
- 120 Volt, 15 Amp, 2 HP, 60 Hz Electric Motor
- 4.2 CFM at 90 PSI is ideal for small indoor jobs
- Thermal overload circuit protects the motor
- Cast Iron Pump Cylinder
- Rugged and long lasting
- Stainless steel braided discharge hose
- 5 Gallon Powder Coated Twin Tanks
- Includes regulator and 2 gauges for tank and outlet pressure
- Start / Stop control set at 95 - 125 PSI
- Ergonmically Designed
- Well balanced with rubber handled grip
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
AM1-HE02-05M
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15
Engine
HP
2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
4.1
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
56 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
20.5 Inches
Product Width
15.5 Inches
Product Height
17 Inches
Power Type
Electric
UPC
016977014582
Additional Model Numbers
AC1-HE02-05M1, AM1-HE02-05M
Reviews
Mi-T-M AM1-HE02-05M Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Twin-Stack Compressor
You don't have to be Tim "The Tool Man" Taylor to take on home improvement task...
Air Compressors How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

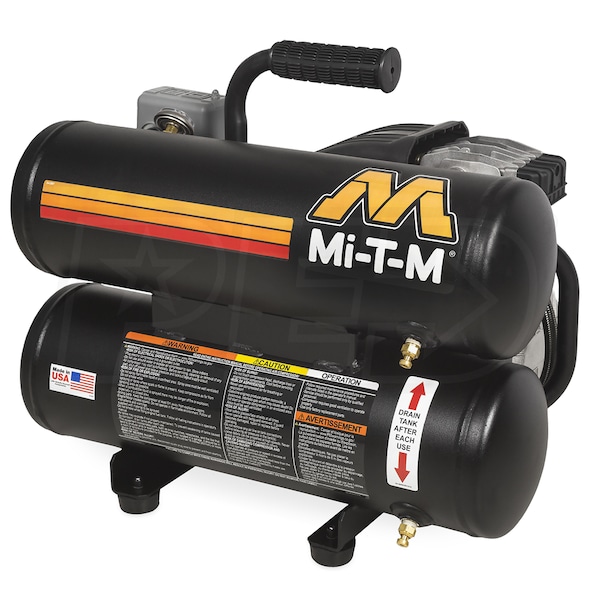

Mi-T-M 2-HP 5-Gallon Contractor Twin Stack Air Compressor
