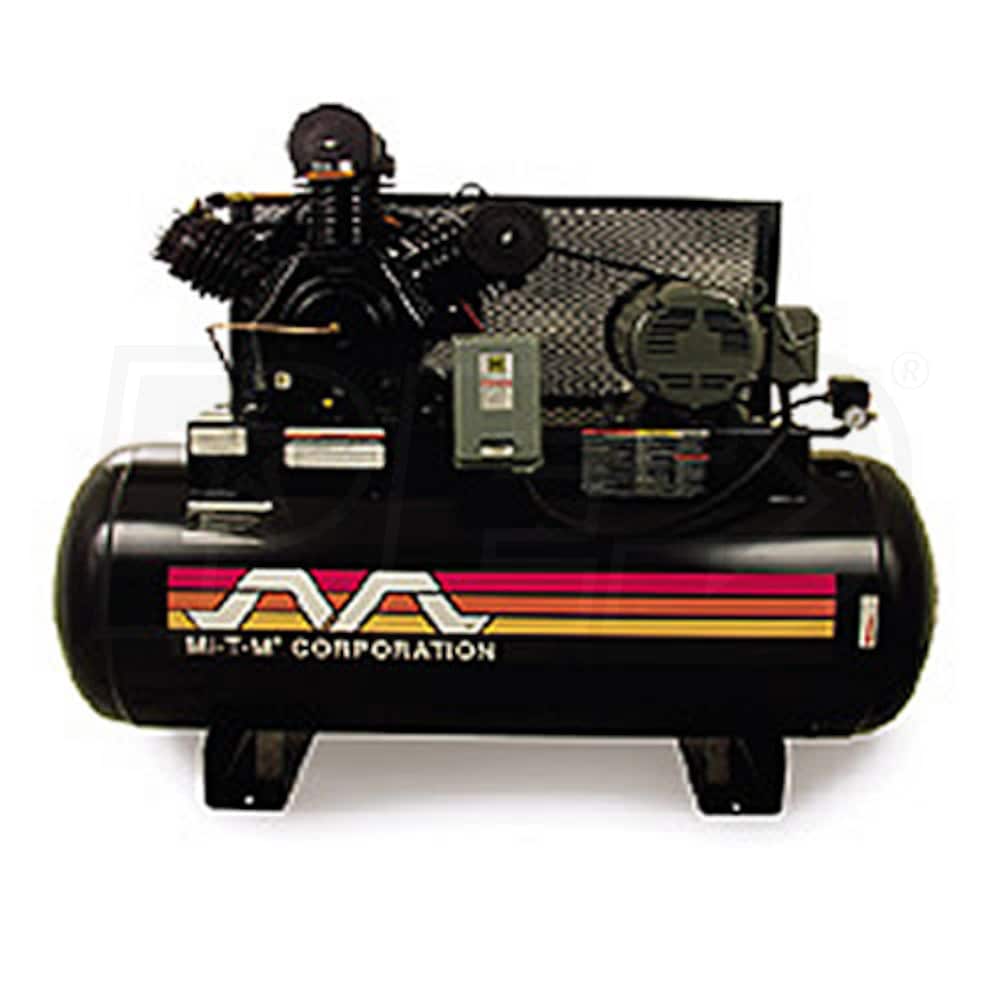

Mi-T-M 10-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase)

Model:

AS4-HE10-120M

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Mi-T-M 10-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase)
Mi-T-M 10-HP 120-Gallon Two-Stage Air Compressor (230V 3-Phase)
Model: AS4-HE10-120M
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

3-Phase

CFM

30.5

Tank Size

120

  • Powerful 10 HP Industrial Electric Unit Is Designed for Heavy Use
  • Cast iron cylinder & head last longer than lightweight components
  • Needs a 230 volt, 3 phase, 22 amp circuit
  • Splash Lubricated, Cast Iron Crankcase
  • Rugged and durable to work hard and last a long time
  • Easy maintenance with built in oil sight glass & manual drains
  • Large Flywheel With 14 Gauge, 1 Piece Belt Guard
  • Allows extra cooling; prolongs unit life
  • Guard allows easy access to belts; powder coating resists rust
  • All This On A Sturdy Chassis
  • Powder coated, ASME certified, 120 gallon receiver tank
  • Magnetic starter with mounting box and wiring
  • Two-stage intercooler helps maintain safe working temperature
  • Dual large canister intake filters keep airflow clean & steady
  • Generous Warranty
  • 1 year limited warranty on electric motor
  • 2 year limited warranty on the rest of the unit
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

AS4-HE10-120M
specs product image PID-3075
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
30.5
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
120 Gallons
Tank Orientation
Horizontal
Overview
Weight
785 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
74 Inches
Product Width
28 Inches
Product Height
50 Inches
Power Type
Electric
UPC
016977013639
