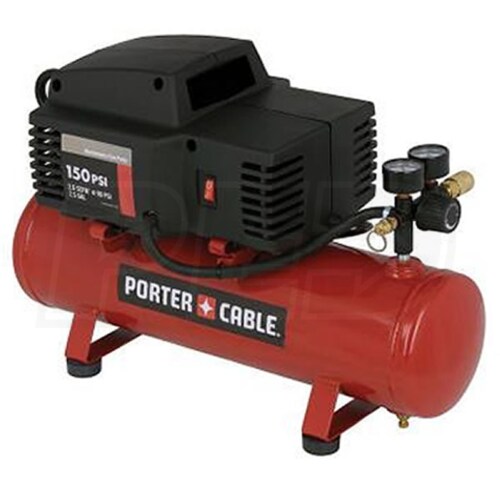

Porter Cable 2.5 Gallon Hot Dog Compressor
Porter Cable 2.5 Gallon Hot Dog Compressor
Model: C2025
Features
Specifications
Reviews
How-To Articles
Share

Features

Grade

Consumer

Style

Hot Dog

CFM

2.6

Tank Size

2.5

  • Durable Oil-Free Pump
  • Long life & no maintenance
  • Low Amp 120-Volt Motor
  • Starts easily in cold weather or with an extension cord
  • Works on any household 10 Amp outlet
  • Cast Iron 2.5-gal. Hot Dog Style Tank
  • Weighs only 24 pounds- easy to carry & store
  • Includes water drain valve and rubber feet
  • 150 PSI Max Tank Pressure
  • Stores more air in the tank for longer tool runtimes
  • 2.6 SCFM At 90 PSI
  • Quick compressor recovery time, per ISO1217
  • Easy To Read Gauges
  • Monitor tank and outlet pressure at a glance

Specifications

C2025
specs product image PID-12045
Motor
Voltage
120 Volt AC
Phase
1-Phase
Amp Draw
10
Engine
HP
2.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.6
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
2.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Overview
Weight
24 Pounds
Certification
UL
Consumer Warranty
1 Year
Product Length
24.8 Inches
Product Width
10.5 Inches
Product Height
16.8 Inches
Power Type
Electric
UPC
885911041584
