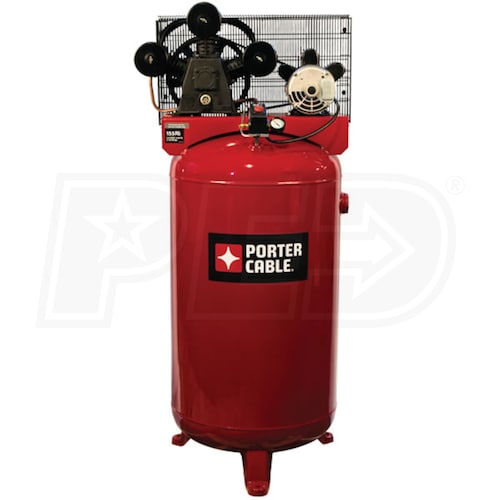

Porter Cable 4.7-HP 80-Gallon Single-Stage Air Compressor
Model: PXCMLA4708065
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
14
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
14 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
- 240 Volt, 4.7 HP Single Phase Induction Motor
- Provides maximum performance & efficiency
- Cast Iron, Hi-Flo Twin Cylinder Pump
- Thermally stable, durable one-piece cast iron crankcase
- Aluminum head & valve plate help dissipate heat
- Swedish stainless steel reed valves for reliable performance
- Automotive-style ball bearings provide smooth operation
- Oil Lubricated Pump
- Shipped with synthetic oil to extend pump life; 2 year warranty
- Oil level sight glass for easy maintenance
- Large intake filter/silencers for quieter operation
- Easily accessible oil fill
- 12" Cast Iron Flywheel With Full Metal Belt Guard
- Belt drive runs more efficiently than direct drive units
- Large Capacity 80 Gallon ASME Air Tank
- Provides longer run times to support ratchets, wrenches, etc.
- Produces 16.1 CFM @ 40 PSI; 14 CFM @ 90 PSI
- Convenient Controls
- Top mounted pressure gauge & pressure switch are easy to reach
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
22
Recommended Breaker
30 Amp Breaker
Engine
HP
4.5
Pump
CFM
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
354 Pounds
Certification
UL
Consumer Warranty
1 Year
Product Length
31.5 Inches
Product Width
34.75 Inches
Product Height
77 Inches
Power Type
Electric
UPC
846212006221
Grade

Style

CFM
14
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
14 CFM Rated @ 90 PSI
Tank Size
80 Gallons
