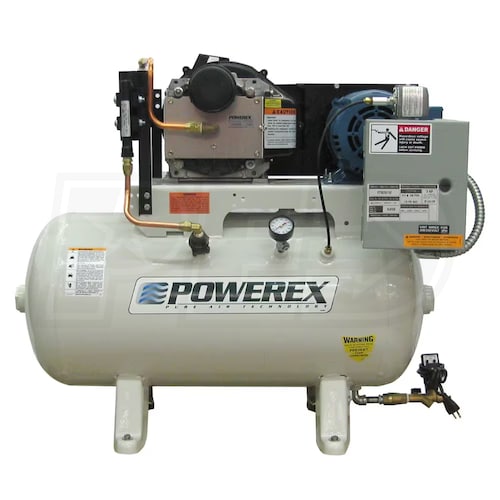

Powerex STS 5-HP 60-Gallon High Pressure Oil-Less Open Scroll Air Compressor w/ Refrigerated Dryer (208/230V 3-Phase 145 PSI)
Model: STS050234HP
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
12.5
CFM Rated @ 100 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
12.5 CFM Rated @ 100 PSI
Tank Size
60 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- ISO 8573-1 Class Zero High Pressure Oil-Free Air (Not For Medical Use)
- Perfect for any application where a compact footprint and completely clean, dry air is required
- Ideal for manufacturing, instrumentation, pharmaceutical production, laboratories, etc.
- Onboard Refrigerated Air Dryer
- Completely integrated into the system to eliminate contamination of the end product
- Easy to access and simple to maintain
- Integral Aftercooler Design
- Cools the compressed air, allowing water droplets to condense out of the air flow for drier air
- Extremely Quiet & Energy Efficient
- 72 dBA is perfect for situations where excessive noise or vibration may be an issue; about as loud as a vacuum cleaner
- The oil-free scroll design eliminates the need for costly oil changes; the few moving parts make it extremely durable
- No oil contamination of your end product, powered equipment, or the environment
- UL Listed Magnetic Starter
- Safely & reliably starts the compressor; provides under-voltage and overload protection
- 60-Gallon Air Tank With Automatic 115V No-Loss Tank Drain
- Certified to meet ASME standards for your safety; rated up to 200 PSI (145 PSI maximum working pressure)
- Simplifies maintenance- just set the timer for regular draining of the air receiver; will not affect air pressure
- Limited Standard Factory Warranty Covers Defects In Materials & Workmanship
- 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
dBA
72
Magnetic Starter
Yes
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
12.5
CFM Rated @
100 PSI
Max PSI
145 PSI
Pump Type
Scroll Compressor
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
455 Pounds
Certification
ASME, OSHA, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
53 Inches
Product Width
23 Inches
Product Height
43 Inches
Grade
Style
CFM
12.5
CFM Rated @ 100 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
12.5 CFM Rated @ 100 PSI
Tank Size
60 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- ISO 8573-1 Class Zero High Pressure Oil-Free Air (Not For Medical Use)
- Perfect for any application where a compact footprint and completely clean, dry air is required
- Ideal for manufacturing, instrumentation, pharmaceutical production, laboratories, etc.
- Onboard Refrigerated Air Dryer
- Completely integrated into the system to eliminate contamination of the end product
- Easy to access and simple to maintain
- Integral Aftercooler Design
- Cools the compressed air, allowing water droplets to condense out of the air flow for drier air
- Extremely Quiet & Energy Efficient
- 72 dBA is perfect for situations where excessive noise or vibration may be an issue; about as loud as a vacuum cleaner
- The oil-free scroll design eliminates the need for costly oil changes; the few moving parts make it extremely durable
- No oil contamination of your end product, powered equipment, or the environment
- UL Listed Magnetic Starter
- Safely & reliably starts the compressor; provides under-voltage and overload protection
- 60-Gallon Air Tank With Automatic 115V No-Loss Tank Drain
- Certified to meet ASME standards for your safety; rated up to 200 PSI (145 PSI maximum working pressure)
- Simplifies maintenance- just set the timer for regular draining of the air receiver; will not affect air pressure
- Limited Standard Factory Warranty Covers Defects In Materials & Workmanship
- 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
dBA
72
Magnetic Starter
Yes
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
12.5
CFM Rated @
100 PSI
Max PSI
145 PSI
Pump Type
Scroll Compressor
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
455 Pounds
Certification
ASME, OSHA, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
53 Inches
Product Width
23 Inches
Product Height
43 Inches
Product Specs
+−
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
dBA
72
Magnetic Starter
Yes
Amp Draw
14
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
12.5
CFM Rated @
100 PSI
Max PSI
145 PSI
Pump Type
Scroll Compressor
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
455 Pounds
Certification
ASME, OSHA, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
53 Inches
Product Width
23 Inches
Product Height
43 Inches
