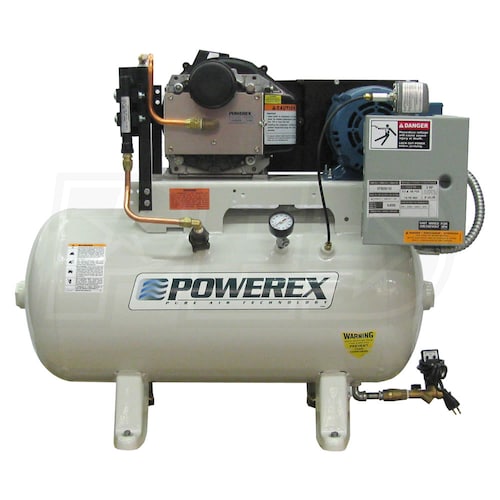

Powerex STS 10-HP 120-Gallon Oil-Less Open Scroll Air Compressor (460V 3-Phase 116 PSI)
Powerex STS 10-HP 120-Gallon Oil-Less Open Scroll Air Compressor (460V 3-Phase 116 PSI)
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
31.2
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
31.2 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- ISO 8573-1 Class Zero Oil-Free Air (Not For Medical Use)
- Perfect for any application where completely clean, dry air is required
- Ideal for manufacturing, instrumentation, pharmaceutical production, laboratories, etc.

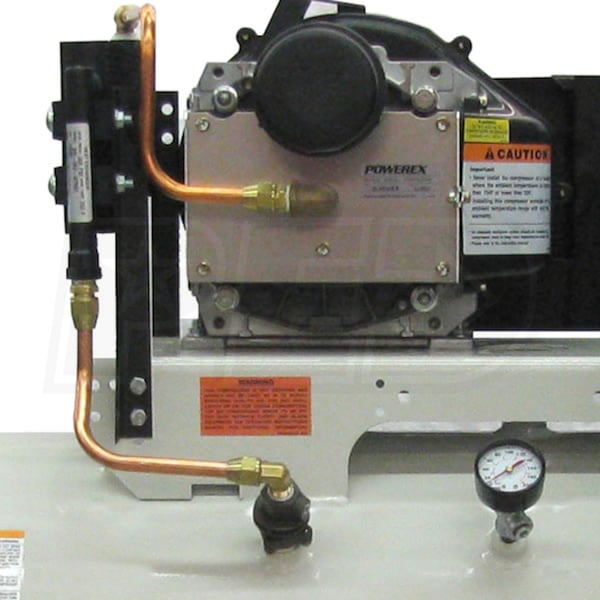

- Integral Aftercooler Design
- Cools the compressed air, allowing water droplets to condense out of the air flow for drier air
- Easy Installation
- Mounting the compressor on top of the tank maximizes available floor space
- Extremely Quiet & Energy Efficient
- 76 dBA is perfect for situations where excessive noise or vibration may be an issue; about as loud as a vacuum cleaner
- Low Maintenance Cost
- The oil-free scroll design eliminates the need for costly oil changes; the few moving parts make it extremely durable
- No oil contamination of your end product, powered equipment, or the environment
- UL Listed Magnetic Starter
- Safely & reliably starts the compressor; provides under-voltage and overload protection

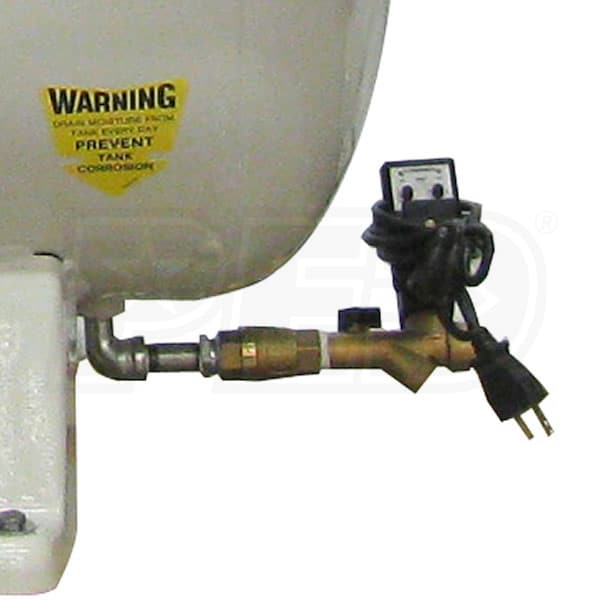

- 120-Gallon Air Tank With Automatic 115V No-Loss Tank Drain
- Certified to meet ASME standards for your safety; rated up to 200 PSI (116 PSI maximum working pressure)
- Simplifies maintenance- just set the timer for regular draining of the air receiver; will not affect air pressure
- Limited Standard Factory Warranty Covers Defects In Materials & Workmanship
- 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
76
Magnetic Starter
Yes
Amp Draw
12
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
31.2
CFM Rated @
100 PSI
Max PSI
116 PSI
Pump Type
Scroll Compressor
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
830 Pounds
Certification
ASME, OSHA, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
28 Inches
Product Height
48 Inches
Grade
Style
CFM
31.2
CFM Rated @ 100 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
31.2 CFM Rated @ 100 PSI
Tank Size
120 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- ISO 8573-1 Class Zero Oil-Free Air (Not For Medical Use)
- Perfect for any application where completely clean, dry air is required
- Ideal for manufacturing, instrumentation, pharmaceutical production, laboratories, etc.
- Integral Aftercooler Design
- Cools the compressed air, allowing water droplets to condense out of the air flow for drier air
- Easy Installation
- Mounting the compressor on top of the tank maximizes available floor space
- Extremely Quiet & Energy Efficient
- 76 dBA is perfect for situations where excessive noise or vibration may be an issue; about as loud as a vacuum cleaner
- Low Maintenance Cost
- The oil-free scroll design eliminates the need for costly oil changes; the few moving parts make it extremely durable
- No oil contamination of your end product, powered equipment, or the environment
- UL Listed Magnetic Starter
- Safely & reliably starts the compressor; provides under-voltage and overload protection
- 120-Gallon Air Tank With Automatic 115V No-Loss Tank Drain
- Certified to meet ASME standards for your safety; rated up to 200 PSI (116 PSI maximum working pressure)
- Simplifies maintenance- just set the timer for regular draining of the air receiver; will not affect air pressure
- Limited Standard Factory Warranty Covers Defects In Materials & Workmanship
- 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
76
Magnetic Starter
Yes
Amp Draw
12
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
31.2
CFM Rated @
100 PSI
Max PSI
116 PSI
Pump Type
Scroll Compressor
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
830 Pounds
Certification
ASME, OSHA, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
28 Inches
Product Height
48 Inches
Product Specs
+−
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
dBA
76
Magnetic Starter
Yes
Amp Draw
12
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM
31.2
CFM Rated @
100 PSI
Max PSI
116 PSI
Pump Type
Scroll Compressor
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Weight
830 Pounds
Certification
ASME, OSHA, UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
28 Inches
Product Height
48 Inches
