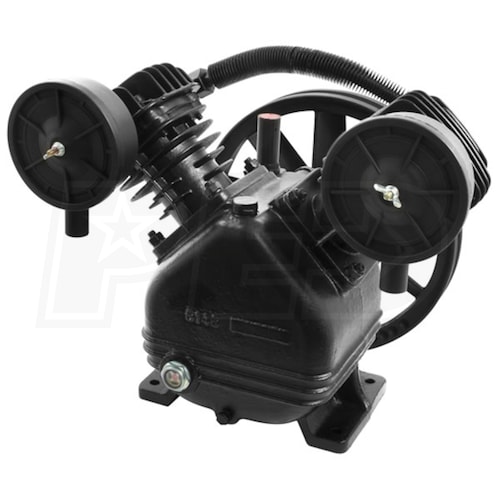

Powermate 1.6-HP Single-Stage V-Twin Replacement Air Compressor Pump (6.2 CFM @40 PSI)
Model:
040-0386RP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- 1.6 HP Cast Iron Single Stage V-Twin Replacement Pump
- Designed to provide maximum performance and efficiency
- Mounting pattern 6.77" W x 3.54" D (Depth)
- 4 bolting holes; 0.354 diameter per hole
- Produces 1.6 running horsepower
- Durable 2 Cylinder Pump
- Develops 6.2 CFM at 40 PSI & 5.3 CFM @ 90 PSI
- 2 large canister style air filter
- 1250 Maximum RPM
- "A" (width) single v-belt
- Delivers high performance & longevity

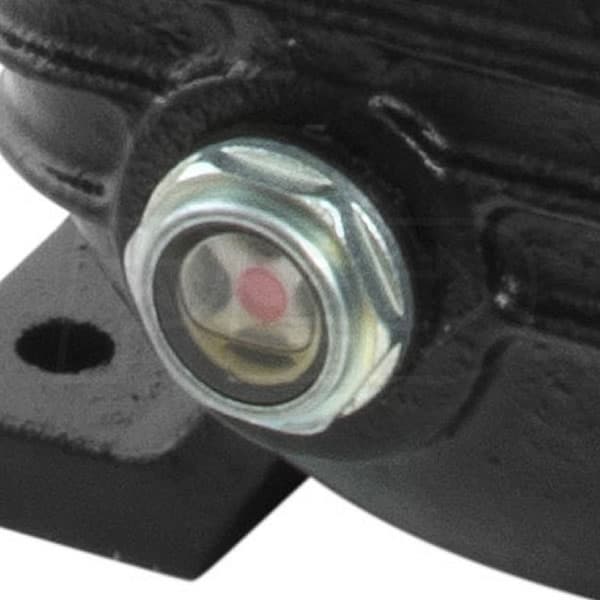

- Easy-To-Read Oil Level Sight Gauge
- Monitor pump oil level at a glance
- 11.35 oz. capacity oil reservoir (Pump oil not included)
- Automotive-Style Ball Bearings
- Offers reliable stainless steel reed valves
- Provide optimum performance & extended pump life
- Rugged Cast Iron Flywheel & Crankcase
- 10.50" Flyweel diameter
- Balanced for best performance & durability
- Compatibility
- Industrial Air, Magna Force, Powermate, Sanborn, Porter Cable and DeWalt
- Pump is not a direct replacement for any other brand
- 1-Year Residential Warranty / 90-Day Commercial Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
040-0386RP
General Information
Product Category
Air Compressor Parts
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.3
CFM Rated @
90 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Overview
Product Category
Air Compressor Parts
Weight
38 Pounds
Consumer Warranty
1 Year
Product Length
15.1 Inches
Product Width
10.33 Inches
Product Height
13.15 Inches
UPC
846212023648
