Puma 3-HP 60-Gallon (Belt Drive) Single-Stage Air Compressor (208/230V 1-Phase)

Model:

PK-6060V

Write A Review
$999.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

Puma 3-HP 60-Gallon (Belt Drive) Single-Stage Air Compressor (208/230V 1-Phase)
Puma 3-HP 60-Gallon (Belt Drive) Single-Stage Air Compressor (208/230V 1-Phase)
Model: PK-6060V
$999.00
Accessories
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Single Stage 1-Phase

CFM

11.3

Tank Size

60

    California residents see
    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
    For more information go to: www.p65Warnings.ca.gov

    Specifications

    PK-6060V
    specs product image PID-591
    General Information
    Product Category
    Air Compressor - Stationary
    Motor
    Voltage
    208-230 Volt AC
    Phase
    1-Phase
    Magnetic Starter Learn More
    Magnetic Starter
    The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
    No
    Amp Draw
    16.6
    Recommended Breaker
    30 Amp Breaker
    Engine
    HP
    3
    Pump
    CFM Learn More
    CFM
    Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
    11.3
    CFM Rated @
    90 PSI
    Pump Material
    Solid Cast Iron
    Max PSI Learn More
    Max PSI
    PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
    135 PSI
    Oil Sight Glass
    Yes
    Pump Type
    Single-Stage
    After Cooler Learn More
    After Cooler
    An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
    No
    Pump Drive
    Belt Drive
    Oil Type
    Oil Lubricated
    Oil System
    Splash Lubricated
    Pump Low Oil Shut-off Learn More
    Pump Low Oil Shut-off
    Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
    No
    Tank
    Tank Size
    60 Gallons
    Tank Outlet
    1/2 Inch
    Electronic Drain Valve Learn More
    Electronic Drain Valve
    The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
    No
    Tank Orientation
    Vertical
    Filter
    Regulator
    No
    Accessories
    Pressure Gauge
    Yes
    Air Dryer
    No
    Overview
    Product Category
    Air Compressor - Stationary
    Weight
    305 Pounds
    Certification
    ASME
    Consumer Warranty
    1 Year
    Product Length
    31 Inches
    Product Width
    29 Inches
    Product Height
    71 Inches
    Power Type
    Electric
    UPC
    0636084260612
    Additional Model Numbers

    PK6060V, PK-6060V

    Reviews

    (142)
    Puma PK-6060V Reviews & Ratings

    Product Q&A

    (4)
    Expert avatar photo
    Product Questions Answered by Melissa, the Air Compressor Expert
    Can I use 30 weight non-detergent motor oil or Powermate Px P018-0084SP 100% Full Synthetic Air Compressor Oil in this compressor?
    David B.
    from Maryland
    November 05, 2019
    What type of oil is recommended, and how much oil is needed when I change the oil?
    Joseph P.
    from Pennsylvania
    September 14, 2019
    What is the duty cycle for the pk6060v model?
    Tim
    from California
    June 02, 2016
    Hi steve can I use sch 40 pvc pipe to feed air from the compressor to the wall outlets or do I need to use copper or galv pipe?
    Frank Kirk
    from Washington
    April 18, 2014

    How-To Articles

    How to Pick the Perfect Single-Stage Compressor
    How to Pick the Perfect Single-Stage Compressor
    Single-stage air compressors are a great entryway into the world of pneumatic ai...
    How To Quickly Improve Your Gas Mileage
    How To Quickly Improve Your Gas Mileage
    You don't have to be a rocket scientist to figure out properly inflated tires w...
    Modern Air Compressors for Modern Dentistry
    Modern Air Compressors for Modern Dentistry
    It's difficult to earn a patient's trust. After years of investing in your prac...
    Air Compressors How-To Library
    Air Compressors How-To Library
    Articles, Tips and Buying Guides from Our Experts

    Manuals


    Media Gallery

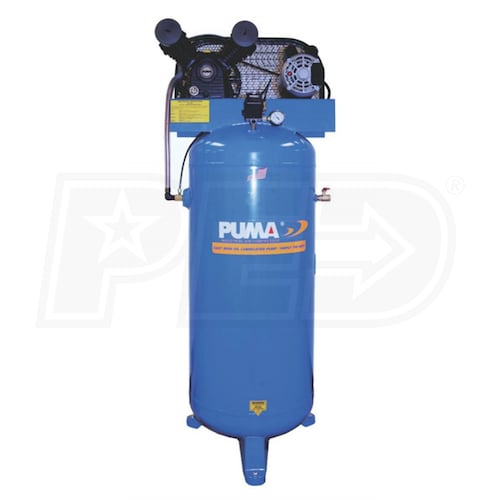

    Puma 3-HP 60-Gallon (Belt Drive) Single-Stage Air Compressor (208/230V 1-Phase)
    Puma PK-6060V

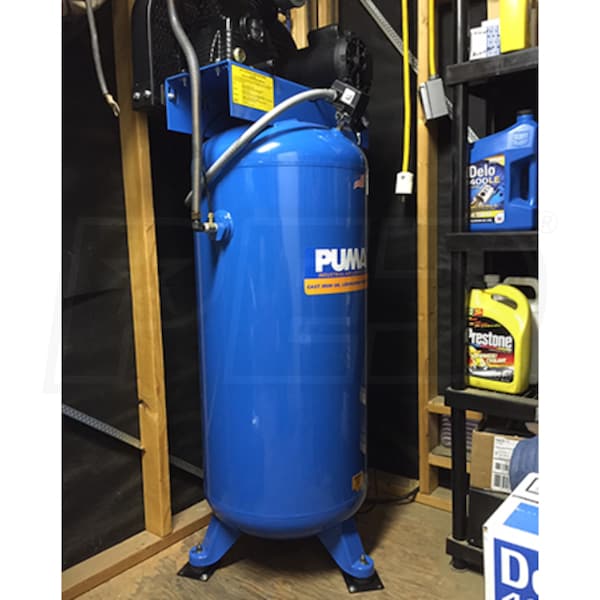

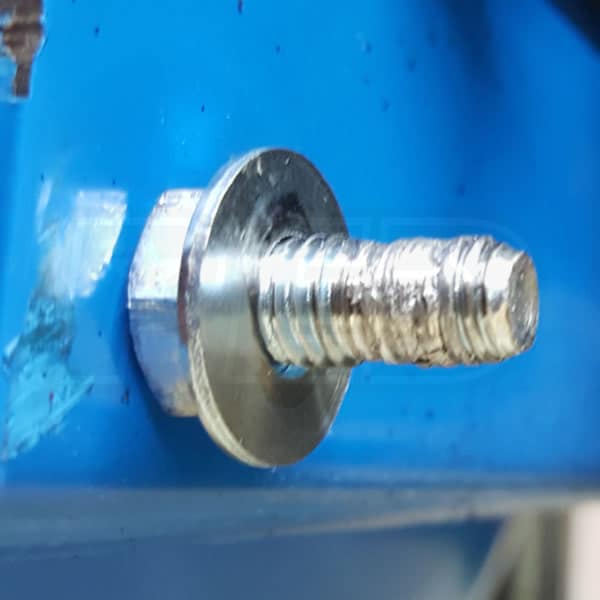

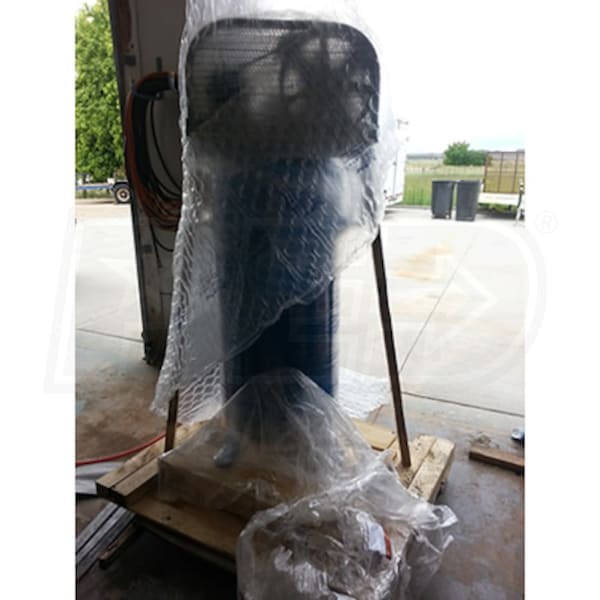

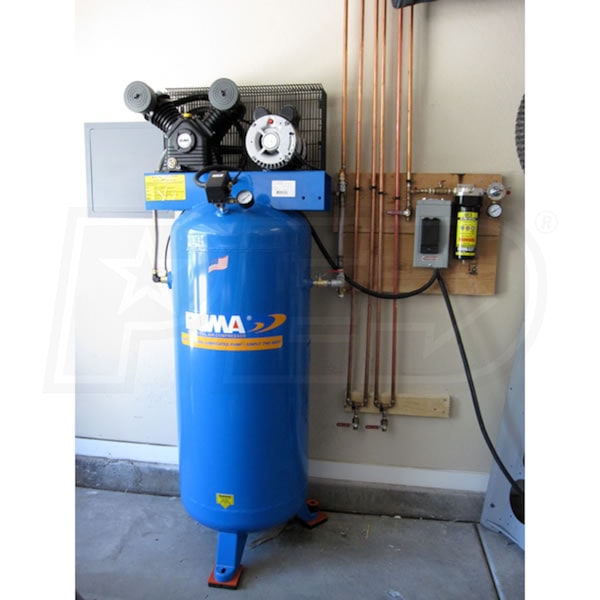

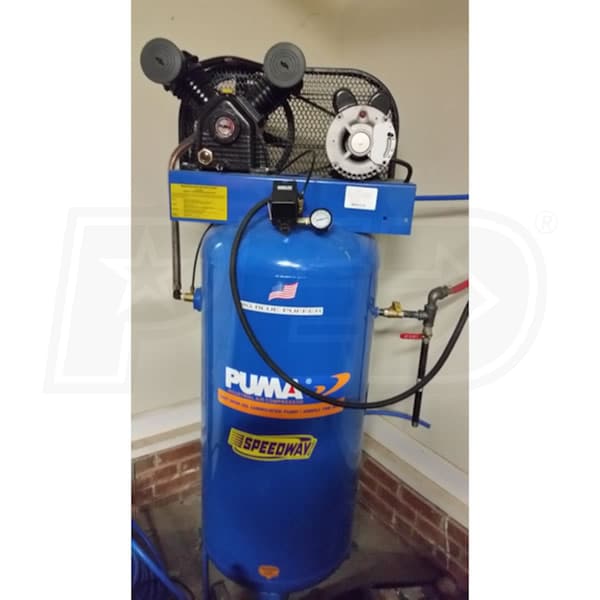

    Customer Review Images
