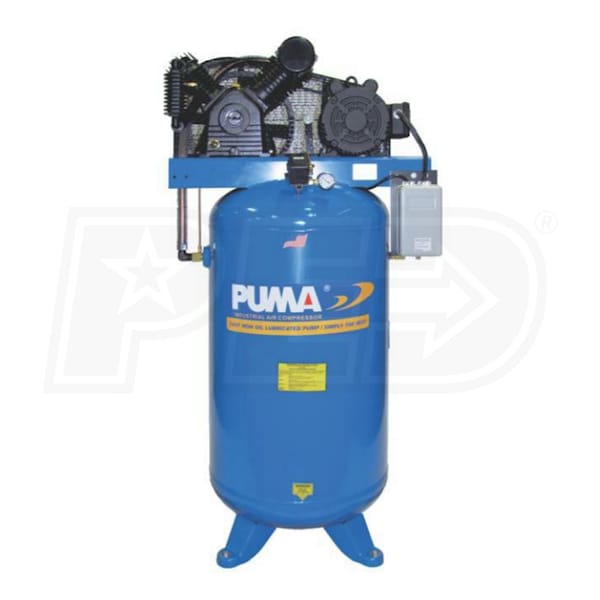

Puma 5-HP 80-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
Model: TN5080VM
4.6 out of 54.6 out of 54.6 out of 54.6 out of 54.6 out of 5
Number of Reviews(5)
Write a Review
$1,649.99
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping to60601
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - Free Lift Gate Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
FREE
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Add an Extended Warranty
Excludes CA
Share
  • Product Description
  • 5
    Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Consumer
Style
Two Stage 1-Phase
CFM
18
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
18 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
  • Heavy Duty Belt Drive Compressor
  • Steady, powerful air can run multiple tools at once
  • Oil Lubricated V-Type Pump
  • Runs cooler, works longer with less vibration
  • Factory Mounted Magnetic Starter
  • Protects your compressor from being overloaded
  • Two-Stage Pump
  • Produces higher CFM more efficiently, with less heat
  • Develops 18 CFM at 90 PSI; 16.5 CFM at 175 PSI
  • Versatile
  • Excellent choice for commercial & light industrial applications
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
18
CFM Rated @
90 PSI
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
550 Pounds
Consumer Warranty
1 Year
Product Length
40 Inches
Product Width
32 Inches
Product Height
72 Inches
Power Type
Electric
UPC
0636084029110
Grade
Consumer
Style
Two Stage 1-Phase
CFM
18
CFM Rated @ 90 PSI
Tank Size
80
Gallons
Grade
Consumer
CFM
18 CFM Rated @ 90 PSI
Tank Size
80 Gallons
Features
Features
  • Heavy Duty Belt Drive Compressor
  • Steady, powerful air can run multiple tools at once
  • Oil Lubricated V-Type Pump
  • Runs cooler, works longer with less vibration
  • Factory Mounted Magnetic Starter
  • Protects your compressor from being overloaded
  • Two-Stage Pump
  • Produces higher CFM more efficiently, with less heat
  • Develops 18 CFM at 90 PSI; 16.5 CFM at 175 PSI
  • Versatile
  • Excellent choice for commercial & light industrial applications
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
18
CFM Rated @
90 PSI
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
550 Pounds
Consumer Warranty
1 Year
Product Length
40 Inches
Product Width
32 Inches
Product Height
72 Inches
Power Type
Electric
UPC
0636084029110
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
18
CFM Rated @
90 PSI
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Weight
550 Pounds
Consumer Warranty
1 Year
Product Length
40 Inches
Product Width
32 Inches
Product Height
72 Inches
Power Type
Electric
UPC
0636084029110
