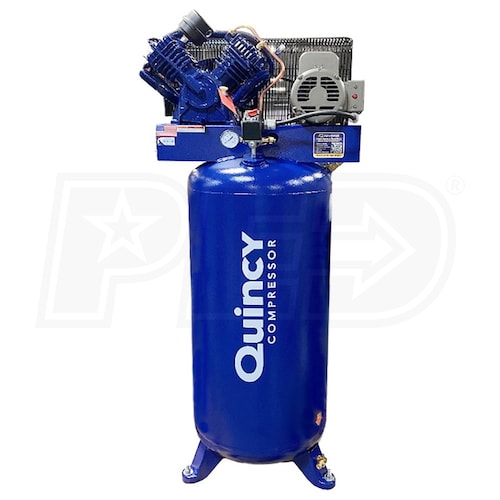

Quincy QT-54 Pro 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase)

Quincy QT-54 Pro 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase)
Our Price
Compare Prices
Shipping Info
Model: 2V41C60VC
Recommended
(Based on expert analysis, manufacturer ratings and customer reviews)
4.7 out of 54.7 out of 54.7 out of 54.7 out of 54.7 out of 5
Number of Reviews (378)
Write A Review
$1,299.00

Factory-Direct
Ships in 2-3 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Shipping Crate Icon
Free Shipping
Add-Ons
+$75.00
Factory-Direct
Ships in 2-3 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • 378
    Reviews
  • 12
    Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
Two Stage 1-Phase
CFM
15.2
CFM Rated @ 175 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
15.2 CFM Rated @ 175 PSI
Tank Size
60 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
  • Engineered for efficiency and lower operating costs
  • Produces more compressed air at a lower horsepower
  • Runs at a slower RPM, runs cooler and cost less to operate
  • High Performance Cast Iron QT-54 Belt Drive Pump
  • Industry-leading 50,000+ hour pump life
  • Aluminum head for strength and optimum heat dissipation
  • Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
  • 4-Cylinder Cast-Iron Design
  • Cast-iron cylinders maintain rigid tolerances for high efficiency
  • Industrial-class bearings ensure extended piston life
  • Graphite cylinder and head gaskets for positive sealing and improved performance
  • High-Efficiency Finned Tube Intercooler
  • Provides maximum cooling & increased valve life
  • Eliminates carbon build up in the head and increases valve life
  • 2-piece connecting rods for less moving parts & minimized downtime
  • Low Oil Pump Temperature Protection
  • Extra-capacity oil reservoir assures low oil temperature
  • Cast-iron construction for dependability
  • Large Balanced Cast Iron Fly Wheel
  • Smoother operation, angled for maximum cooling
  • Offers better energy efficiency and durability
  • Balanced counter-weighted crankshaft assures smooth, trouble-free operation
  • Heavy-Duty Industrial Motor
  • Capacitor start motor with built-in thermal overload
  • UL & CSA approval on all electrical components
  • 60-Gallon ASME Certified Air Tank & Pressure Relief Valves
  • Manual drain for routine draining and rust prevention
  • Vertical tank saves space, provides easy access
  • 1-Year Factory Warranty - Extends To 3-Year “No Bull” Warranty
  • Must Include purchase of EWK-2 Maintenance Kit at time of purchase
  • Unit must be registered at www.quincycompressor.com
  • Download the Warranty page under the Specs tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020039800 Quincy Model #: 2V41C60VC
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
24
Recommended Breaker
50 Amp Breaker
Engine
HP
5
Pump
CFM
15.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
475 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
29 Inches
Product Width
21 Inches
Product Height
64 Inches
Power Type
Electric
UPC
791326101846
Grade
Commercial
Style
Two Stage 1-Phase
CFM
15.2
CFM Rated @ 175 PSI
Tank Size
60
Gallons
Grade
Commercial
CFM
15.2 CFM Rated @ 175 PSI
Tank Size
60 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
  • Engineered for efficiency and lower operating costs
  • Produces more compressed air at a lower horsepower
  • Runs at a slower RPM, runs cooler and cost less to operate
  • High Performance Cast Iron QT-54 Belt Drive Pump
  • Industry-leading 50,000+ hour pump life
  • Aluminum head for strength and optimum heat dissipation
  • Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
  • 4-Cylinder Cast-Iron Design
  • Cast-iron cylinders maintain rigid tolerances for high efficiency
  • Industrial-class bearings ensure extended piston life
  • Graphite cylinder and head gaskets for positive sealing and improved performance
  • High-Efficiency Finned Tube Intercooler
  • Provides maximum cooling & increased valve life
  • Eliminates carbon build up in the head and increases valve life
  • 2-piece connecting rods for less moving parts & minimized downtime
  • Low Oil Pump Temperature Protection
  • Extra-capacity oil reservoir assures low oil temperature
  • Cast-iron construction for dependability
  • Large Balanced Cast Iron Fly Wheel
  • Smoother operation, angled for maximum cooling
  • Offers better energy efficiency and durability
  • Balanced counter-weighted crankshaft assures smooth, trouble-free operation
  • Heavy-Duty Industrial Motor
  • Capacitor start motor with built-in thermal overload
  • UL & CSA approval on all electrical components
  • 60-Gallon ASME Certified Air Tank & Pressure Relief Valves
  • Manual drain for routine draining and rust prevention
  • Vertical tank saves space, provides easy access
  • 1-Year Factory Warranty - Extends To 3-Year “No Bull” Warranty
  • Must Include purchase of EWK-2 Maintenance Kit at time of purchase
  • Unit must be registered at www.quincycompressor.com
  • Download the Warranty page under the Specs tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020039800 Quincy Model #: 2V41C60VC
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
24
Recommended Breaker
50 Amp Breaker
Engine
HP
5
Pump
CFM
15.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
475 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
29 Inches
Product Width
21 Inches
Product Height
64 Inches
Power Type
Electric
UPC
791326101846
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
No
Amp Draw
24
Recommended Breaker
50 Amp Breaker
Engine
HP
5
Pump
CFM
15.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Weight
475 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
29 Inches
Product Width
21 Inches
Product Height
64 Inches
Power Type
Electric
UPC
791326101846
Reviews
(378)
+
Quincy 2V41C60VC Reviews & Ratings
92% of Reviewers Recommend This Product
Product Q&A
(12)
+
Search Product Q&A's Answered by Joshua. the Air Compressor Expert
icon-social-fb1
+
Where is this compressor made? If it is not made in the USA, do you have any compressors that are?
Michael H.
from Illinois
April 10, 2020
Answer
Quincy is a USA-made compressor along with the brand Jenny being a USA-made compressor.
Was this answer helpful?
Yes
Thumbs Up Icon
2
No
Thumbs Down Icon
0
+
Do you know what the CFM would be at 90 PSI?
Justin J.
from Massachusetts
March 26, 2020
Answer
I currently do not have those specifications. However, Quincy has supplied us with the CFM at 100 PSI which is 15.4. Therefore, it would not be much more than this at 90.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
+
What gauge wire is recommended for installation?
Patricia Z.
from Wisconsin
February 11, 2020
Answer
Quincy only provides us with the minimum wire gauge required, which is 10 gauge wire.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
+
Does this compressor have to be hard-wired or can it be plugged into a 220-volt plug?
Chris
from Texas
January 22, 2020
Answer
This compressor has to be hard-wired.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
+
What is the pump's RPM?
Keith A.
from Indiana
September 10, 2019
Answer
The pump RPM is 1310.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
How quiet is this compressor?
Kathy L.
from Nebraska
July 06, 2019
Answer
Most piston air compressors run at a minimum of 80 decibels. Most manufacturers do not supply us with the decibel ratings because of too many variables that come into play.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
+
What are the factory set cut in and cut out pressures for the pressure switch?
Michael W.
from Illinois
November 26, 2018
Answer
It turns off at 175 PSI and turns on at 135 PSI.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
+
Is the air compressor pressure vessel ASME Code stamped?
Mark M.
from Massachusetts
July 24, 2018
Answer
Yes it is.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
What is the rpm of the motor?
Frank
from Washington
June 10, 2018
Answer
The minimum RPM is 550 and the maximum is 1420.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
+
How do I disconnect the air compressor safely from the power supply?
Michelle
from New York
May 03, 2018
Answer
This compressor is hardwired to the power supply. You would need to cut power to that circuit and disconnect the wiring from the starter on the compressor.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
+
We have 208 volt single phase wiring in our shop -- the result of splitting 3-phase wiring. Will the 230 v. 5hp Quincy motors run properly on this voltage? Are the motors provided by Quincy single wound or double wound?
Marvin Fretwell
from Arizona
February 05, 2013
Answer
This compressor must have 230V single phase power. Running it on 208V will cause the motor to burn up/fail prematurely. A buck boost transformer can be installed by your electrician to convert 208V to 230V power.
Was this answer helpful?
Yes
Thumbs Up Icon
1
No
Thumbs Down Icon
0
+
Having read the reviews of both the Quincy and IR units I am preparing to purchase the Quincy. Looking at accessories I see the IR unit has a 1/2" installation kit, would that be a good addition to the Quincy unit as well. Also, what all is provided with the unit to get it up and running on arrival. Thanks.
Terry Martinson
from Iowa
October 31, 2011
Answer
Since this is a 230V unit your electrician will need to wire it into your power system.

It comes with a 2 year factory warranty, but if you register the unit with Quincy and use their Maintenance Kit every year you can extend your factory warranty to 5 years!

Here is a link to the Maintenance Kit for this unit: Quincy Maintenance Kit 015.

You may want to consider an air distribution system to make the most of your new compressor. The MaxLine system is meant for larger compressors and buildings; here is the link to take a look: RapidAir MaxLine Air System.
Was this answer helpful?
Yes
Thumbs Up Icon
0
No
Thumbs Down Icon
0
Recommended Accessories
+
Expert Recommended Accessories Hand Picked By Our Expert Joshua
icon-social-fb1
Required Accessories Add All Required
Optional Accessories
How-To Articles
+
Manuals
+


×
Quincy QT-54 Pro 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase)
Quincy 2V41C60VC
+
Reset View
Quincy 2V41C60VC
Quincy 2V41C60VC
Quincy 2V41C60VC
Quincy 2V41C60VC
Quincy 2V41C60VC
Quincy 2V41C60VC
Quincy 2V41C60VC
×
Customer Review Images
