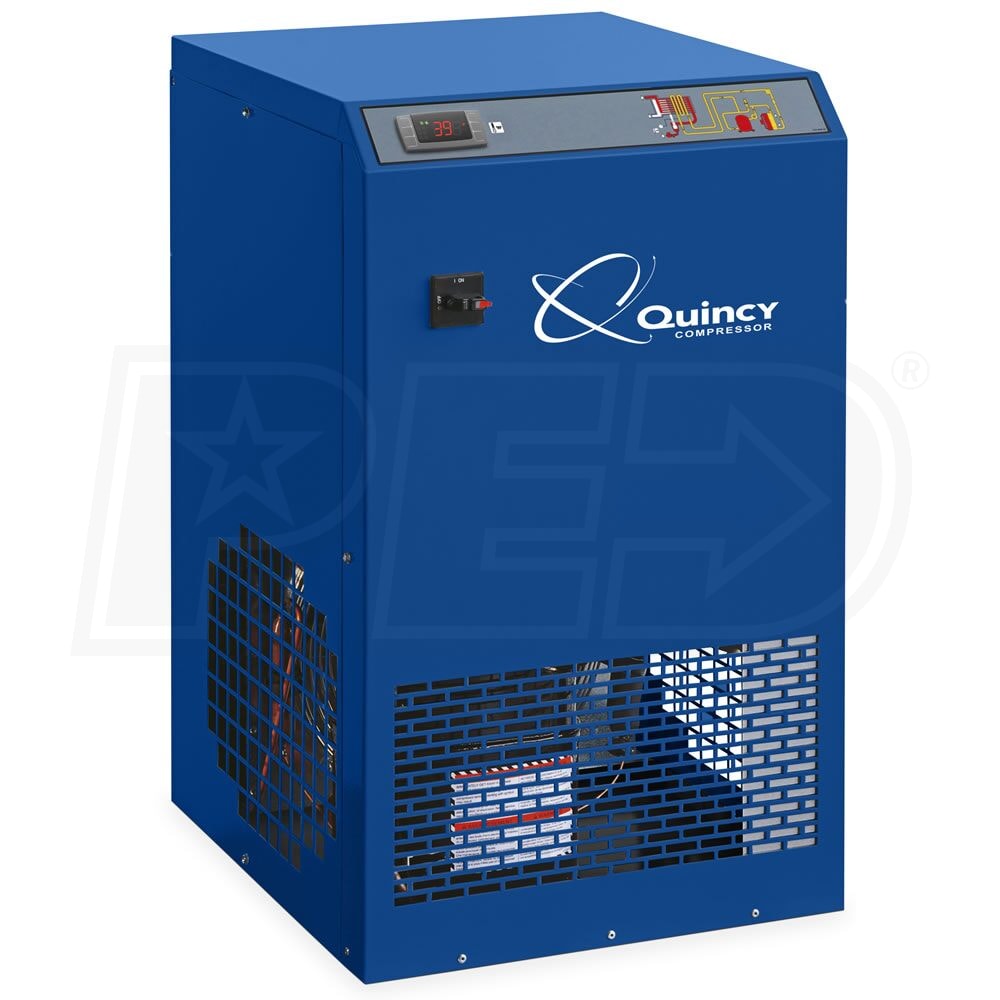

Quincy QPNC 127 1-1/2" Non-Cycling Refrigerated Air Dryer (127 CFM) (115V 1-Phase)
Model:
4102005368
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Refrigerated
Dryer Voltage
115V 1-Phase
Air Dryer CFM
127
- Refrigerated Non-Cycling Dryer
- Best suited for small systems with fairly constant loads
- Purifies compressed air by chilling to condense moisture
- Condensate is drained, carrying oil & dirt away from the air
- 2-Stage Heat Exchanger
- Maintains consistent dew points
- Freeze-ups prevented & optimum performance maintained
- Automatic Zero Loss Drain
- Prevents build up of oil, dirt & moisture in compressed air
- The most energy efficient drain
- Environmentally Safe Refrigerant (R410A)
- No CFCs or HCFCs; zero ozone depletion potential (ODP)
- Provides higher performance & efficiency potential

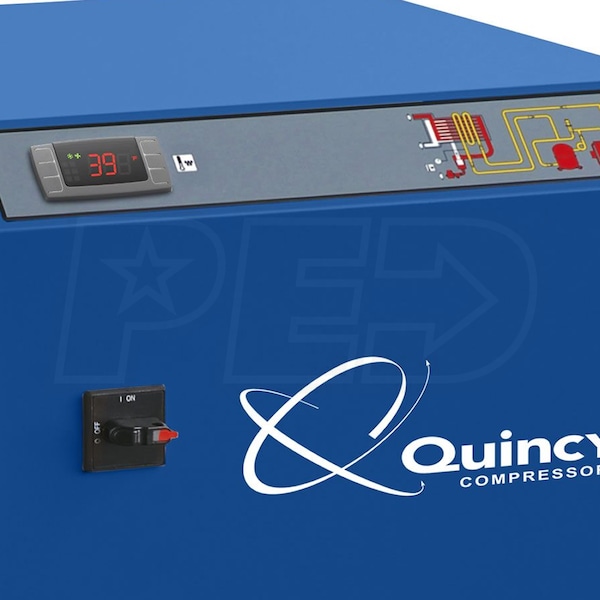

- Simple Control Panel
- Run & alarm lights, analyzer gauge, start/stop switch w/ lock out

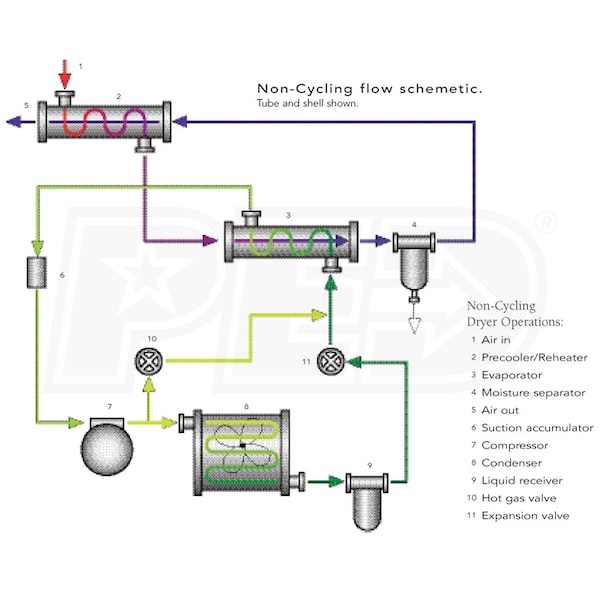

- Also shows a diagram of the system flow
- Versatile
- Handles 127 CFM at 100 PSI; 203 PSI maximum
- Uses 115V 1 phase power; 1-1/2" NPT-F connector in & out
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
4102005368
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
127
Max PSI
Max PSI
The most amount of PSI that be passed through a dryer
203
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
131
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
109
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1-1/2"
Outlet Fittings
1-1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Product Category
Air Compressor Accessories
Weight
143 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
22 Inches
Product Width
18 Inches
Product Height
31 Inches
Power Type
Electric
