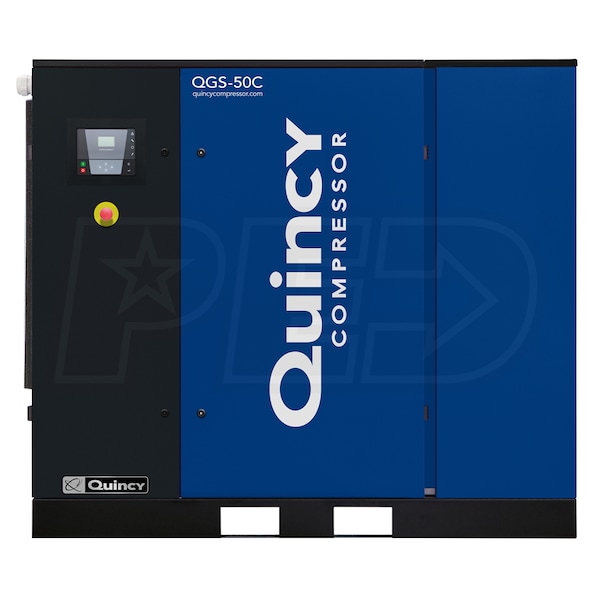

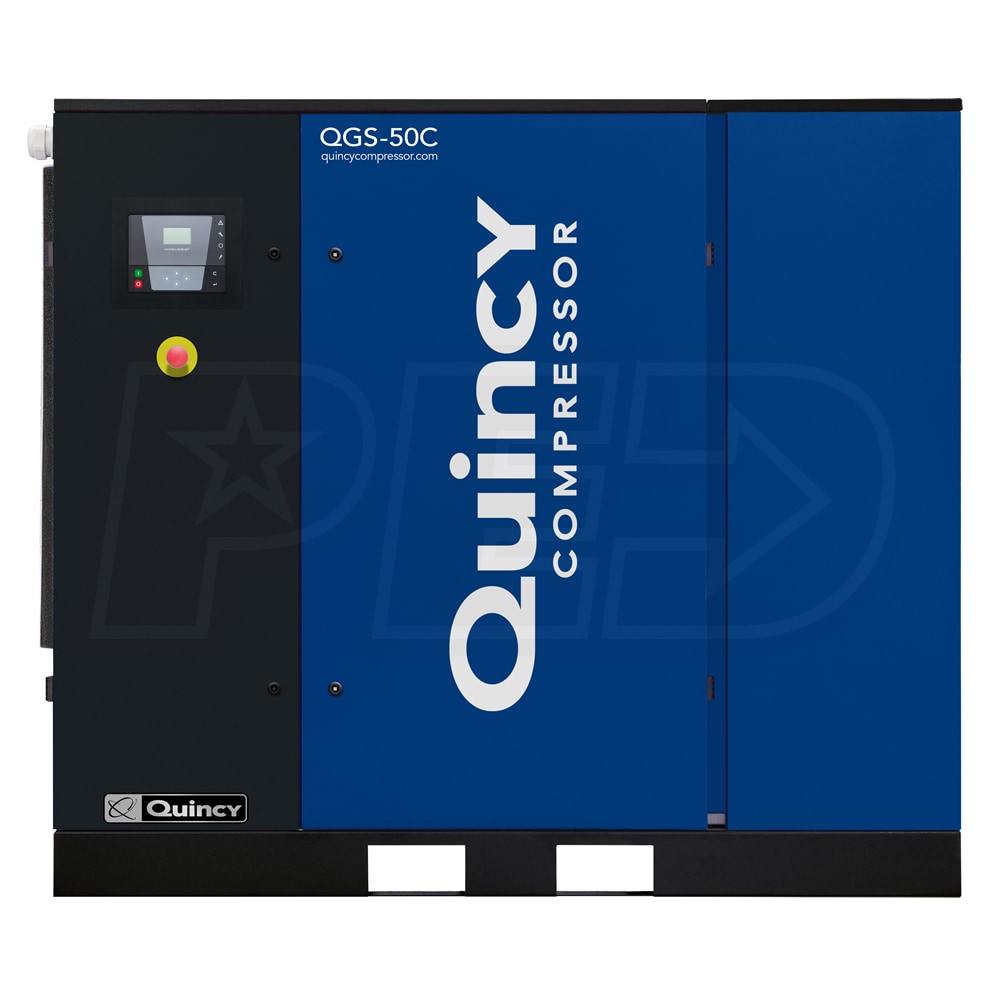

Quincy QGS 50-HP Tankless Rotary Screw Air Compressor w/ Dryer (230/460V 3-Phase)
Model:
4152016908
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
230/460 Volt AC
Phase
3-Phase
CFM
203.2
Tank Size
0
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Unit Is Too Large For Liftgate Service, Shipping Dock Or Forklift Required
- Quincy QGS Highly Efficient Gear-Driven Rotary Screw Compressor
- Reliable gears eliminate belt changes and reduce transmission loss
- Rated for 8,000 hours with premium synthetic lubrication; low oil carryover protects component
- Infologic2 Basic Controller
- Network up to six QGS 20 to 30 HP units
- Completely programmable auto-restart and remote start/stop
- Convenient Display Panel
- Includes auto run, general alarm and power-on LED's
- Pressure display, temperature and dewpoint display
- Motor start limit; max & min temperature default settings
- 100% Duty Cycle TEFC Motor
- Wye-Delta reduced voltage start for industrial applications
- Delivered in 460V-3; includes kit for 230V-3 wiring, must be installed by a licensed electrician
- Integrated Refrigerant Air Dryer
- Reduces corrosion and provides clean, dry air for your system
- Quiet Operation
- Full sound enclosure for extra low noise levels
- Rotary screw technology provides a quiet solution and greatly reduces vibration
- Increased Maintenance Simplicity
- Fast and easy out of box installation
- Hinged doors and detachable panels for quick access
- Constant view fluid monitoring and spin-on fluid filter simplifies maintenance
- Extended 3 Year Factory Warranty Available
- Must register with Quincy & use Quincy Maintenance Kits
- True Blue 5-Year Warranty with Quincy Authorized Start Up
- Covers airend, motor, separator reservoir, cooler/heat exchanger
- Quincy Part #: 4152016908 - Quincy Model #: QGS 50 C BMD-3
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
4152016908
General Information
Product Category
Air Compressor - Stationary
Engine
HP
50
Engine Low Oil Shut-off
Yes
Motor
Voltage
230/460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
69
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
203.2
CFM Rated @
125 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Gear Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
Yes
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1437 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
71.3 Inches
Product Width
32.7 Inches
Product Height
61.3 Inches
Power Type
Electric
