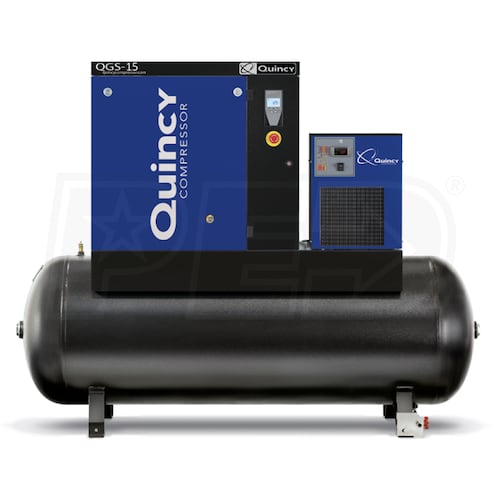

Quincy QGS 15-HP 120-Gallon Rotary Screw Compressor w/ Dryer (208/230/460V 3-Phase)
Quincy QGS 15-HP 120-Gallon Rotary Screw Compressor w/ Dryer (208/230/460V 3-Phase)
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
CFM
54.9
CFM Rated @ 125 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
54.9 CFM Rated @ 125 PSI
Tank Size
120 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Superior Compressed Air Turn-Key Performance
- Oil injected twin screw pump provides reliable, quiet power
- Integrated Refrigerated Air Dryer
- Condenses the air to remove airborne moisture, dirt, and oil
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Standard Quiet Enclosure
- Runs without the vibration & noise of piston compressors
- Ideal for most applications; 54.9 CFM at 125 PSI
- Premium Synthetic Lubrication
- Rated for 8,000 hours; low oil carryover protects tools
- Auto-Dual Operation
- Customize timed shut down settings for your operation
- Long Life V-Belt Drive
- Less maintenance, reliable operation
- TEFC Electric Motor
- 3-phase unit is capable of running on 208/230-460 voltage; must be wired on-site by licensed electrician
- (IP 55 wash down) Minimum operating temperature 36°F
- Extended 3 Year Factory Warranty Available
- Must register with Quincy & use Quincy Maintenance Kits
- True Blue 5-Year Warranty with Quincy Authorized Start Up
- Covers airend, motor, separator reservoir, cooler/heat exchanger
- Quincy Part #: 4152021984 - Quincy Model #: QGS 15 HPD-3
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Engine Low Oil Shut-off
Yes
Pump
CFM
54.9
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
890 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
76 Inches
Product Width
25 Inches
Product Height
58 Inches
Power Type
Electric
UPC
791326011862
Additional Model Numbers
4152021984, QGS 15 HPD-3
Grade
Style
CFM
54.9
CFM Rated @ 125 PSI
Tank Size
120
Gallons
Grade
Commercial
CFM
54.9 CFM Rated @ 125 PSI
Tank Size
120 Gallons
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Superior Compressed Air Turn-Key Performance
- Oil injected twin screw pump provides reliable, quiet power
- Integrated Refrigerated Air Dryer
- Condenses the air to remove airborne moisture, dirt, and oil
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Standard Quiet Enclosure
- Runs without the vibration & noise of piston compressors
- Ideal for most applications; 54.9 CFM at 125 PSI
- Premium Synthetic Lubrication
- Rated for 8,000 hours; low oil carryover protects tools
- Auto-Dual Operation
- Customize timed shut down settings for your operation
- Long Life V-Belt Drive
- Less maintenance, reliable operation
- TEFC Electric Motor
- 3-phase unit is capable of running on 208/230-460 voltage; must be wired on-site by licensed electrician
- (IP 55 wash down) Minimum operating temperature 36°F
- Extended 3 Year Factory Warranty Available
- Must register with Quincy & use Quincy Maintenance Kits
- True Blue 5-Year Warranty with Quincy Authorized Start Up
- Covers airend, motor, separator reservoir, cooler/heat exchanger
- Quincy Part #: 4152021984 - Quincy Model #: QGS 15 HPD-3
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Engine Low Oil Shut-off
Yes
Pump
CFM
54.9
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
890 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
76 Inches
Product Width
25 Inches
Product Height
58 Inches
Power Type
Electric
UPC
791326011862
Additional Model Numbers
4152021984, QGS 15 HPD-3
Product Specs
+−
Specifications
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Engine Low Oil Shut-off
Yes
Pump
CFM
54.9
CFM Rated @
125 PSI
Max PSI
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Yes
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Weight
890 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
76 Inches
Product Width
25 Inches
Product Height
58 Inches
Power Type
Electric
UPC
791326011862
Additional Model Numbers
4152021984, QGS 15 HPD-3
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Gabrielle, the Air Compressor Expert
+−
Where are these compressors made?
Don N.
from Illinois
December 17, 2019
Answer
These are made in Italy.
