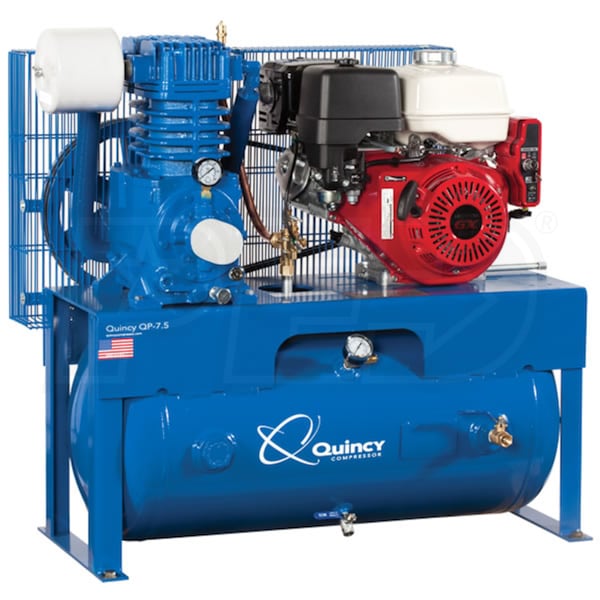

Quincy QP 13-HP 30-Gallon Pressure Lubricated Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Quincy QP 13-HP 30-Gallon Pressure Lubricated Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
+
Share This Product
-
Product Description
-
1Reviews
-
1Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade
Style
Engine Brand
CFM
23.6
CFM Rated @ 175 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
23.6 CFM Rated @ 175 PSI
Tank Size
30 Gallons
Features
Features
- Fully Pressure Lubricated 2-Stage Compressor
- Smooth, continuous operation delivers 23.6 CFM @ 175 PSI
- Pressurized oil means less wear on critical components
- Gerotor Positive Displacement Oil Pump
- Provides pressure lube to crankshaft, bearings, & rods
- Up to 15% longer life than splash-lubricated units
- 13-HP Honda GX Engine With Electric Start
- Perfect for service truck applications (battery & cable not included)
- Stainless Steel Reed Valves With Valve Bumpers
- Maximum strength & volumetric efficiency
- Graphite Cylinder & Head Gaskets
- Provide positive sealing integrity
- Electronically Balanced Fan-Type Cast Iron Flywheel
- Delivers powerful cooling to intercooler, cylinder, & heads
- Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
- Maintains rigid tolerances for high efficiency
- Reduces interstage temperature for max performance & durability
- One Year Factory Warranty On Compressor; 3 On Engine
- Quincy registration & kit listed under Specs tab extends compressor (not engine)
- Quincy Part #: 2020019200 - Quincy Model #: G313H30HCE
Specifications
Engine
HP
13
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
23.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Duty Cycle
100%
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Weight
515 Pounds
Certification
ASME, OSHA, UL, CSA, CRN
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
21 Inches
Product Height
40 Inches
Power Type
Gas
UPC
791326010896
Grade
Style
Engine Brand
CFM
23.6
CFM Rated @ 175 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
23.6 CFM Rated @ 175 PSI
Tank Size
30 Gallons
Features
Features
- Fully Pressure Lubricated 2-Stage Compressor
- Smooth, continuous operation delivers 23.6 CFM @ 175 PSI
- Pressurized oil means less wear on critical components
- Gerotor Positive Displacement Oil Pump
- Provides pressure lube to crankshaft, bearings, & rods
- Up to 15% longer life than splash-lubricated units
- 13-HP Honda GX Engine With Electric Start
- Perfect for service truck applications (battery & cable not included)
- Stainless Steel Reed Valves With Valve Bumpers
- Maximum strength & volumetric efficiency
- Graphite Cylinder & Head Gaskets
- Provide positive sealing integrity
- Electronically Balanced Fan-Type Cast Iron Flywheel
- Delivers powerful cooling to intercooler, cylinder, & heads
- Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
- Maintains rigid tolerances for high efficiency
- Reduces interstage temperature for max performance & durability
- One Year Factory Warranty On Compressor; 3 On Engine
- Quincy registration & kit listed under Specs tab extends compressor (not engine)
- Quincy Part #: 2020019200 - Quincy Model #: G313H30HCE
Specifications
Engine
HP
13
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
23.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Duty Cycle
100%
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Weight
515 Pounds
Certification
ASME, OSHA, UL, CSA, CRN
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
21 Inches
Product Height
40 Inches
Power Type
Gas
UPC
791326010896
Product Specs
+−
Specifications
Engine
HP
13
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
23.6
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Duty Cycle
100%
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
No
Overview
Weight
515 Pounds
Certification
ASME, OSHA, UL, CSA, CRN
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
42 Inches
Product Width
21 Inches
Product Height
40 Inches
Power Type
Gas
UPC
791326010896
Product Q&A
(1)
+−
Search Product Q&A's
Answered by Gabrielle, the Air Compressor Expert
+−
How wide is this unit (left side to right side)? My service truck is 48 1/2" - side to side.
Doug C.
from Maine
July 16, 2018
Answer
This unit measures 42" x 21" x 40".
