RapidAir FastPipe 3/4-Inch Compressed Air Aluminum Piping System 90-Foot Master Kit (3 Outlets)
Model: F28070
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Improved Compressed Air Piping Method
- Connects to any existing piping system; can be easily expanded or modified
- Conforms to ASME B31.1; fire resistant to flammability standard UL94HB; OSHA compliant
- Varied Applications
- Well suited to small shops, medium businesses, and industrial plants
- Working pressure up to 190 PSI; handles 0°F to 140°F temperatures; compatible with compressor lubricants
- Can be bent to a maximum of 15° to conform around minor obstacles; check local building codes before installation
- Alloy 6063-T5 Aluminum Piping With Compression-Style Fittings
- Compression fittings simplify installation- no glueing, threading or soldering
- Aluminum piping is easy to cut and lift; installs in less time than some traditional methods
- No corrosion in pipe or fittings means a longer tool life; cools hot compressed air quickly for better filter performance
- Energy Efficient Powdercoat Outside; Clear Anodize Inside
- Smooth inner wall & free-flowing fittings lower compressed air costs; sealed connections minimize leakage
- When using FastPipe in direct sunlight, cover or paint the polymer fittings to protect from UV (pipe can be exposed)

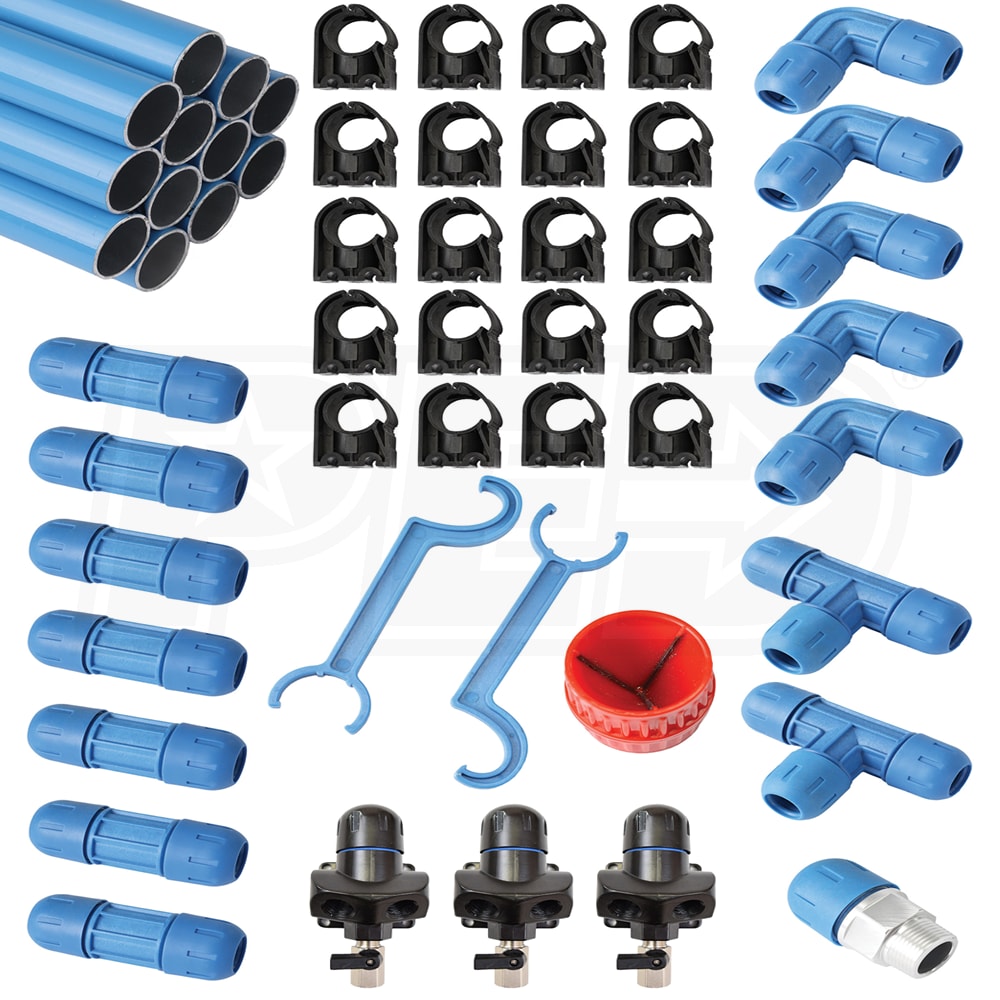

- 3/4-Inch FastPipe 90-Foot Master Kit Includes:
- 12 pieces of 3/4-inch pipe, each 7' 6" long for a total of 90-feet, with 10 pipe clips
- 7 union connectors, 5 elbows, 2 tees, 35 wall outlets with two 1/2" female NPT outlet ports
- 1 threaded nipple FastPipe x 3/4" male NPT connector; 1 tool set with 2 spanner wrenches & a deburring tool
- Other installation fittings & accessories sold separately (see PDF brochure under the Specs tab)
Specifications
Overview
Weight
32 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
90 Inches
Product Width
17 Inches
Product Height
15 Inches
UPC
094084280700
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Improved Compressed Air Piping Method
- Connects to any existing piping system; can be easily expanded or modified
- Conforms to ASME B31.1; fire resistant to flammability standard UL94HB; OSHA compliant
- Varied Applications
- Well suited to small shops, medium businesses, and industrial plants
- Working pressure up to 190 PSI; handles 0°F to 140°F temperatures; compatible with compressor lubricants
- Can be bent to a maximum of 15° to conform around minor obstacles; check local building codes before installation
- Alloy 6063-T5 Aluminum Piping With Compression-Style Fittings
- Compression fittings simplify installation- no glueing, threading or soldering
- Aluminum piping is easy to cut and lift; installs in less time than some traditional methods
- No corrosion in pipe or fittings means a longer tool life; cools hot compressed air quickly for better filter performance
- Energy Efficient Powdercoat Outside; Clear Anodize Inside
- Smooth inner wall & free-flowing fittings lower compressed air costs; sealed connections minimize leakage
- When using FastPipe in direct sunlight, cover or paint the polymer fittings to protect from UV (pipe can be exposed)
- 3/4-Inch FastPipe 90-Foot Master Kit Includes:
- 12 pieces of 3/4-inch pipe, each 7' 6" long for a total of 90-feet, with 10 pipe clips
- 7 union connectors, 5 elbows, 2 tees, 35 wall outlets with two 1/2" female NPT outlet ports
- 1 threaded nipple FastPipe x 3/4" male NPT connector; 1 tool set with 2 spanner wrenches & a deburring tool
- Other installation fittings & accessories sold separately (see PDF brochure under the Specs tab)
Specifications
Overview
Weight
32 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
90 Inches
Product Width
17 Inches
Product Height
15 Inches
UPC
094084280700
Product Specs
+−
Specifications
Overview
Weight
32 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
90 Inches
Product Width
17 Inches
Product Height
15 Inches
UPC
094084280700
