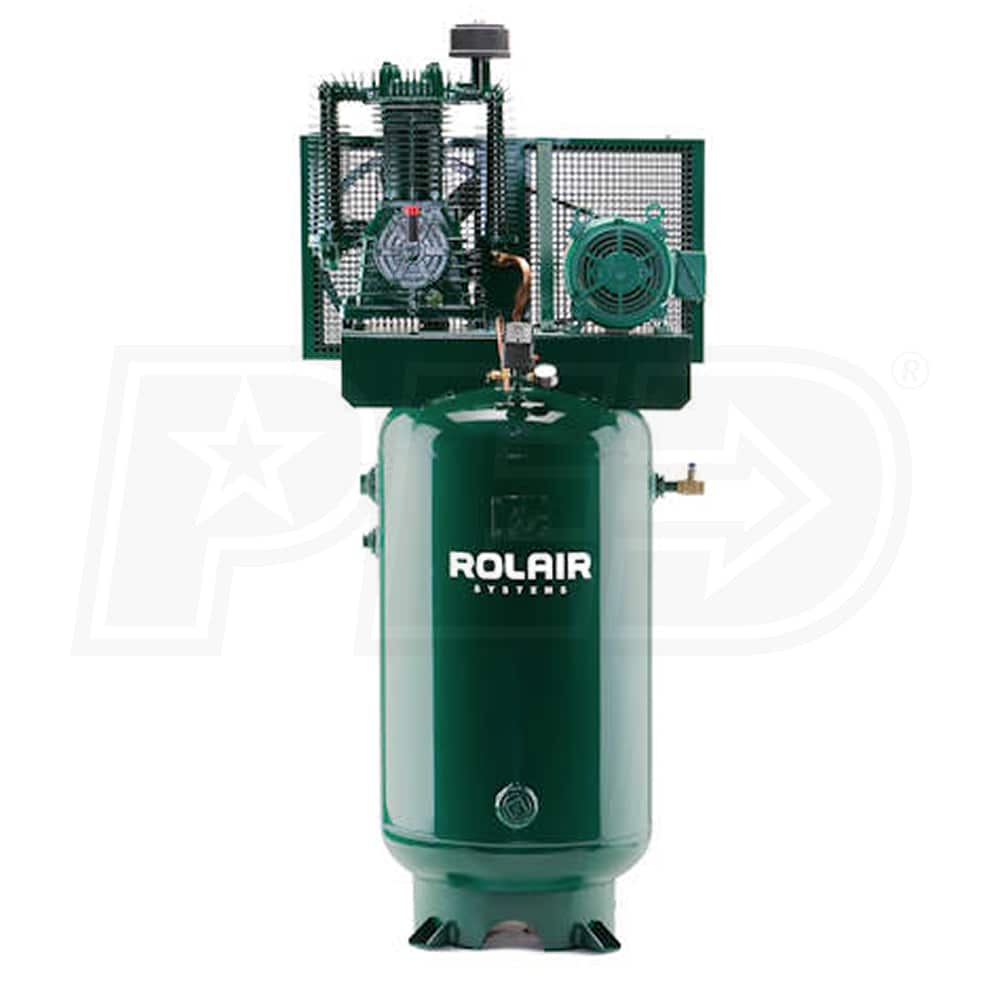

Rolair 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model: V75180K30B-19
+
Share This Product
-
Product Description
-
2Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
24.8
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
24.8 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
- 7.5 HP Air Compressor Runs On 230V 1-Phase Power
- Easy to wire into your shop or garage

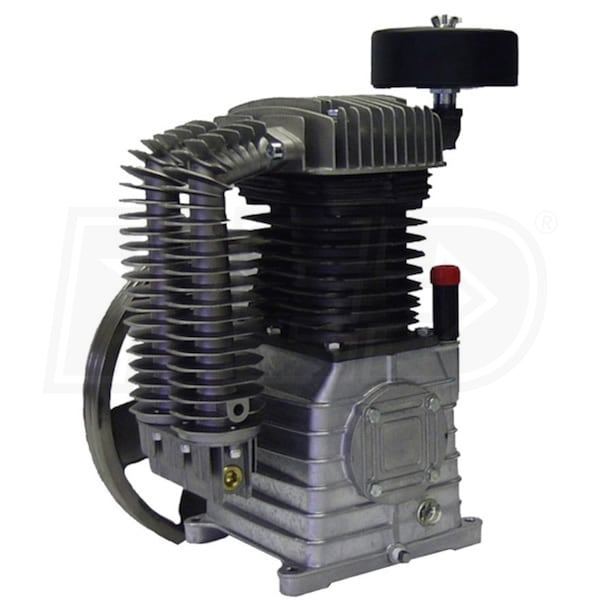

- Two Stage, 1250 RPM Splash Lubricated Pump
- Two stage power for high demand applications
- Cast iron cylinders for durability
- Aluminum head & crankcase for faster heat dissipation
- Swedish Lammelar Reed Valves
- High quality for best performance & reliability
- Start/Stop Operation
- Pressure switch can be set for 145-175 PSI settings
- Automatic Unloading Device
- Load-less starts save wear & tear on your unit
- Easy-To-Read Pressure Gauge
- Marked 0-300 PSI in 5lb. graduations
- Totally Enclosed Multiple V-Belt Steel Belt Guard
- Protects the belt drive, and you
- Intake Filter/Silencer
- Replaceable element reduces noise
- Magnetic Starter Included On This Model
- No need to buy an additional starter
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
24.8
CFM Rated @
175 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
530 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
30 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
UPC
662865001280
Grade

Style

CFM
24.8
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
24.8 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
- 7.5 HP Air Compressor Runs On 230V 1-Phase Power
- Easy to wire into your shop or garage
- Two Stage, 1250 RPM Splash Lubricated Pump
- Two stage power for high demand applications
- Cast iron cylinders for durability
- Aluminum head & crankcase for faster heat dissipation
- Swedish Lammelar Reed Valves
- High quality for best performance & reliability
- Start/Stop Operation
- Pressure switch can be set for 145-175 PSI settings
- Automatic Unloading Device
- Load-less starts save wear & tear on your unit
- Easy-To-Read Pressure Gauge
- Marked 0-300 PSI in 5lb. graduations
- Totally Enclosed Multiple V-Belt Steel Belt Guard
- Protects the belt drive, and you
- Intake Filter/Silencer
- Replaceable element reduces noise
- Magnetic Starter Included On This Model
- No need to buy an additional starter
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
24.8
CFM Rated @
175 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
530 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
30 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
UPC
662865001280
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
24.8
CFM Rated @
175 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
530 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
30 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
UPC
662865001280
