Updated AC-B Series F.R.L.
•Element & bowl are now 1 piece for easier maintenance
•Interchangeable with the existing modular AC line

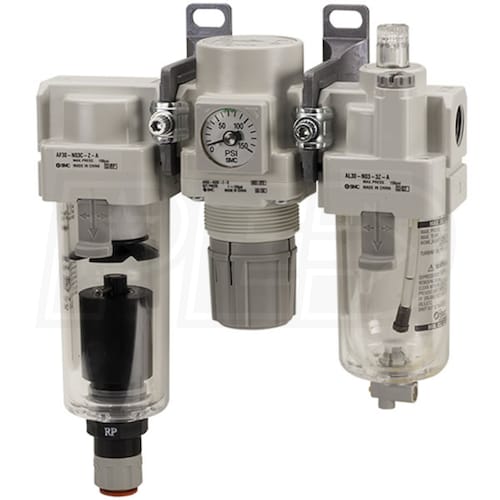

Air Filter, Regulator & Lubricator Unit
•Compact & effective air treatment with improved installation brackets
•Energy saving with high flow rate for efficient operation

Transparent Polycarbonate Bowl Guard
•Completely protects the element from the environment
•Check levels at a glance with 360° view of the contents

Square Embedded Pressure Gauge
•Easy to read PSI markings with limit indicator simplifies operation
•Displays up to 125 PSI (145 PSI maximum pressure)

Urban White Modular Design
•Maintains a clean, modern look

3/4" NPT Threads
•Integrates easily with your current system
•Quickly add or remove components using interface brackets

Normally Closed (N.C.) Auto Drain & Drain Cock
•Allows filtrate to be quickly & easily drained

Overview

Weight

9.2 Pounds

Product Length

12 Inches

Product Width

5 Inches

Product Height

11 Inches

Consumer Warranty

1 Year

Commercial Warranty

1 Year

Model

AC50-N06CE-3Z-B

Download Documents

Product Manual

Subject: Case Record Type Type Case Reason Store ID: Product ID: Data Category: Brand Category:

*Ask Steve about the SMC AC50-N06CE-3Z-B. Sorry, no repair questions:

*Name:

*State:

*Email:

Receive Weekly How-To Tips & Specials

*Required Field Submit

1 Question

Q: Can this be taken apart & used as individual components?
by Jerry from Pennsylvania on November 17, 2015

A: Yes, it can. The Features for this Combo unit say "Quickly add or remove components using interface brackets",
by Steve, Product Expert

SMC AC50-N06CE-3Z-B Reviews & Ratings

Write A Review

1 Review

Sort by

Air Compressor Expert

Steve Robbins
Product Expert

234 Reviews

3569 Helpful Votes

The SMC 3/4" Filter Regulator Lubricator Air Preparation Combo is designed for air compressors rated from 0-125 PSI.

It has a transparent polycarbonate bowl which makes checking the water & oil levels easy.

The filter stage removes particulates down to 5 microns in size and up to 80% of water condensate from your compressed air.

Use with air compressors that have a 3/4" NPT tank outlet.
