Features
Style
Refrigerated
Dryer Voltage
115V 1-Phase
Air Dryer CFM
10
- Keep Water, Oil, And Dirt Out Of Your Compressed Air
- Less corrosion of pipes and tools means less downtime
- Avoid splotches & stains on your projects with proper filtration
- Compact And Efficient
- 10 CFM at 37°F PDP; high performance heat exchanger
- Environmentally Safe
- Uses R134a refrigerant to prevent damage to the ozone layer; UL and CSA listed
- Easy To Install
- Uses 115v single phase power; no special wiring needed
- Simple control system with convenient evaporator gauge
- 3/8" connections; inlet air temperature of 100°F (37.8°C)
- 1 Year Factory Warranty
- Using an AFF Series Line Filter in front of your dryer extends warranty to 2 years, with 5 year coverage on the heat exchanger
Specifications
IDFB3E-11N

General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
10
Max PSI
Max PSI
The most amount of PSI that be passed through a dryer
150
Max Inlet Temp. Rating
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
122
Max Ambient Temp. Rating
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
104
Non-Cycling
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
3/8"
Outlet Fittings
3/8"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Product Category
Air Compressor Accessories
Weight
40 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
16.1 Inches
Product Width
8.9 Inches
Product Height
18.6 Inches
Power Type
Electric
Reviews
(1)
SMC IDFB3E-11N Reviews & Ratings

SMC dryer
By Niall DaltonBrown
Miami, Florida
Purchased 11/30/2010 |
Review Posted 01/13/2011
"Uses 115v single phase power no special wiring needed"
Not quite accurate. There was no power cord at all, so you have to make up one or have some one
make up your power cord for you.
ACD RESPONDS: Thank you for letting us know- we'll update the web site right away!
Not quite accurate. There was no power cord at all, so you have to make up one or have some one
make up your power cord for you.
ACD RESPONDS: Thank you for letting us know- we'll update the web site right away!
Was this review helpful?
Rating Breakdown
3/5
3/5
3/5
3/5
How-To Articles
How to Pick the Perfect Compressed Air Dryer
Ever heard the saying an ounce of prevention is worth a pound of cure? Well, if...
What an Air Line Filter is and How it Works
Without an air line filter - water, oil, and dirt can cause major damage to pne...
How to Pick the Perfect Refrigerated Air Compressor Dryer
Refrigerated Dryers use a cooling system similar to that of a home air conditio...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.

Media Gallery

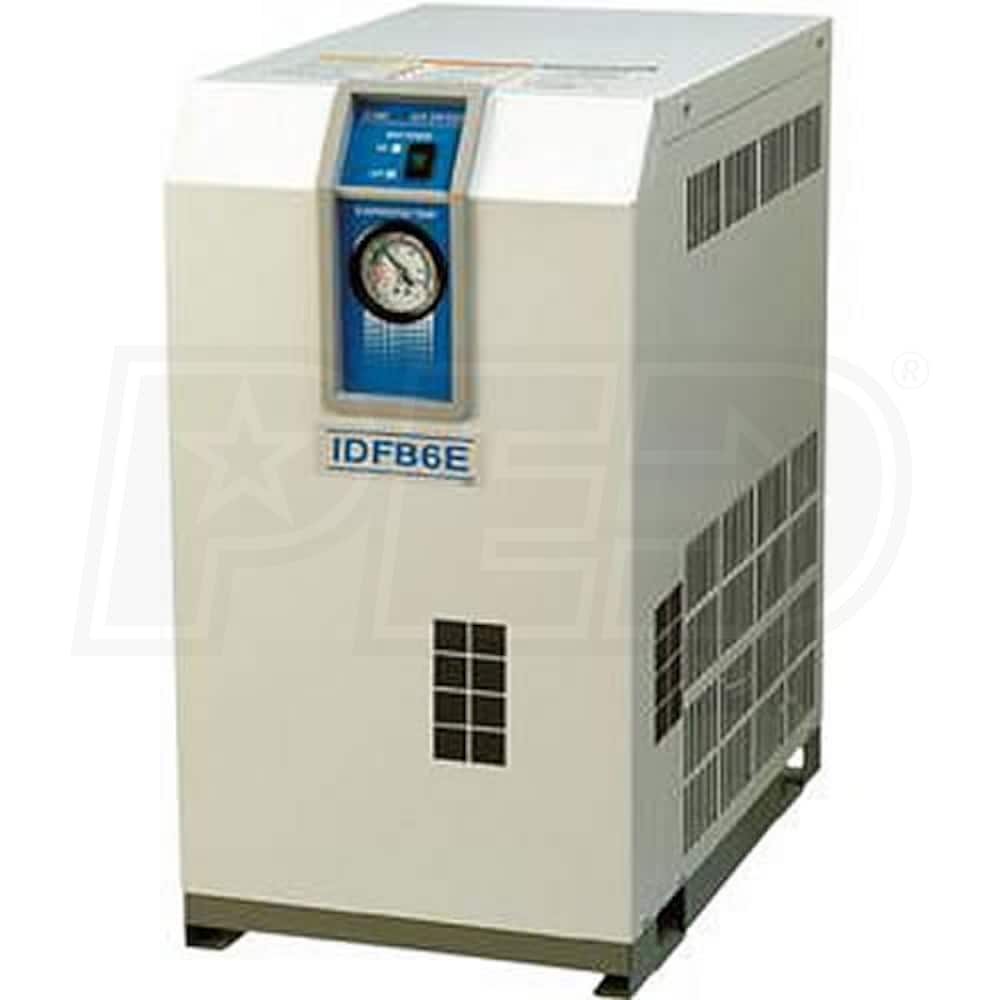

SMC 3/8" Commercial Refrigerated Air Dryer (10 CFM)
