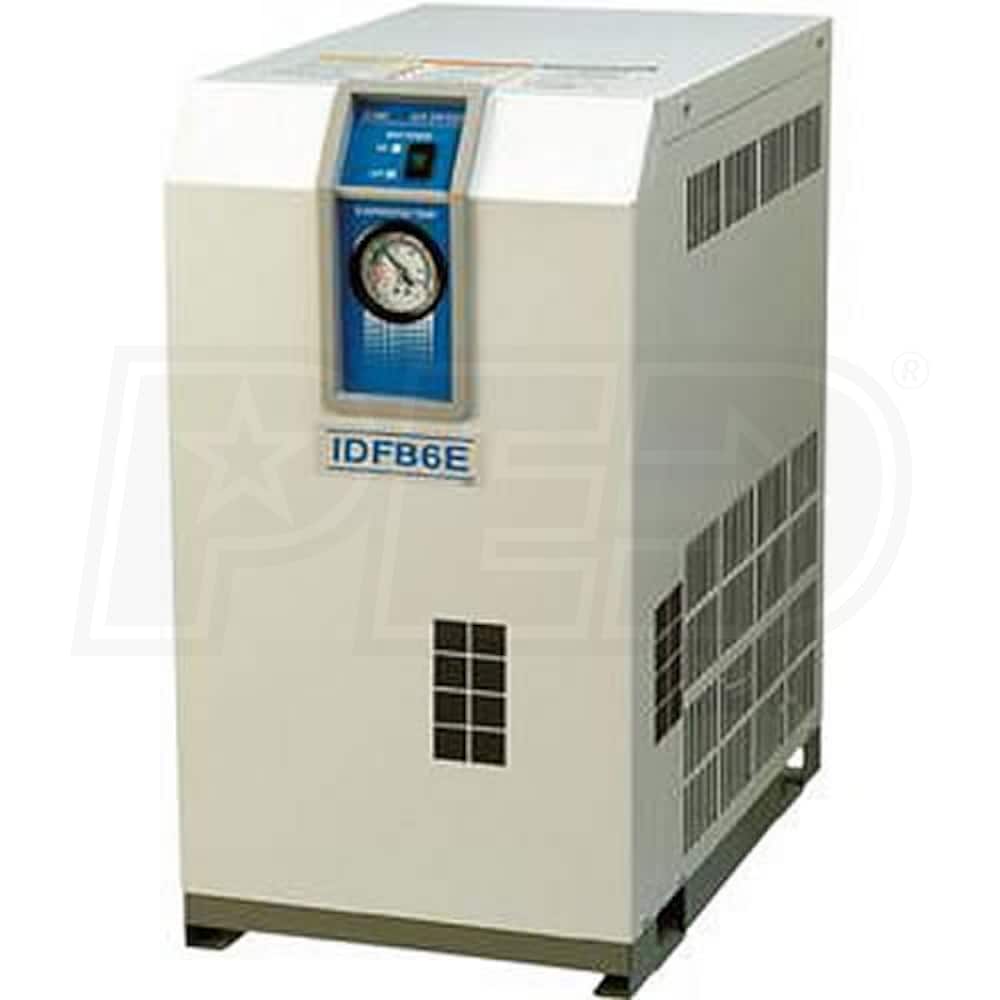

SMC 3/4" Commercial Refrigerated Air Dryer (25 CFM)

Model:

IDFB6E-11N

Write A Review
$1,299.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

SMC 3/4
SMC 3/4" Commercial Refrigerated Air Dryer (25 CFM)
Model: IDFB6E-11N
$1,299.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Dryer Voltage

115V 1-Phase

Air Dryer CFM

25
  • Keep Water, Oil, And Dirt Out Of Your Compressed Air
  • Less corrosion of pipes and tools means less downtime
  • Avoid splotches & stains on your projects with proper filtration
  • Compact And Efficient
  • 25 CFM at 37°F PDP; high performance heat exchanger
  • Environmentally Safe
  • Uses R134a refrigerant to prevent damage to the ozone layer; UL and CSA listed
  • Easy To Install
  • Uses 115v single phase power; no special wiring needed
  • Simple control system with convenient evaporator gauge
  • 1/2" connections; inlet air temperature of 100°F (37.8°C)
  • 1 Year Factory Warranty
  • Using an AFF Series Line Filter in front of your dryer extends warranty to 2 years, with 5 year coverage on the heat exchanger

Specifications

IDFB6E-11N
specs product image PID-2053
General Information
Product Category
Air Compressor Accessories
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
25
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
150
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
122
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
104
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
3/4"
Outlet Fittings
3/4"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
No
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Overview
Product Category
Air Compressor Accessories
Weight
57 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
17.7 Inches
Product Width
10.6 Inches
Product Height
19.5 Inches
