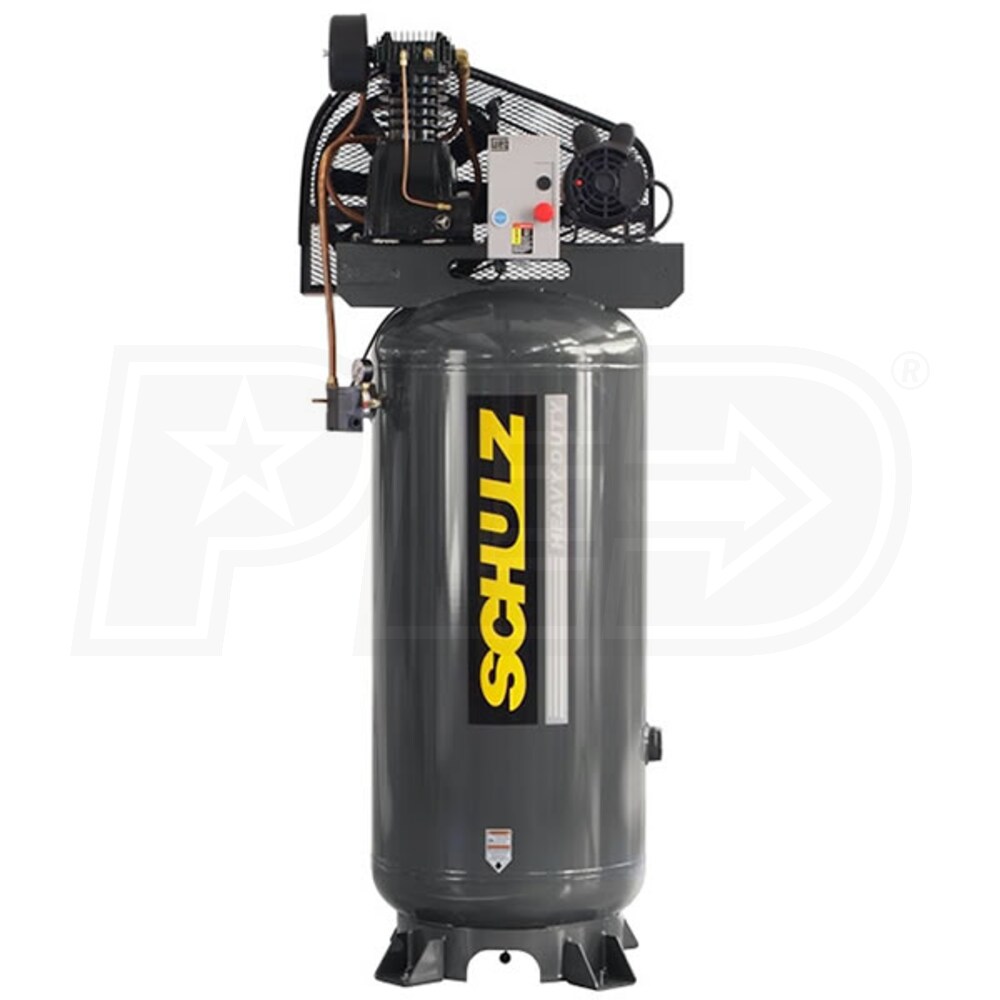

Schulz L-Series 5-HP 80-Gallon Air Compressor (230V 1-Phase)

Schulz L-Series 5-HP 80-Gallon Air Compressor (230V 1-Phase)
Our Price
Compare Prices
Shipping Info
Model: 580VL20X-1
$1,769.99

Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$50.00
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii, California or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Contractor
Style
Two Stage 1-Phase
CFM
20
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Contractor
CFM
20 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
  • WEG Electric Motor
  • 5 HP motor reliably handles commercial duty demands
  • L-Series Cast Iron Pump
  • Low RPM pump runs quieter & cooler; lasts longer
  • Deeper cylinder fins for additional heat dissipation
  • Oversized Main Bearings
  • Sturdy & reliable
  • Swedish Steel Valves
  • Quality components contribute to pump efficiency
  • CNC Machined Components
  • Accurate fit produces top-notch performance
  • Notched Belts Standard
  • Enclosed belt guard protects the belt & operators
  • Powder Coated Components
  • Resist rust & corrosion
  • 1 Year Unit With 2 Year Pump Warranty
  • Protects your investment
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
20
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
620 Pounds
Product Length
48 Inches
Product Width
42 Inches
Product Height
81 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Grade
Contractor
Style
Two Stage 1-Phase
CFM
20
CFM Rated @ 175 PSI
Tank Size
80
Gallons
Grade
Contractor
CFM
20 CFM Rated @ 175 PSI
Tank Size
80 Gallons
Features
Features
  • WEG Electric Motor
  • 5 HP motor reliably handles commercial duty demands
  • L-Series Cast Iron Pump
  • Low RPM pump runs quieter & cooler; lasts longer
  • Deeper cylinder fins for additional heat dissipation
  • Oversized Main Bearings
  • Sturdy & reliable
  • Swedish Steel Valves
  • Quality components contribute to pump efficiency
  • CNC Machined Components
  • Accurate fit produces top-notch performance
  • Notched Belts Standard
  • Enclosed belt guard protects the belt & operators
  • Powder Coated Components
  • Resist rust & corrosion
  • 1 Year Unit With 2 Year Pump Warranty
  • Protects your investment
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
20
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
620 Pounds
Product Length
48 Inches
Product Width
42 Inches
Product Height
81 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
20
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Overview
Certification
ASME
Weight
620 Pounds
Product Length
48 Inches
Product Width
42 Inches
Product Height
81 Inches
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Power Type
Electric
