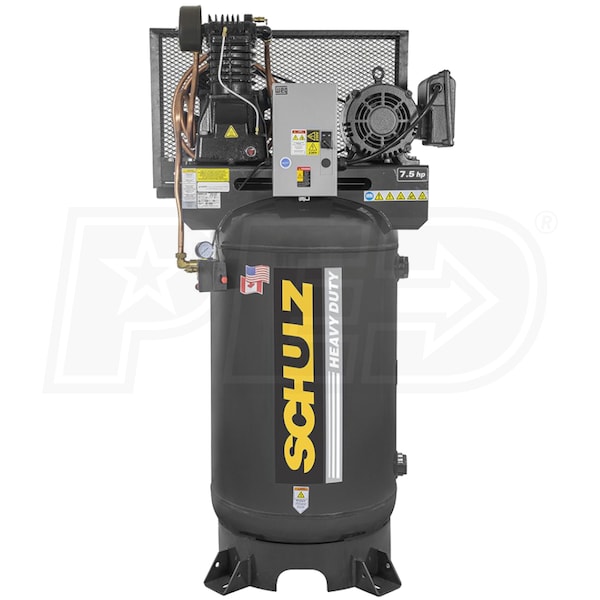

Schulz L-Series 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

Model:

932.9335-0

Write a Review
$2,099.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping Details
  • Free to Lower 48 States
  • Lift Gate Service Available - $50.00 Service Charge Learn More
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Available Add-Ons
+$50.00
Learn More
Lift Gate Service
All products weighing more than 100 lbs. ship via semi-truck. We recommend ordering the Lift Gate Service to safely lower the product to the curb. If you have a loading dock or forklift, you do NOT need a Lift Gate service. If you are a residential customer, you must have at least 2-4 able-bodied people present to unload the product. Learn More
Schulz L-Series 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Schulz L-Series 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model: 932.9335-0
$2,099.99
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Grade

Contractor

Style

Two Stage 1-Phase

CFM

30

Tank Size

80

  • WEG Electric Motor
  • 7.5 HP motor reliably handles commercial duty demands
  • L-Series Cast Iron Pump
  • Low RPM pump is quieter, runs cooler & lasts longer
  • Deeper cylinder fins for additional heat dissipation
  • Oversized Main Bearings
  • Sturdy & reliable
  • Swedish Steel Valves
  • Quality components contribute to pump efficiency
  • CNC Machined Components
  • Accurate fit produces top-notch performance
  • Notched Belts Standard
  • Enclosed belt guard protects the belt & operators
  • Powder Coated Components
  • Resist rust & corrosion
  • 1 Year Unit With 2 Year Pump Warranty
  • Protects your investment
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

932.9335-0
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM
30
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
565 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
32 Inches
Product Width
25 Inches
Product Height
78 Inches
Power Type
Electric
Additional Model Numbers

7580VL30X-1, 932.9335-0

Reviews

(6)
Schulz 932.9335-0 Reviews & Ratings

Product Q&A

(1)
Product Questions Answered by Joshua. the Air Compressor Expert
Question
+
What size breaker do I need?
Bob L.
from New Hampshire
November 14, 2019
Answer
The recommended breaker size is a 50 amp breaker.
