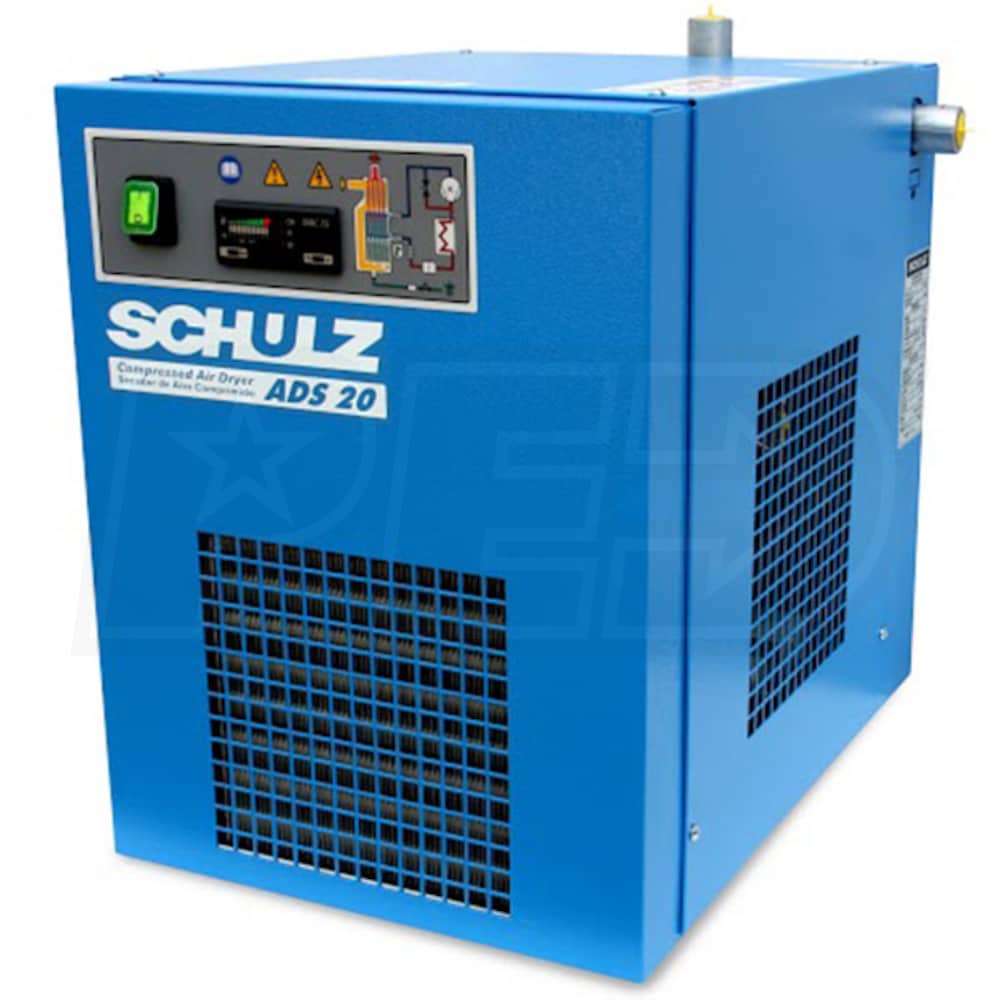

Schulz ADS 20 Non-Cycling Refrigerated Air Dryer (20 CFM 115V 1-Phase)

Model:

ADS 20

Write A Review
$1,157.00
Was $1,285.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Schulz ADS 20 Non-Cycling Refrigerated Air Dryer (20 CFM 115V 1-Phase)
Schulz ADS 20 Non-Cycling Refrigerated Air Dryer (20 CFM 115V 1-Phase)
Model: ADS 20
$1,157.00
Was $1,285.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Refrigerated

Dryer Voltage

115V 1-Phase

Air Dryer CFM

20
  • Excellent Performance
  • Even where ambient & inlet temperatures are elevated
  • Nominal air pressure of 100 PSI; 232 PSI maximum
  • Energy Efficient Sizing
  • Matches the compressor's displacement, saving energy

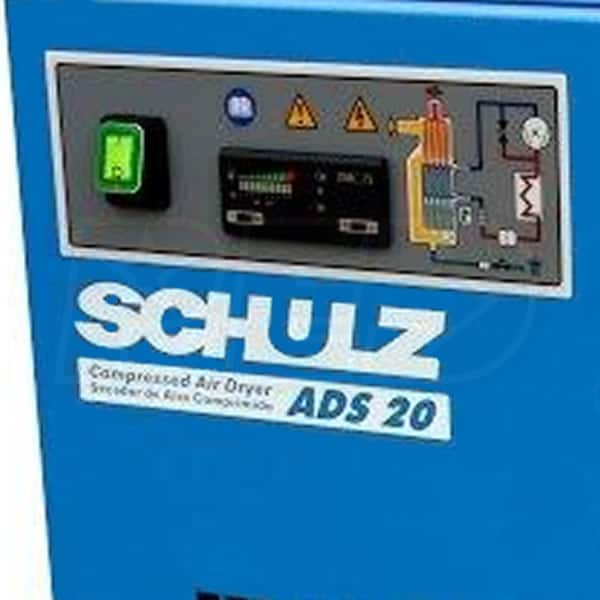

  • Electronic Controller
  • Digitally shows temperature & dew point
  • Controls the drain valve through a timer
  • Controls the condenser fan through a probe
  • High-Efficiency Compressor
  • Circulates the refrigerant through the system
  • Totally New Design
  • Delivers high dependability & low power consumption
  • Quick disconnect automatic drain valve doesn't need special tools
  • Requires a 115V, single phase circuit
  • Environmentally Friendly Refrigerant
  • R134a is effective & easier on the environment
  • Compact Footprint
  • Conveniently sized 18-11/16" x 14-9/16" x 18-11/16"
  • Weighs only 55 pounds; easy to install
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ADS 20
specs product image PID-14875
General Information
Product Category
Air Compressor Accessories
Filter
High Efficiency
Yes
Air Dryer
Dryer Voltage
115V 1-Phase
Air Dryer CFM Learn More
Air Dryer CFM
All compressed air dryers have a maximum drying capacity expressed in Cubic Feet Per Minute (CFM)
20
Max PSI Learn More
Max PSI
The most amount of PSI that be passed through a dryer
232
Max Inlet Temp. Rating Learn More
Max Inlet Temp. Rating
The highest temperature the compressed air can be passing through the dryer for the dryer to operate properly and effectively
100
Max Ambient Temp. Rating Learn More
Max Ambient Temp. Rating
Ambient temperature is the air temperature of any object or environment where equipment is stored
113
Non-Cycling Learn More
Non-Cycling
Non-cycling refrigerated air dryers have refrigeration compressors that start as soon as you turn the dryer on ― and don't stop until you turn the dryer off. They are less expensive than cycling dryers and are a good choice for applications where they will constantly run at full capacity
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
No
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain Learn More
Auto Drain
Auto drain or drip leg drain used to drain air line of condensate and water
Yes
Regenerative
No
High Temp Learn More
High Temp
Dryers that are specifically designed to handle higher inlet temperatures than regular dryers. Typically paired with a piston or reciprocating air compressor
No
Dry Amp Draw
15.44
Overview
Product Category
Air Compressor Accessories
Weight
55 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
19 Inches
Product Width
15 Inches
Product Height
19 Inches
Power Type
Electric
Additional Model Numbers

ADS-20, ADS 20
