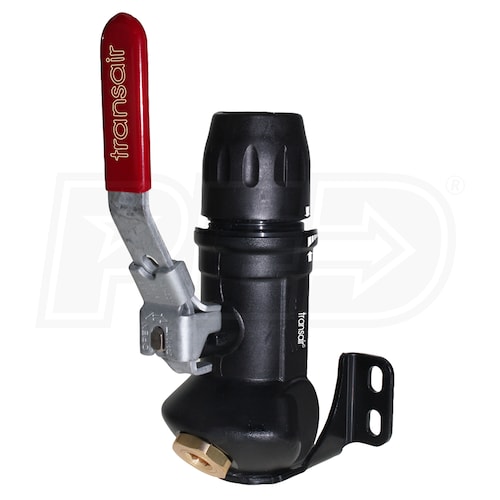

Transair 1/2-Inch (16.5mm) - 1 Port 45° Wall Bracket w/ Ball Valve & NPT Connection

Model:

6679 17 22

Write A Review
$127.00
Factory-Direct
Ships in 2-5 Business Days
Transair 1/2-Inch (16.5mm) -  1 Port 45° Wall Bracket w/ Ball Valve & NPT Connection
Transair 1/2-Inch (16.5mm) - 1 Port 45° Wall Bracket w/ Ball Valve & NPT Connection
Model: 6679 17 22
$127.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Transair Fast, Flexible & Easy-To-Use Series Pipe Connectors
  • Most effective and efficient compressed air piping system
  • Offers significant savings on installation and maintenance
  • 1 Port 45° Wall Bracket w/ Ball Valve
  • 1 port for flexibility and adaptability to the environment
  • Designed with 1/4" drain outlet for ease of bleeding airlines of moisture & excess air
  • Treated Brass Body w/ Polymer HR/NBR Nut
  • 100% recyclable, silicone-free and made of non-flammable materials
  • Resistant to minerals, synthetic compressor oils & aggressive environments
  • Full Bore Design
  • Delivers high flow with extremely low-pressure loss
  • Ideal for automotive assembly, industrial and food & beverage
  • Quick Connection Technology
  • Eliminates special install tools and the need to solder pipe
  • 1/2" Outer Pipe Diameter w/ 1/2" NPT Connection
  • Max working pressure 232; Max working temp 140 F
  • 188psi when system is operated between -4 to 140 F
  • 232psi when system is operated between -4 to 115 F
  • Transair 10-Year Guarantee
  • Leak free, easy-to handle and safe to work with on elevated platforms
  • Suitable for compressed air (dry, wet, lubricated) and inert gases
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

6679 17 22
specs product image PID-96895
General Information
Product Category
Air Compressor Accessories
Air Tools
Max Tool PSI
232
NPT
1/2"
Size
1/2"
Overview
Product Category
Air Compressor Accessories
Weight
1.19 Pounds
Consumer Warranty
10 Years
Commercial Warranty
10 Years
Product Length
5.75 Inches
Product Width
8 Inches
Product Height
6 Inches
