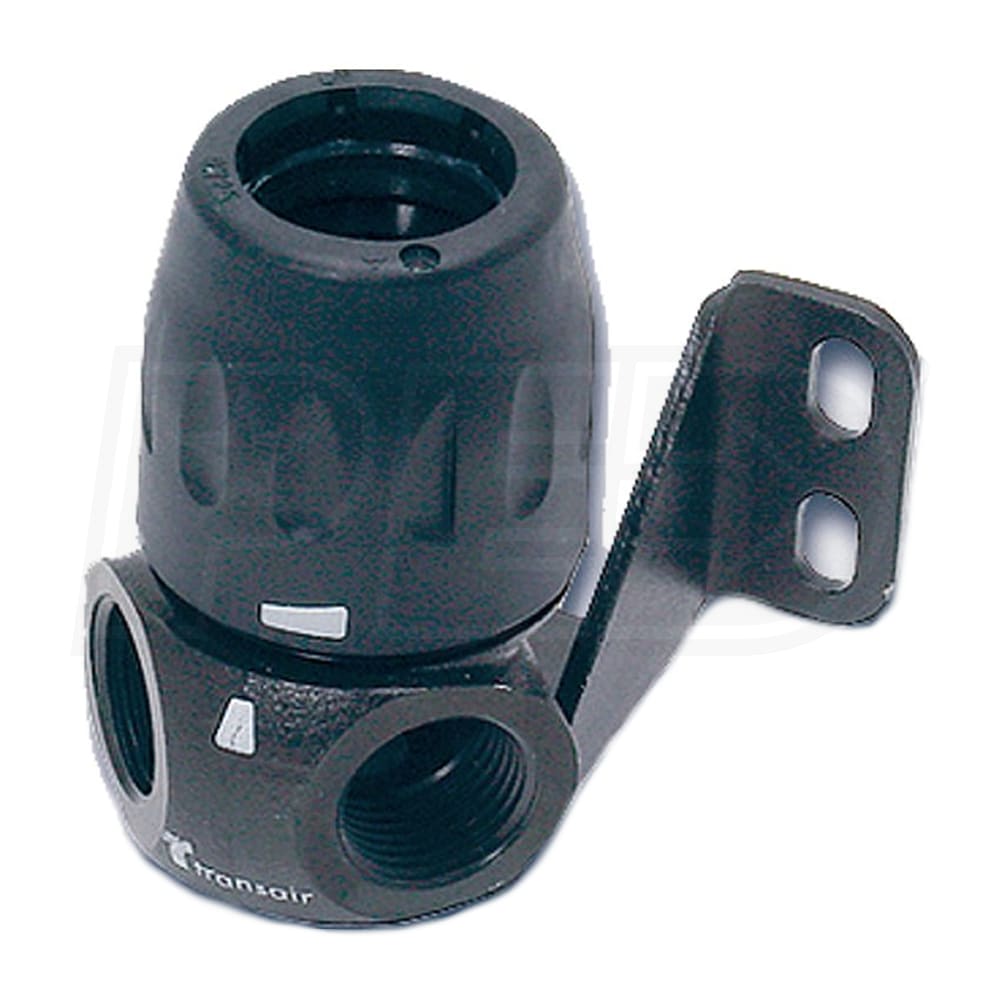

Transair 1-Inch (25mm) 2 Port 90° Wall Bracket

Model:

6684 25 22

Write a Review
$46.00
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Shipping Details
*We currently CANNOT ship this product to Canada or any destination outside of the United States
Transair 1-Inch (25mm) 2 Port 90° Wall Bracket
Transair 1-Inch (25mm) 2 Port 90° Wall Bracket
Model: 6684 25 22
$46.00
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Transair Fast, Flexible & Easy-To-Use Series Pipe Connectors
  • Most effective and efficient compressed air piping system
  • Offers significant savings on installation and maintenance
  • 2 Port 90° Wall Bracket
  • 2 port for flexibility and adaptability to the environment
  • Designed with 1/4" drain outlet for ease of bleeding airlines of moisture & excess air
  • Treated Brass Body w/ Polyamide w/ Fiberglass Nut
  • 100% recyclable, silicone-free and made of non-flammable materials
  • Resistant to minerals, synthetic compressor oils & aggressive environments
  • Full Bore Design
  • Delivers high flow with extremely low-pressure loss
  • Ideal for automotive assembly, industrial and food & beverage
  • Quick Connection Technology
  • Simply push to connect the valve to lock
  • Eliminates special install tools and the need to solder pipe
  • 1/2" Outer Pipe Diameter w/ 1/2" NPT Connection
  • Max working pressure 232; Max working temp 140 F
  • 188psi when system is operated between -4 to 140 F
  • 232psi when system is operated between -4 to 115 F
  • Transair 10-Year Guarantee
  • Leak free, easy-to handle and safe to work with on elevated platforms
  • Suitable for compressed air (dry, wet, lubricated) and inert gases
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

6684 25 22
Air Tools
Max Tool PSI
232
NPT
1"
Size
1"
Overview
Weight
1.13 Pounds
Consumer Warranty
10 Years
Commercial Warranty
10 Years
Product Length
5.75 Inches
Product Width
8 Inches
Product Height
6 Inches
