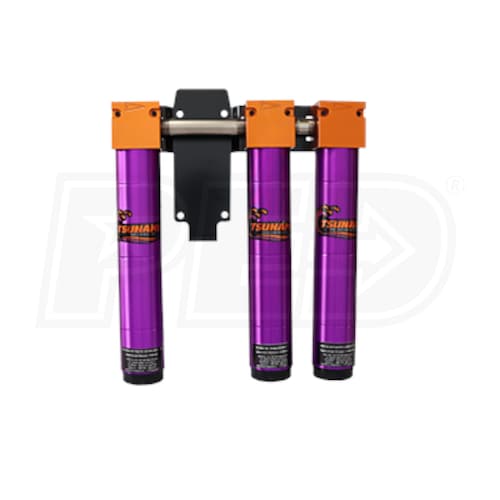

Tsunami Filtration Package #5 - 1/4" Water Separator, Oil Coalescing Filter & Activated Carbon (50 CFM) (Right To Left Flow Direction)
Model: 21999-0255-R
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Features
Features
- Tsunami 50 Series Filtration Package #5
- Reverse flow filter flows right to left (-R)
- Includes water separator, oil coalescing and activated carbon filter
- Packaged for laser cutters, automotive painting, medical, air bearings & more
- Oversize Filter Casing w/ Mounting Brackets
- Filter heads machined from 6061 Aircraft Aluminum
- Anodized inside and out for ultimate durability against corrosion
- Rated Up To 50 CFM
- Exceeding 50 SCFM may result in moisture carryover
- 250 PSI maximum pressure; 175°F maximum temperature
- 1/2" input & output connections fit many systems
- Water Separator
- Filters particulate down to 10 microns
- Removes water up to one quarter per minute
- Oil Coalescing Filter
- Non-wicking layer collects & drains oils preventing entrapment
- Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
- Carbon Activated Filter
- Removes oil vapors down to .003 ppm
- Eliminates odor and taste from the air
- Integral Automatic Float Drain
- Ejects water and oil from large drain sump
- Threaded for optional electronic drain (sold separately)
Specifications
Filter
Filter Combination
Yes
Filter CFM
20
Water Separator
Yes
Oil Coalescing
Yes
Carbon Filter
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Fitting Size
1/2"
Overview
Weight
13.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Depth
3.5 Inches
Product Width
13 Inches
Product Height
17 Inches
Features
Features
- Tsunami 50 Series Filtration Package #5
- Reverse flow filter flows right to left (-R)
- Includes water separator, oil coalescing and activated carbon filter
- Packaged for laser cutters, automotive painting, medical, air bearings & more
- Oversize Filter Casing w/ Mounting Brackets
- Filter heads machined from 6061 Aircraft Aluminum
- Anodized inside and out for ultimate durability against corrosion
- Rated Up To 50 CFM
- Exceeding 50 SCFM may result in moisture carryover
- 250 PSI maximum pressure; 175°F maximum temperature
- 1/2" input & output connections fit many systems
- Water Separator
- Filters particulate down to 10 microns
- Removes water up to one quarter per minute
- Oil Coalescing Filter
- Non-wicking layer collects & drains oils preventing entrapment
- Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
- Carbon Activated Filter
- Removes oil vapors down to .003 ppm
- Eliminates odor and taste from the air
- Integral Automatic Float Drain
- Ejects water and oil from large drain sump
- Threaded for optional electronic drain (sold separately)
Specifications
Filter
Filter Combination
Yes
Filter CFM
20
Water Separator
Yes
Oil Coalescing
Yes
Carbon Filter
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Fitting Size
1/2"
Overview
Weight
13.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Depth
3.5 Inches
Product Width
13 Inches
Product Height
17 Inches
Product Specs
+−
Specifications
Filter
Filter Combination
Yes
Filter CFM
20
Water Separator
Yes
Oil Coalescing
Yes
Carbon Filter
Yes
Inlet Fittings
1/2"
Outlet Fittings
1/2"
Fitting Size
1/2"
Overview
Weight
13.5 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Depth
3.5 Inches
Product Width
13 Inches
Product Height
17 Inches
