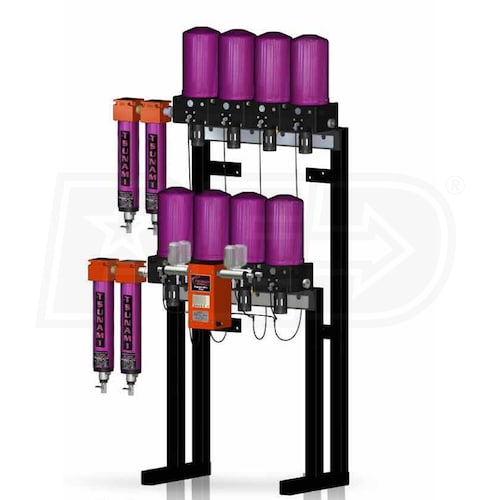

Tsunami 1" Ultra Series 50-HP Rail Mounted Regenerative Air Dryer (200 CFM) w/ Moisture Minder Pneumatic Drain
Model: 21999-0750
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
N/A
Style
Air Dryer CFM
200
Air Dryer CFM
200
Features
Features
- Ultra Series Rail-Mounted Regenerative Dryer
- Built to withstand the largest surges of contamination
- The optimal solution for any facility; simply connect shop air into the inlet fitting and out the regulator
- Regenerative Dryer
- Handles up to 150°F inlet air temperature
- Delivers very dry, clean air down to -80°F dew point
- Pre-filtration to assure removal of water, oil, and particulates before entering the dryer
- Stage 1: Water Separator
- Filters particulate down to 10 microns
- Removes water up to one quarter per minute
- Stage 2: Oil Coalescing Filter
- Non-wicking layer collects & drains oils preventing entrainment
- Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
- Built-In Bypass System
- Allows the dryer to be shutoff for maintenance or service without stopping production
- Moisture Minder Pneumatic Drains
- Automatically eliminates water & oil in the filter sumps
- Valve operates without pressure drop in air system
- Programmable Logic Control (PLC)
- Controls the cycling of the dryers for efficient operation
- Great for mobile operations; auto paint, powder coating, etc.
Specifications
Filter
Filter Combination
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
200
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
267 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
48.25 Inches
Product Width
24.25 Inches
Product Height
60.25 Inches
Power Type
Electric
Style
N/A
Style
Air Dryer CFM
200
Air Dryer CFM
200
Features
Features
- Ultra Series Rail-Mounted Regenerative Dryer
- Built to withstand the largest surges of contamination
- The optimal solution for any facility; simply connect shop air into the inlet fitting and out the regulator
- Regenerative Dryer
- Handles up to 150°F inlet air temperature
- Delivers very dry, clean air down to -80°F dew point
- Pre-filtration to assure removal of water, oil, and particulates before entering the dryer
- Stage 1: Water Separator
- Filters particulate down to 10 microns
- Removes water up to one quarter per minute
- Stage 2: Oil Coalescing Filter
- Non-wicking layer collects & drains oils preventing entrainment
- Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
- Built-In Bypass System
- Allows the dryer to be shutoff for maintenance or service without stopping production
- Moisture Minder Pneumatic Drains
- Automatically eliminates water & oil in the filter sumps
- Valve operates without pressure drop in air system
- Programmable Logic Control (PLC)
- Controls the cycling of the dryers for efficient operation
- Great for mobile operations; auto paint, powder coating, etc.
Specifications
Filter
Filter Combination
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
200
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
267 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
48.25 Inches
Product Width
24.25 Inches
Product Height
60.25 Inches
Power Type
Electric
Product Specs
+−
Specifications
Filter
Filter Combination
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
200
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
267 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
48.25 Inches
Product Width
24.25 Inches
Product Height
60.25 Inches
Power Type
Electric
