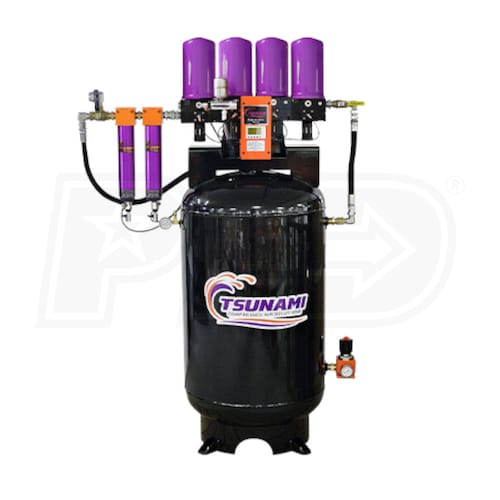

Tsunami 1" Ultra Series 20-HP 80-Gallon Tank Mounted Regenerative Air Dryer (80 CFM) w/ Moisture Minder Pneumatic Drain
Model: 21999-0820
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
N/A
Style
Tank Size
80
Gallons
Air Dryer CFM
80
Tank Size
80 Gallons
Air Dryer CFM
80
Features
Features
- Ultra Series Tank Mounted Dryer
- Comes fully assembled for easy installation
- The optimal solution for any facility; simply connect shop air into the inlet fitting and out the regulator
- Regenerative Dryer
- Handles up to 150°F inlet air temperature
- Delivers very dry, clean air down to -80°F dew point
- Pre-filtration to assure removal of water, oil, and particulates before entering the dryer
- Stage 1: Water Separator
- Filters particulate down to 10 microns
- Removes water up to one quarter per minute
- Stage 2: Oil Coalescing Filter
- Non-wicking layer collects & drains oils preventing entrainment
- Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
- Built-In Bypass System
- Allows the dryer to be shutoff for maintenance or service without stopping production
- 80-Gallon Tank
- Ready-to-use air w/ regulator and pressure gauge
- Allows compressed air system to increase capacity by storing
- Moisture Minder Pneumatic Drains
- Automatically eliminates water & oil in the filter sumps
- Valve operates without pressure drop in air system
- Programmable Logic Control (PLC)
- Controls the cycling of the dryers for efficient operation
- Great for mobile operations; auto paint, powder coating, etc.
Specifications
Tank
Tank Size
80 Gallons
Tank Orientation
Vertical
Filter
Filter Combination
Yes
Regulator
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
80
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
335 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
51 Inches
Product Width
28 Inches
Product Height
69 Inches
Power Type
Electric
Style
N/A
Style
Tank Size
80
Gallons
Air Dryer CFM
80
Tank Size
80 Gallons
Air Dryer CFM
80
Features
Features
- Ultra Series Tank Mounted Dryer
- Comes fully assembled for easy installation
- The optimal solution for any facility; simply connect shop air into the inlet fitting and out the regulator
- Regenerative Dryer
- Handles up to 150°F inlet air temperature
- Delivers very dry, clean air down to -80°F dew point
- Pre-filtration to assure removal of water, oil, and particulates before entering the dryer
- Stage 1: Water Separator
- Filters particulate down to 10 microns
- Removes water up to one quarter per minute
- Stage 2: Oil Coalescing Filter
- Non-wicking layer collects & drains oils preventing entrainment
- Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
- Built-In Bypass System
- Allows the dryer to be shutoff for maintenance or service without stopping production
- 80-Gallon Tank
- Ready-to-use air w/ regulator and pressure gauge
- Allows compressed air system to increase capacity by storing
- Moisture Minder Pneumatic Drains
- Automatically eliminates water & oil in the filter sumps
- Valve operates without pressure drop in air system
- Programmable Logic Control (PLC)
- Controls the cycling of the dryers for efficient operation
- Great for mobile operations; auto paint, powder coating, etc.
Specifications
Tank
Tank Size
80 Gallons
Tank Orientation
Vertical
Filter
Filter Combination
Yes
Regulator
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
80
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
335 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
51 Inches
Product Width
28 Inches
Product Height
69 Inches
Power Type
Electric
Product Specs
+−
Specifications
Tank
Tank Size
80 Gallons
Tank Orientation
Vertical
Filter
Filter Combination
Yes
Regulator
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
80
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
No
Alarm Lights
Yes
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
335 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
51 Inches
Product Width
28 Inches
Product Height
69 Inches
Power Type
Electric
