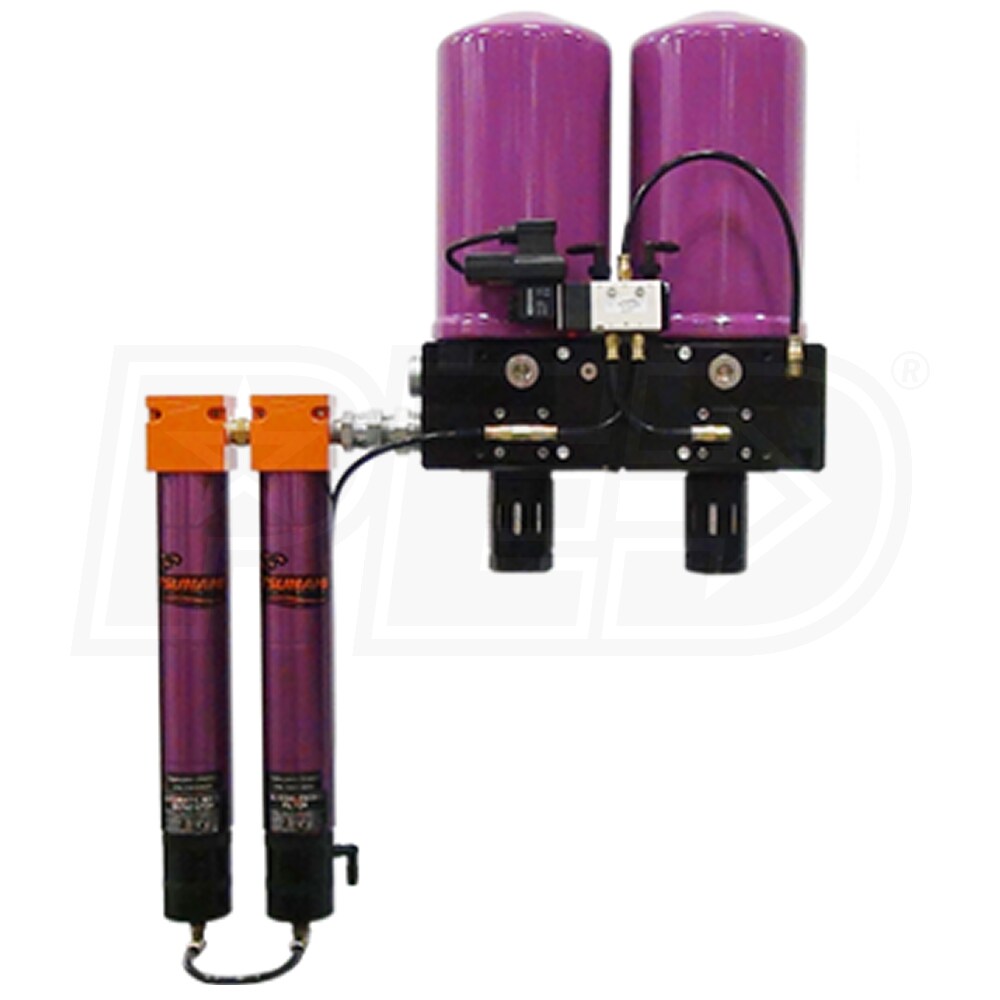

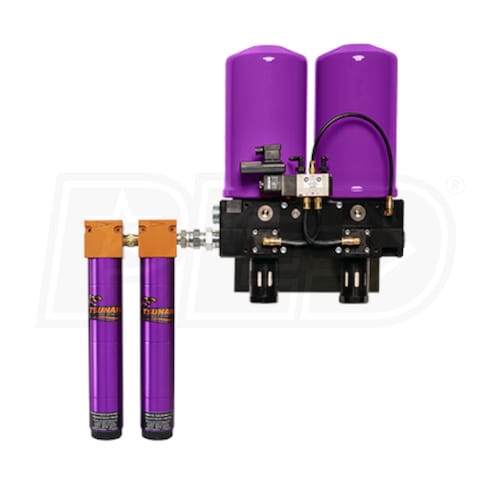

Tsunami Pure-10 Series Regenerative Air Dryer 10-HP (40 CFM) w/ Moisture Minder Pneumatic Drain

Model:

21999-1010-MM

Write a Review
$2,615.56
Free Shipping
  Learn More About Free Freight
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer. Shipping times vary.
Tsunami Pure-10 Series Regenerative Air Dryer 10-HP (40 CFM) w/ Moisture Minder Pneumatic Drain
Tsunami Pure-10 Series Regenerative Air Dryer 10-HP (40 CFM) w/ Moisture Minder Pneumatic Drain
Model: 21999-1010-MM
$2,615.56
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Style

N/A

Air Dryer CFM

40


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Tsunami 40 CFM Regenerative Dryer System
  • Delivers very dry, clean air down to -80F dew point
  • Pre-filtration to assure removal of water, oil, and particulates before entering the dryer
  • Compact, Expandable Design
  • Comes complete with pre-filter, auto drains, & mount bracket
  • Installs in minutes between receiver tank and piping
  • Great for mobile operations; auto paint, powder coating, etc.

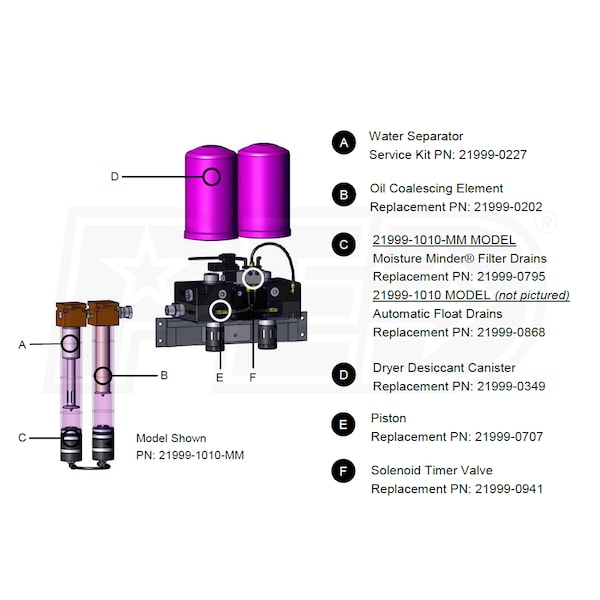

  • Stage 1: Water Separator
  • Water and particulates are removed down to 10 micron
  • Stage 2: Oil Coalescing Filter
  • Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
  • 1/2" Inlet & 1" Outlet NPT Connectors
  • Max inlet pressure is 175 PSI; Min 80 PSI
  • Requires connection to 120-volt outlet
  • Handles up to 150F inlet air temperature
  • Moisture Minder Pneumatic Drains
  • Automatically eliminates water & oil in the filter sumps
California residents see
Warning: This product can expose you to chemicals including Chromium (hexavalent compounds) which is known to the State of California to cause Cancer, and Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

21999-1010-MM
specs product image PID-102856
Engine
HP
10
Motor
Voltage
115 Volt AC
Phase
1-Phase
Filter
Filter Combination
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
40
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1/2"
Outlet Fittings
1"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
No
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
62 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
27 Inches
Product Width
21 Inches
Product Height
12 Inches
Power Type
Electric
