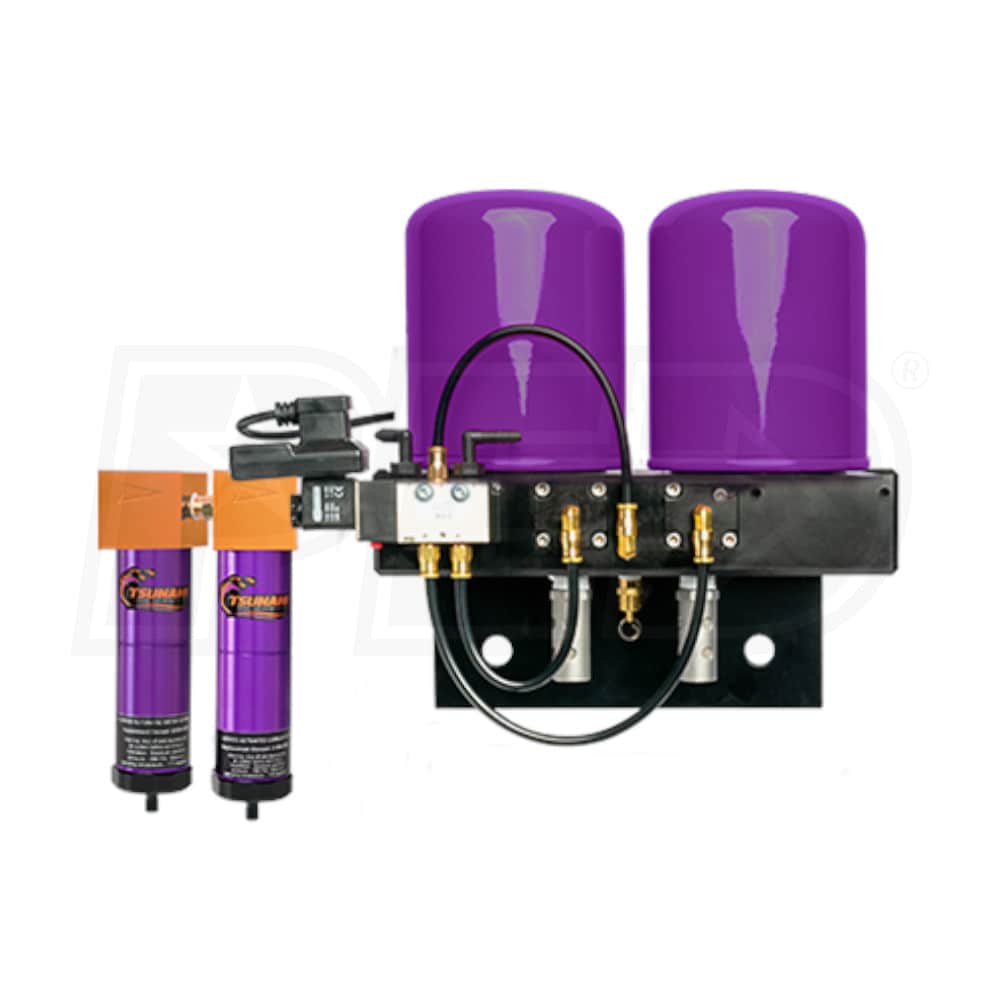

Tsunami Pure 5 Series 5-HP 1/2" Regenerative Air Dryer (17 CFM) w/ Moisture Minder Pneumatic Drain
Model: 21999-1105-MM
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
N/A
Style
Air Dryer CFM
17
Air Dryer CFM
17
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Tsunami 17 CFM Regenerative Dryer System
- Delivers very dry, clean air down to -80°F dew point
- Pre-filtration to assure removal of water, oil and particulates before entering the dryer
- Compact, Expandable Design
- Comes complete with pre-filter, auto drains & mount bracket
- Installs in minutes between receiver tank and piping
- Great for mobile operations; auto paint, powder coating, etc.
- Stage 1: Water Separator
- Water and particulates are removed down to 10 micron
- Stage 2: Oil Coalescing Filter
- Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
- Lowest operating cost & maintenance of any dryer
- 1/4 " Inlet & 1/2” Outlet NPT Connectors
- Maximum inlet pressure is 175 PSI
- Requires connection to 120-volt outlet
- Handles up to 150°F inlet air temperature
- Moisture Minder Pneumatic Drains
- Automatically eliminates water & oil in the filter sumps
- Valve operates without pressure drop in air system
- 1-Year Manufacturer Warranty
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Filter
Filter Combination
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
17
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1/4"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
No
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
20 Pounds
Consumer Warranty
1 Day
Commercial Warranty
1 Day
Product Length
25 Inches
Product Width
12 Inches
Product Height
17 Inches
Power Type
Electric
Style
N/A
Style
Air Dryer CFM
17
Air Dryer CFM
17
