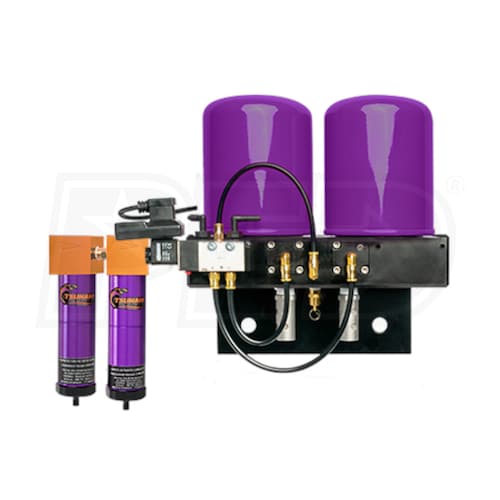

Tsunami Pure 5 Series 5-HP 1/2" Regenerative Air Dryer (17 CFM) w/ Float Drain
Model: 21999-1105
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Style
N/A
Style
Air Dryer CFM
17
Air Dryer CFM
17
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Tsunami 17 CFM Regenerative Dryer System
- Delivers very dry, clean air down to -80°F dew point
- Pre-filtration to assure removal of water, oil and particulates before entering the dryer
- Compact, Expandable Design
- Comes complete with pre-filter, auto drains & mount bracket
- Installs in minutes between receiver tank and piping
- Great for mobile operations; auto paint, powder coating, etc.
- Stage 1: Water Separator
- Water and particulates are removed down to 10 micron
- Stage 2: Oil Coalescing Filter
- Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
- Lowest operating cost & maintenance of any dryer
- 1/4 " Inlet & 1/2” Outlet NPT Connectors
- Maximum inlet pressure is 175 PSI
- Requires connection to 120-volt outlet
- Handles up to 150°F inlet air temperature
- Float Drain
- Automatically discharges drainage
- Float type drain valve drastically reduces maintenance
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Filter
Filter Combination
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
17
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1/4"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
No
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
20 Pounds
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Product Length
25 Inches
Product Width
17 Inches
Product Height
12 Inches
Power Type
Electric
Style
N/A
Style
Air Dryer CFM
17
Air Dryer CFM
17
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Tsunami 17 CFM Regenerative Dryer System
- Delivers very dry, clean air down to -80°F dew point
- Pre-filtration to assure removal of water, oil and particulates before entering the dryer
- Compact, Expandable Design
- Comes complete with pre-filter, auto drains & mount bracket
- Installs in minutes between receiver tank and piping
- Great for mobile operations; auto paint, powder coating, etc.
- Stage 1: Water Separator
- Water and particulates are removed down to 10 micron
- Stage 2: Oil Coalescing Filter
- Oil aerosols are filtered down to .001 ppm and particulates are trapped down to .01 micron
- Lowest operating cost & maintenance of any dryer
- 1/4 " Inlet & 1/2” Outlet NPT Connectors
- Maximum inlet pressure is 175 PSI
- Requires connection to 120-volt outlet
- Handles up to 150°F inlet air temperature
- Float Drain
- Automatically discharges drainage
- Float type drain valve drastically reduces maintenance
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Filter
Filter Combination
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
17
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1/4"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
No
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
20 Pounds
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Product Length
25 Inches
Product Width
17 Inches
Product Height
12 Inches
Power Type
Electric
Product Specs
+−
Specifications
Motor
Voltage
115 Volt AC
Phase
1-Phase
Filter
Filter Combination
Yes
Water Separator
Yes
Oil Coalescing
Yes
Air Dryer
Air Dryer CFM
17
Max PSI
175
Max Inlet Temp. Rating
150
Non-Cycling
Yes
Inlet Fittings
1/4"
Outlet Fittings
1/2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
No
Wall Mountable
Yes
Alarm Lights
No
Auto Drain
Yes
Regenerative
Yes
High Temp
No
Overview
Weight
20 Pounds
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Product Length
25 Inches
Product Width
17 Inches
Product Height
12 Inches
Power Type
Electric
