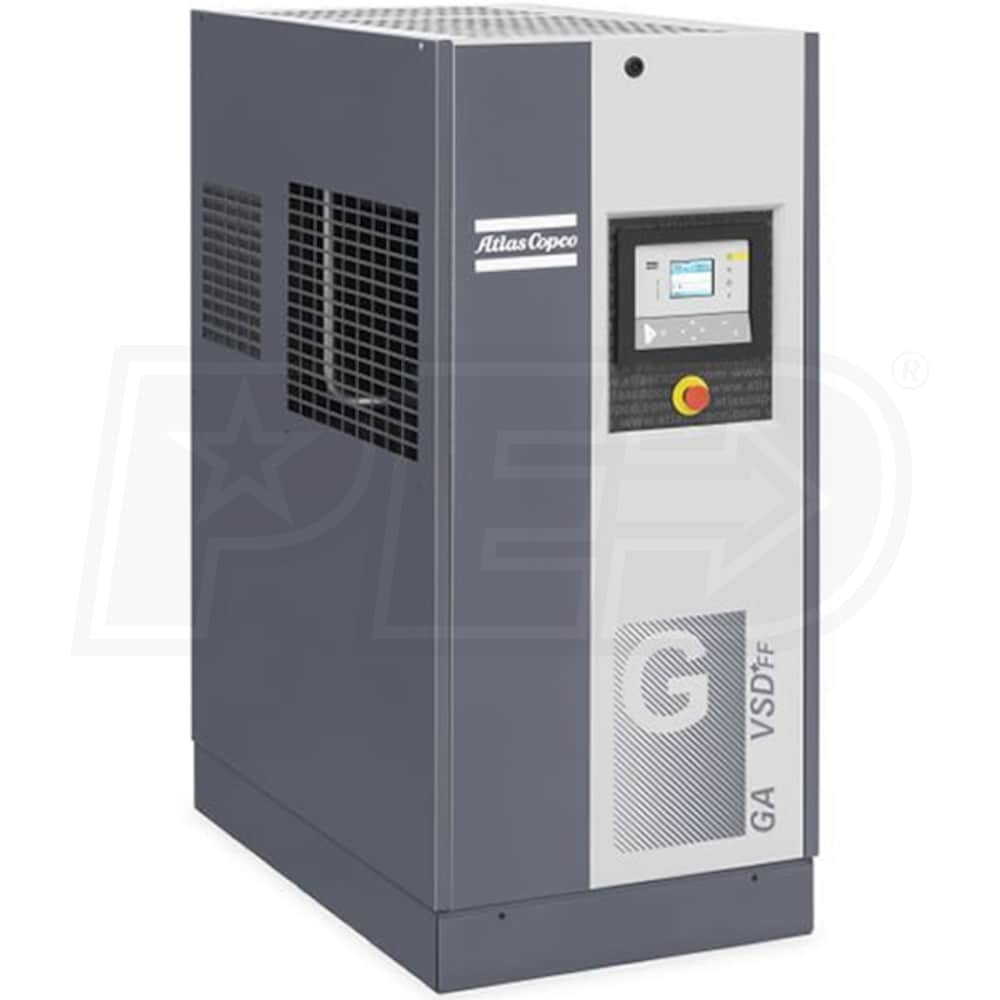

Atlas Copco GA11 VSD+ 15-HP Variable Speed Rotary Screw Air Compressor w/ Dryer (230V 3-Phase)
Model: 8153038222
+
Share This Product
-
Product Description
-
Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

CFM
68.8
CFM Rated @ 102 PSI
Grade
Commercial
CFM
68.8 CFM Rated @ 102 PSI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Tropical Thermostat May Be Required If Unit Is Used In The Following States:
- Texas, Arkansas, Louisiana, Mississippi, Alabama, Georgia, Florida & Lower South Carolina
- Please Contact Us Directly At 866-437-8002 For Assistance

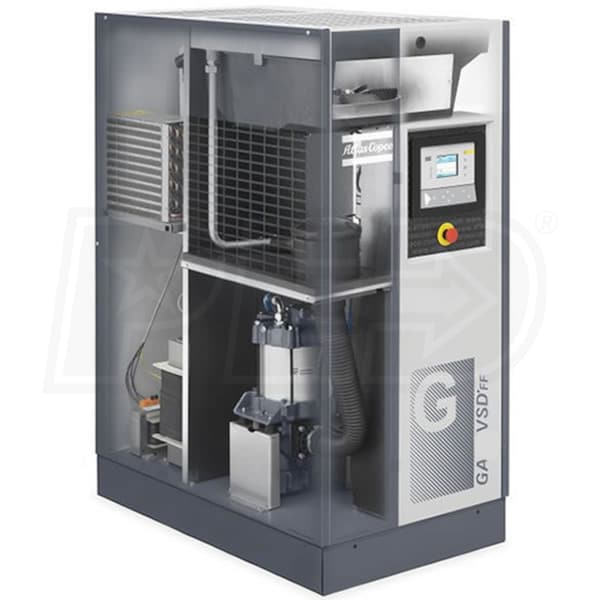

- Innovative Vertical Design
- iPM Permanent Magnet technology delivers variable speed savings
- Up to 96.8% motor efficiency- 50% more efficient than other models
- Delivers 15.5-69.7 CFM @ 80 PSI; up to 49.8 CFM @ 181 PSI
- Direct Drive Between Element & Motor
- No gears or belts to adjust reduces downtime (see Warranty for details)
- Consistent air delivery from very low to very high demand
- Innovative Top-Mounted Fan
- Vents heat from the enclosure; allows space-saving placement against a wall
- Workspace can be located close to the extremely quiet, 62dBA unit

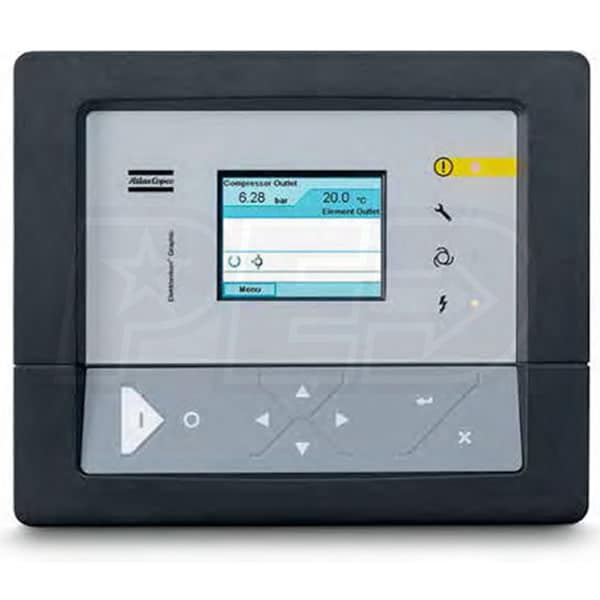

- Elektronikon Graphic Display Controller
- Smart algorithms reduce system pressure & energy consumption
- Manually or automatically create 2 different usage programs to reduce costs
- Displays for online status, warnings, program, & maintenance schedule
- Redesigned VSD+ Cubicle With Integrated Saver Cycle Dryer
- Senses ambient temperature & air output humidity; saves energy
- 50% smaller footprint enables optimal compressor placement
- Averages 50% Energy Savings
- No wasted idling time; eliminates peak current penalty during startup
- No-Cost Start-Up For This Unit Is Provided By Atlas
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
dBA
63
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
68.8
CFM Rated @
102 PSI
Max PSI
175 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Tank
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Accessories
Air Dryer
Yes
Overview
Weight
791 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
25 Inches
Product Width
39 Inches
Product Height
56 Inches
Power Type
Electric
Additional Model Numbers
GA11VSD-175-FF-230-3-60, 8153038222
Grade

Style

CFM
68.8
CFM Rated @ 102 PSI
Grade
Commercial
CFM
68.8 CFM Rated @ 102 PSI
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
Features
Features
- Tropical Thermostat May Be Required If Unit Is Used In The Following States:
- Texas, Arkansas, Louisiana, Mississippi, Alabama, Georgia, Florida & Lower South Carolina
- Please Contact Us Directly At 866-437-8002 For Assistance
- Innovative Vertical Design
- iPM Permanent Magnet technology delivers variable speed savings
- Up to 96.8% motor efficiency- 50% more efficient than other models
- Delivers 15.5-69.7 CFM @ 80 PSI; up to 49.8 CFM @ 181 PSI
- Direct Drive Between Element & Motor
- No gears or belts to adjust reduces downtime (see Warranty for details)
- Consistent air delivery from very low to very high demand
- Innovative Top-Mounted Fan
- Vents heat from the enclosure; allows space-saving placement against a wall
- Workspace can be located close to the extremely quiet, 62dBA unit
- Elektronikon Graphic Display Controller
- Smart algorithms reduce system pressure & energy consumption
- Manually or automatically create 2 different usage programs to reduce costs
- Displays for online status, warnings, program, & maintenance schedule
- Redesigned VSD+ Cubicle With Integrated Saver Cycle Dryer
- Senses ambient temperature & air output humidity; saves energy
- 50% smaller footprint enables optimal compressor placement
- Averages 50% Energy Savings
- No wasted idling time; eliminates peak current penalty during startup
- No-Cost Start-Up For This Unit Is Provided By Atlas
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
dBA
63
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
68.8
CFM Rated @
102 PSI
Max PSI
175 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Tank
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Accessories
Air Dryer
Yes
Overview
Weight
791 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
25 Inches
Product Width
39 Inches
Product Height
56 Inches
Power Type
Electric
Additional Model Numbers
GA11VSD-175-FF-230-3-60, 8153038222
Product Specs
+−
Specifications
Motor
Voltage
230 Volt AC
Phase
3-Phase
dBA
63
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
68.8
CFM Rated @
102 PSI
Max PSI
175 PSI
Pump Type
Rotary
After Cooler
Yes
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Tank
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Accessories
Air Dryer
Yes
Overview
Weight
791 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
25 Inches
Product Width
39 Inches
Product Height
56 Inches
Power Type
Electric
Additional Model Numbers
GA11VSD-175-FF-230-3-60, 8153038222
