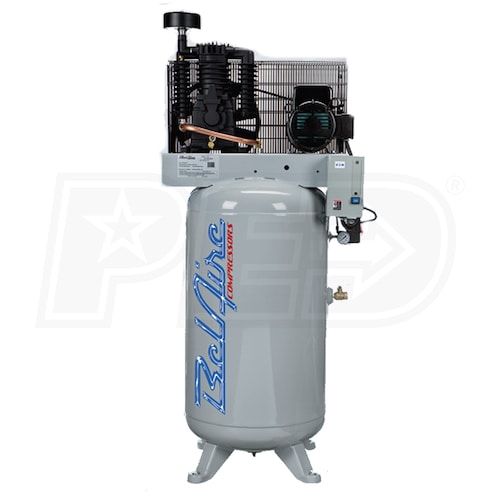

BelAire Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase)
Model: 338VE
+
Share This Product
-
Product Description
-
1Reviews
-
Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style
208-230 Volt AC
CFM
18.5
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
18.5 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
- Two-Stage Pump
- Designed for superior quality & extends the life of the pump
- Compact Design
- Ideal for work environments where space is a premium
- 5-HP Three-Phase Motor (208-230V) w/ Magnetic Starter Included
- Saves $$$, No need to purchase additional starter
- 80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
- High Flow Belt Guard
- Fully enclosed design provides added safety
- Oil Level Sight Glass
- Easily check the oil level at any time
- Start-Stop Pressure Switch Control & Stainless Steel Valves
- Saves time and energy and extends the life of the compressor
- Elite Series Features Auto Tank Drain & Low Oil Switch
- Protects your investment for hours of reliable operation
- Triple-Pass Pump Mounted Aftercooler
- Keeps your pump running cooler and longer
- 3/4" Air Outlet
- 2 year full Factory Warranty
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
453 Pounds
Certification
ASME
Consumer Warranty
2 Years
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
Grade

Style
208-230 Volt AC
CFM
18.5
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
18.5 CFM Rated @ 100 PSI
Tank Size
80 Gallons
Features
Features
- Two-Stage Pump
- Designed for superior quality & extends the life of the pump
- Compact Design
- Ideal for work environments where space is a premium
- 5-HP Three-Phase Motor (208-230V) w/ Magnetic Starter Included
- Saves $$$, No need to purchase additional starter
- 80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
- High Flow Belt Guard
- Fully enclosed design provides added safety
- Oil Level Sight Glass
- Easily check the oil level at any time
- Start-Stop Pressure Switch Control & Stainless Steel Valves
- Saves time and energy and extends the life of the compressor
- Elite Series Features Auto Tank Drain & Low Oil Switch
- Protects your investment for hours of reliable operation
- Triple-Pass Pump Mounted Aftercooler
- Keeps your pump running cooler and longer
- 3/4" Air Outlet
- 2 year full Factory Warranty
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
453 Pounds
Certification
ASME
Consumer Warranty
2 Years
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
Product Specs
+−
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
30 Amp Breaker
Engine
HP
5
Pump
CFM
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
453 Pounds
Certification
ASME
Consumer Warranty
2 Years
Product Length
39 Inches
Product Width
24 Inches
Product Height
77 Inches
Power Type
Electric
