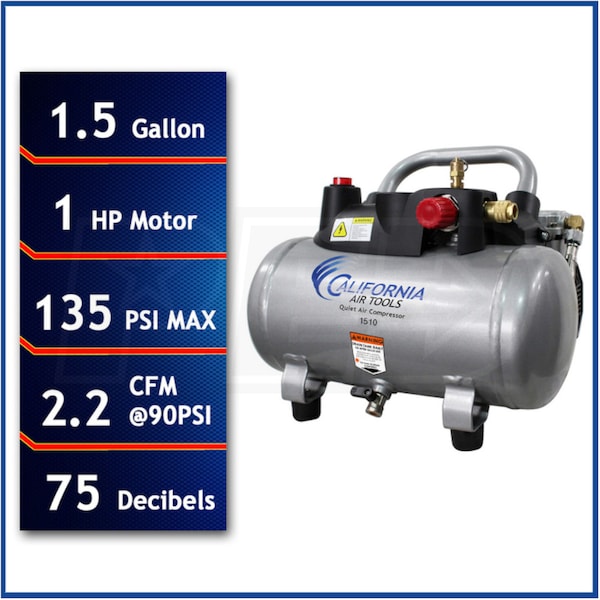

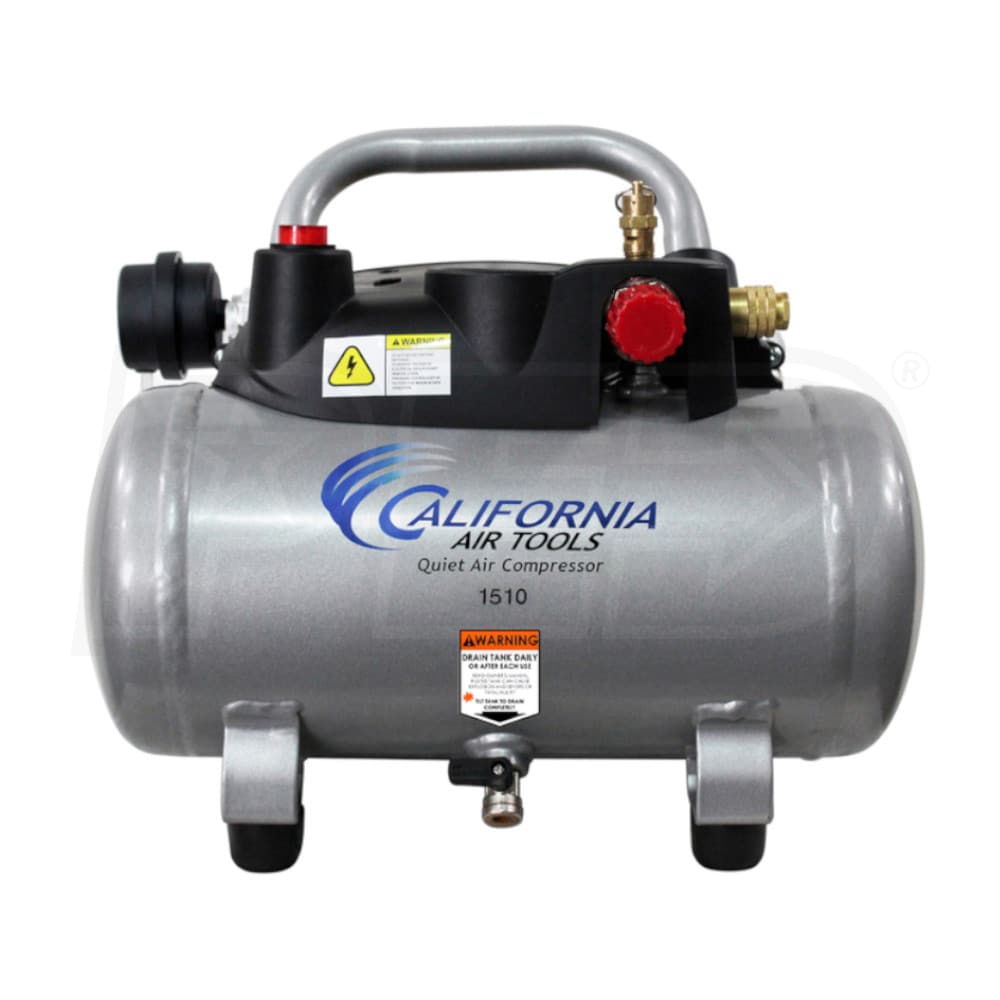

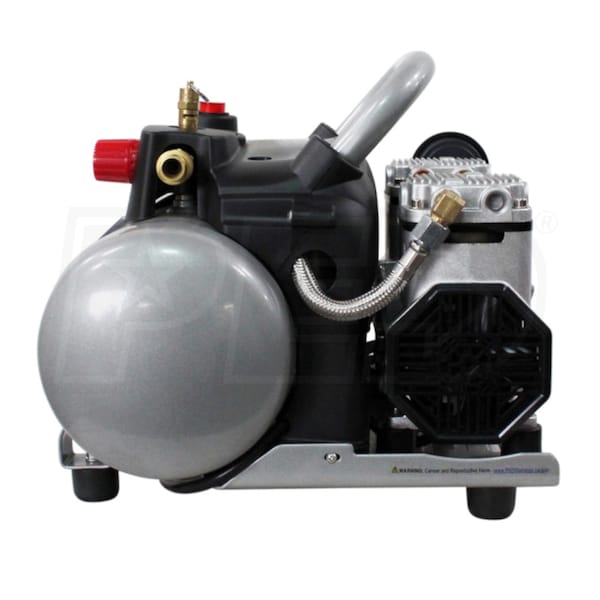

California Air Tools Light & Quiet 1-HP 1.5-Gallon Steel Tank Hot Dog Air Compressor
Model:
CAT-1510
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Hot Dog
CFM
2.20
Tank Size
1.5
- Quiet Air Compressor & Oil-Free Motor
- One of the quietest air compressors in the industry at 75dBA
- Ideal for anyone working inside where noise is a major issue

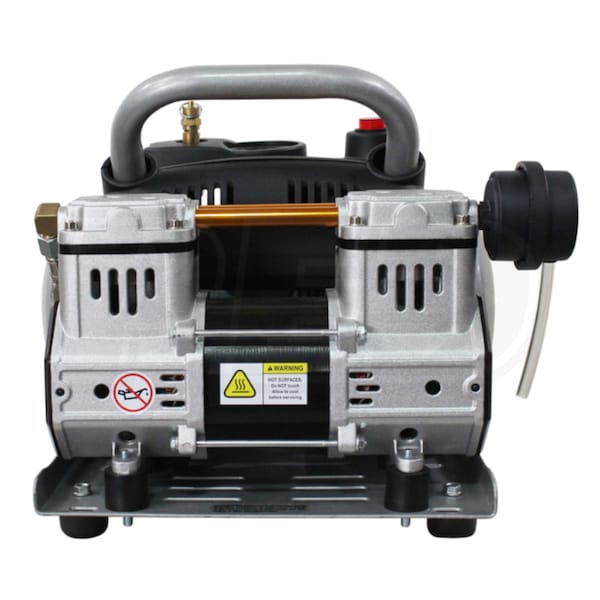

- High Performance Oil-Free Pump
- Engineered for high performance and durability
- Easy to use in a variety of different temperatures & uneven terrains
- Produces 2.20 CFM At 90 PSI
- Recovery time from 100 PSI to 130 PSI - 18 Seconds
- Tank fill rate from empty to full - 51 Seconds
- Perfect for staple nail guns, airbrushes, inflating tires, and much more
- Oil-Free 1-HP Rated/Running Motor
- Low Amp Draw - 7.5 Amps; Duty Cycle 70/30*
- Large single-piston engineered for high performance and durability
- Reliable & Durable
- 1000+ hour life cycle before wear
- Thermal overload protector for maximum protection
- 1.5-Gallon Steel Air Tank
- Lightweight at 30 pounds so it's easy to transport
- Easy access tank drain simplifies maintenance; rubber feet reduce vibration

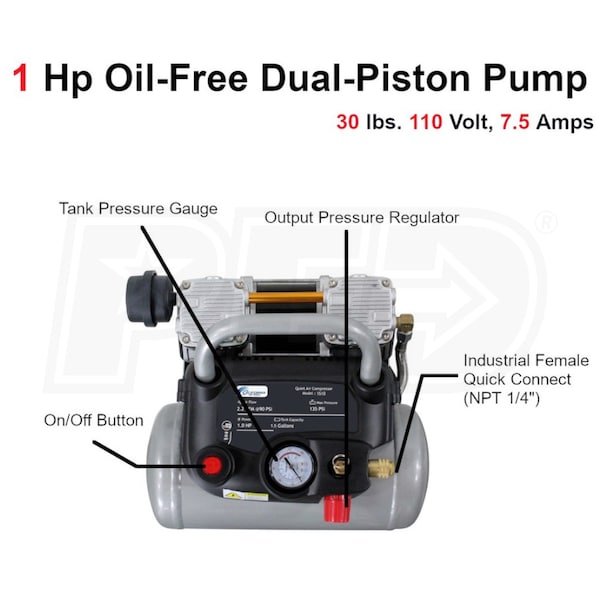

- Convenient Controls & Handle
- Pressure regulator and top pressure gauge
- Female industrial quick connector, 1/4" NPT
- Heavy-duty handle keeps unit balanced while being carried
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CAT-1510

General Information
Product Category
Air Compressor - Portable
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
dBA

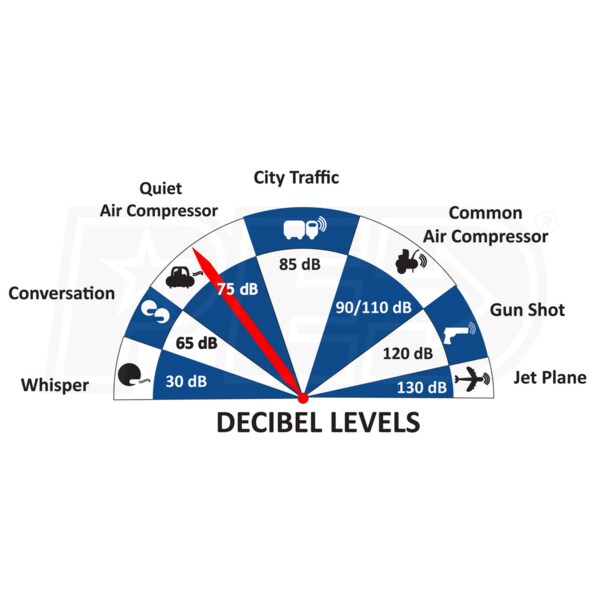

Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
75
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
7.5
Engine
HP
1
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.20
CFM Rated @
90 PSI
CFM @ 40 PSI
3
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
1.5 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No

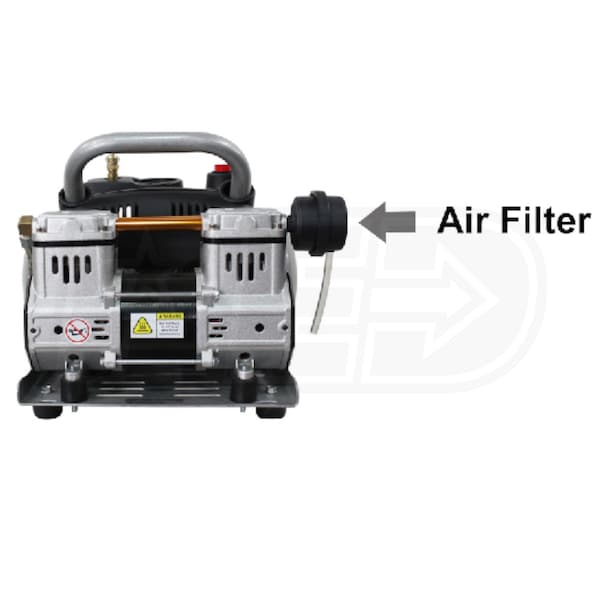

Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
30 Pounds
Certification
ETL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
17.5 Inches
Product Width
15.5 Inches
Product Height
13 Inches
Power Type
Electric
UPC
850053943874
