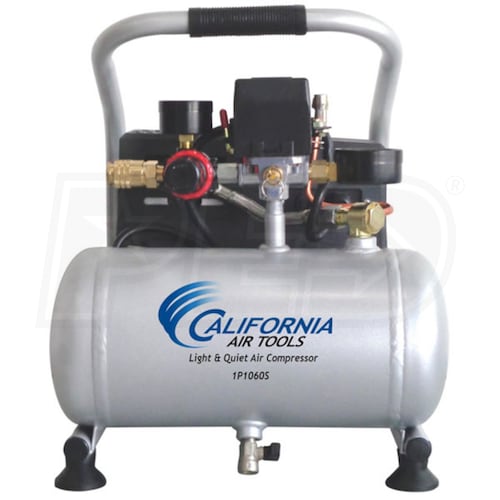

California Air Tools IP Light & Quiet .6-HP 1-Gallon Steel Tank Hot Dog Air Compressor

Model:

CAT-1P1060S

Write A Review
$164.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, May 20th
Shipping to60601
California Air Tools IP Light & Quiet .6-HP 1-Gallon Steel Tank Hot Dog Air Compressor
California Air Tools IP Light & Quiet .6-HP 1-Gallon Steel Tank Hot Dog Air Compressor
Model: CAT-1P1060S
$164.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Hot Dog

CFM

1.2

Tank Size

1



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • "IP" Ultra Quiet Air Compressor & Oil-Free Motor
  • One of the quietest air compressors in the industry at 56dBA
  • Ideal for anyone working inside where noise is a major issue
  • High Performance Oil-Free Pump
  • Engineered for high performance and durability
  • Easy to use in a variety of different temperatures & uneven terrains
  • Produces 1.2 CFM At 90 PSI
  • Recovery time from 90 PSI to 120 PSI - 15 Seconds
  • Tank fill rate from empty to full - 50 Seconds
  • Perfect for staple nail guns, airbrushes, inflating tires and much more
  • Oil-Free .6 HP rated/running, 1.2 HP Peak Motor
  • Operates at only 1680 RPM creating less noise and less wear
  • Large single-piston engineered for high performance and durability
  • Reliable & Durable
  • Thermal overload protector for maximum protection
  • 3000+ hour life cycle before wear; comparable units are 250 hours or less
  • 1-Gallon Steel Air Tank
  • Light weight at 29.5 pounds so it's easy to transport
  • Easy access tank drain simplifies maintenance; rubber feet reduce vibration
  • Roll Bar Handle
  • Protects unit without getting in the way; keeps unit balanced while you carry it
  • Convenient Controls
  • Pressure regulator is large and easy to access
  • Dual gauges let you monitor tank and tool pressure at a glance
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-1P1060S
specs product image PID-71881
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
56
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
4.5
Engine
HP
.6
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
1.2
CFM Rated @
90 PSI
CFM @ 40 PSI
1.6
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
120 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
1 Gallon
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
29.5 Pounds
Certification
ETL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
12.6 Inches
Product Width
15.1 Inches
Product Height
15 Inches
Power Type
Electric
UPC
743369710608
