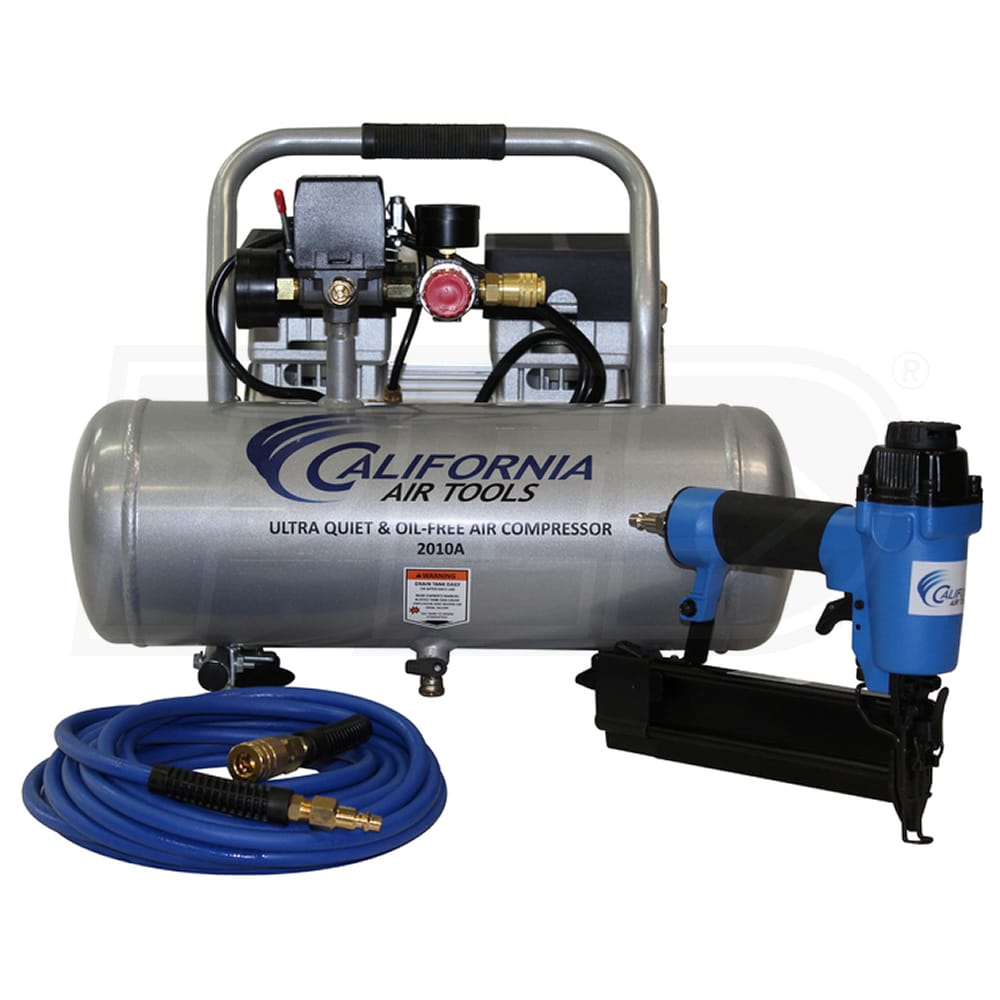

California Air Tools Ultra Quiet & Oil-Free 1-HP 2-Gallon Aluminum Tank Hot Dog Air Compressor w/ Nail Gun Kit

Model:

CAT-2010AGK18

Write A Review
$310.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

California Air Tools Ultra Quiet & Oil-Free 1-HP 2-Gallon Aluminum Tank Hot Dog Air Compressor w/ Nail Gun Kit
California Air Tools Ultra Quiet & Oil-Free 1-HP 2-Gallon Aluminum Tank Hot Dog Air Compressor w/ Nail Gun Kit
Model: CAT-2010AGK18
$310.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Hot Dog

CFM

2.20

Tank Size

2



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • 2010A Ultra Quiet Air Compressor
  • 60 dBA is ideal for indoor use where noise is an issue
  • Designed to be one of the quietest air compressors in the industry
  • Oil-Free Dual Piston Pump System
  • Works in a variety of temperatures and uneven terrains
  • 3000+ hour life cycle before wear; comparable units are 500 hours or less
  • Powerful 1-HP (Running) UL Motor (2-HP Peak)
  • Low 1680 RPM creates less noise & wear
  • Includes air filter to reduce dirt and dust in the system
  • Thermal Overload Protector
  • Protects the motor from overheating
  • 8.5 low amp draw works on most 110V household outlets
  • Designed For Increased Duty Cycles & Run Times
  • Time to fill tank from empty to full - 50 Seconds
  • Recovery time from 90 PSI to 120 PSI - 14 Seconds
  • 2-Gallon Rust-Free Aluminum Air Tank
  • Easy to transport and store at only 35.3 pounds
  • Manual tank drain for routine draining prevents air contamination

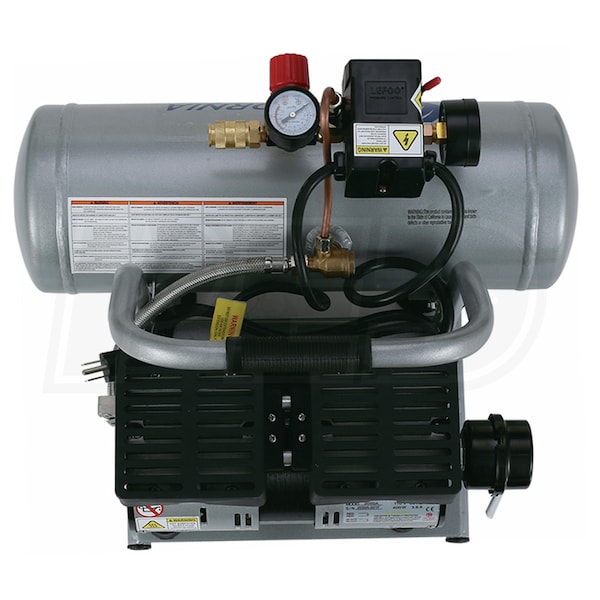

  • Top Mounted Controls
  • Dual gauges so you can check tank & tool pressure at a glance
  • 1/4" air outlet with a quick connector for fast hose changes

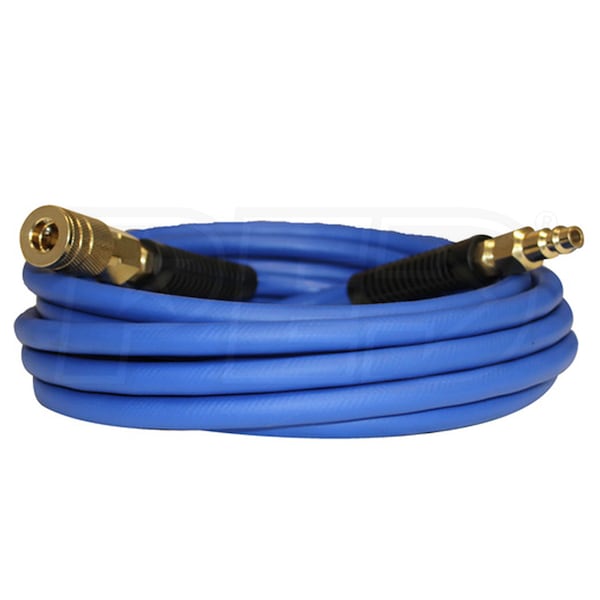

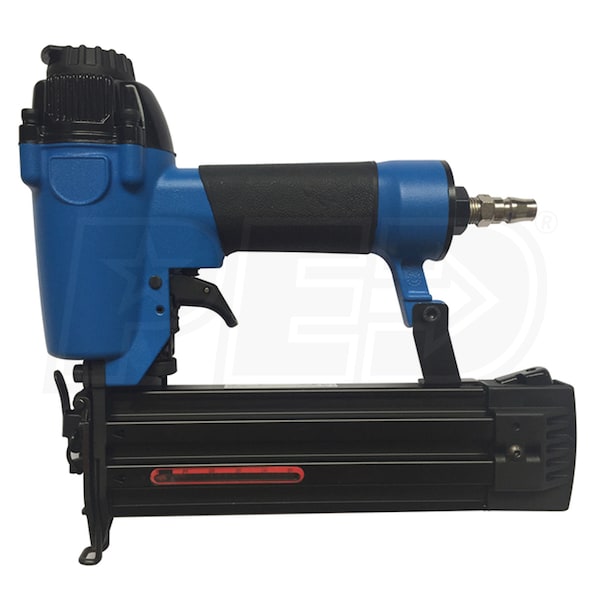

  • 18 Gauge Brad Nail Gun w/ 25-Ft Hybrid Air Hose
  • Designed for nailing trim, cabinetry and hobby/craft projects (3/8" - 2" brad nails)
  • Lightweight and very flexible hose with 2 air fittings attached
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-2010AGK18
specs product image PID-102859
General Information
Product Category
Air Compressor - Portable
Engine
HP
1
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
60
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
8.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.20
CFM Rated @
90 PSI
CFM @ 40 PSI
3.10
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
120 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
2 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
35.3 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
18.7 Inches
Product Width
14.2 Inches
Product Height
13.5 Inches
Power Type
Electric
UPC
850004451427
