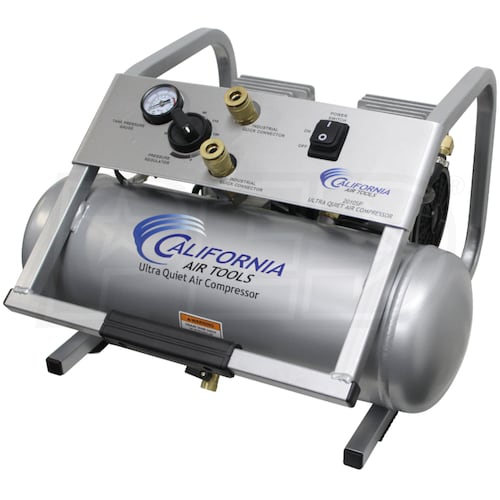

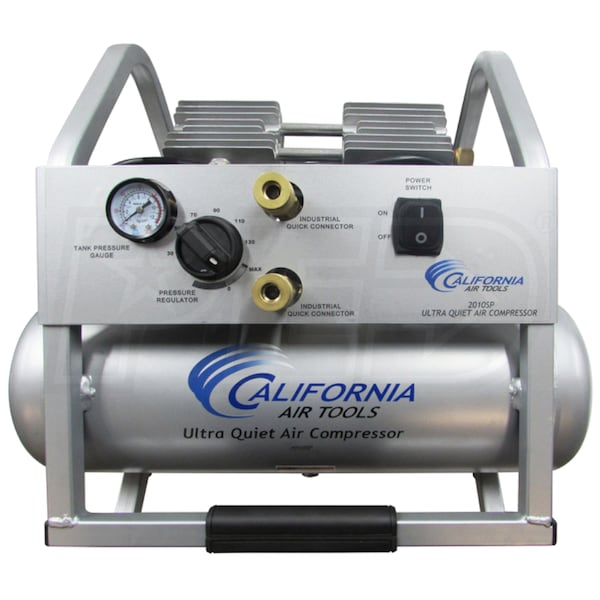

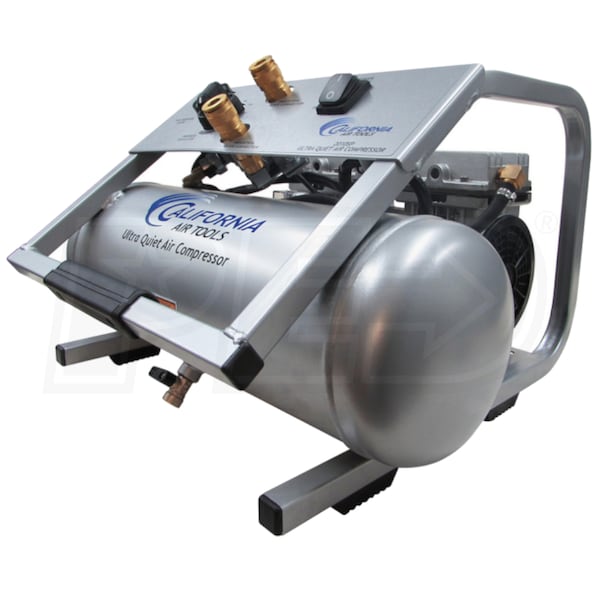

California Air Tools SP Ultra Quiet & Oil-Free 1-HP 2-Gallon Steel Tank Hot Dog Air Compressor
Model:
CAT-2010SP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Consumer
Style
Hot Dog
CFM
2.2
Tank Size
2
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 2010SP Ultra Quiet Air Compressor
- 60 dBA is ideal for indoor use where noise is an issue
- Designed to be one of the quietest air compressors in the industry
- Oil-Free Dual Piston Pump System
- Works in a variety of temperatures and uneven terrains
- 3000+ hour life cycle before wear; comparable units are 500 hours or less
- Powerful 1-HP (Running) UL Motor (2-HP Peak)
- Low 1680 RPM creates less noise & wear
- Includes air filter to reduce dirt and dust in the system
- Thermal Overload Protector
- Protects the motor from overheating
- 8.5 low amp draw works on most 110V household outlets
- Pre-Set PSI Positions - 30, 50, 70, 90, 100 & 130
- Makes it easy to set the right pressure for your task
- 70/30 Duty Cycle
- Maximum continuous running 30-60 min (Depending PSI & CFM)
- Time to fill tank from empty to full - 56 Seconds
- Recovery time from 105 PSI to 135 PSI - 15 Seconds
- 2-Gallon Steel Air Tank
- Easy to transport, low-profile design only 42 pounds
- Manual tank drain for routine draining prevents air contamination

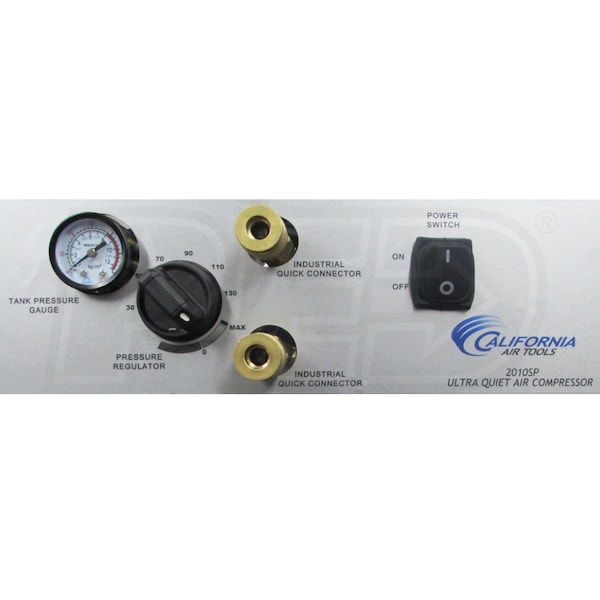

- Easy To Read, Top Mounted Control Panel
- Air-tank pressure gauge & push to start On/Off button
- (2) 1/4" air outlet with a quick connector for fast hose changes
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CAT-2010SP
General Information
Product Category
Air Compressor - Portable
Engine
HP
1
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
60
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
8.5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.2
CFM Rated @
90 PSI
CFM @ 40 PSI
3.1
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
70%
Tank
Tank Size
2 Gallons
Tank Included
Yes
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
42 Pounds
Certification
UL
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
18.4 Inches
Product Width
17.9 Inches
Product Height
12.4 Inches
Power Type
Electric
