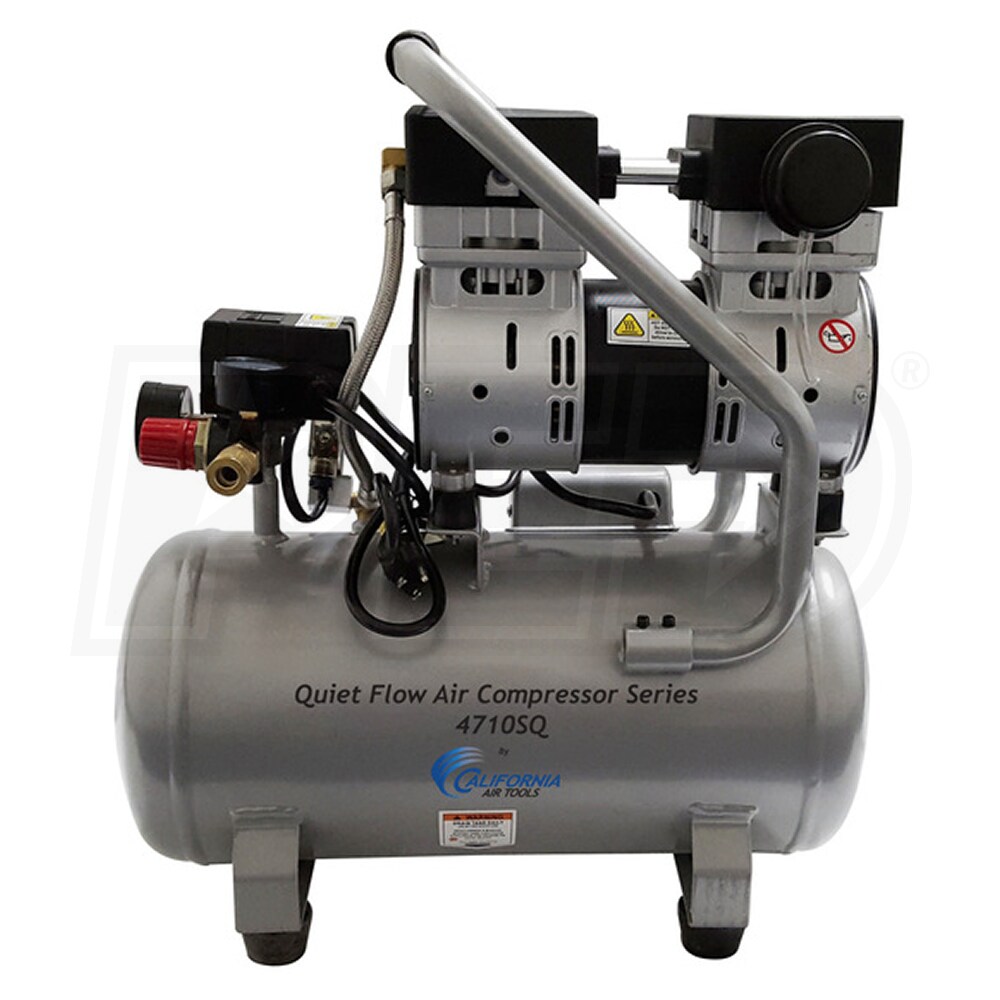

California Air Tools Quiet Flow SQ 1-HP 4.7-Gallon Steel Tank Air Compressor

Model:

CAT-4710SQ

Write A Review
$203.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
California Air Tools Quiet Flow SQ 1-HP 4.7-Gallon Steel Tank Air Compressor
California Air Tools Quiet Flow SQ 1-HP 4.7-Gallon Steel Tank Air Compressor
Model: CAT-4710SQ
$203.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Horizontal

CFM

2.10

Tank Size

4.7



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • High-Performance Quiet Flow SQ Series by California Air Tools
  • Specifically designed for the DIY & homeowner customer
  • Oil-Free allows you to use in different temperatures & terrains
  • 3000+ hour life cycle before wear; comparable units are 500 hours or less
  • Ultra-Quietness @ 60 Decibels
  • Designed to be one of the quietest air compressors in the industry
  • Great for powering indoor finish air tools
  • Ideal for anyone working indoors where noise is a major issue
  • Oil-Free Extra Large Dual Piston Pump
  • Produces 2.10 CFM @ 90 PSI; 3.10 CFM @ 40 PSI
  • Extra-large dual piston increases compression
  • Less maintenance and cost gets the job done faster
  • Designed For Increased Duty Cycles & Run Times
  • Less time to fill the tank - Only 106 seconds
  • Recovery time from 90 PSI to 120 PSI - 29 second
  • Engineered for longevity, high performance and durability
  • Powerful 1.0 HP (Rated / Running) 2.0 HP (Peak) Motor
  • Operates at only 1680 RPM creating less noise & less wear
  • Low RPM dissipates heat more efficiently
  • Air filter included for extra protection against dust and dirt
  • Thermal Overload Protector
  • Protects the motor from overheating
  • Low 8.5-amp draw works on most household outlets
  • 4.7-Gallon Steel Tank
  • Easy access tank drain simplifies maintenance
  • Light weight & easy to transport at only 43 pounds
  • Perfect for staple guns, brad nail guns, finish nail guns, nail guns, airbrushes & blow guns
  • Convenient Top Mounted Controls
  • Built-in regulator makes it easy to manage pressure
  • 1/4" air outlet with quick connector for fast tool changes
  • Large dual pressure gauges lets you check tank & tool pressure at a glance
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CAT-4710SQ
specs product image PID-83000
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
60
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
8.5
Engine
HP
1
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
2.10
CFM Rated @
90 PSI
CFM @ 40 PSI
3.10
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
120 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
4.7 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
43 Pounds
Consumer Warranty
1 Year
Product Length
19.5 Inches
Product Width
9.5 Inches
Product Height
24 Inches
Power Type
Electric
UPC
743369747109
