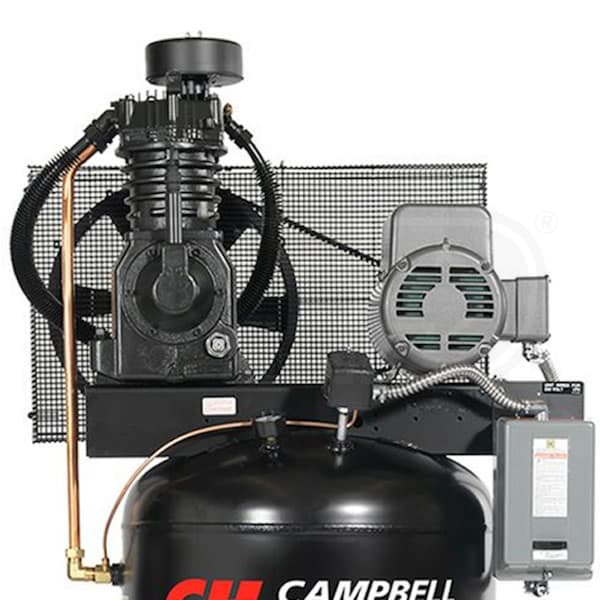

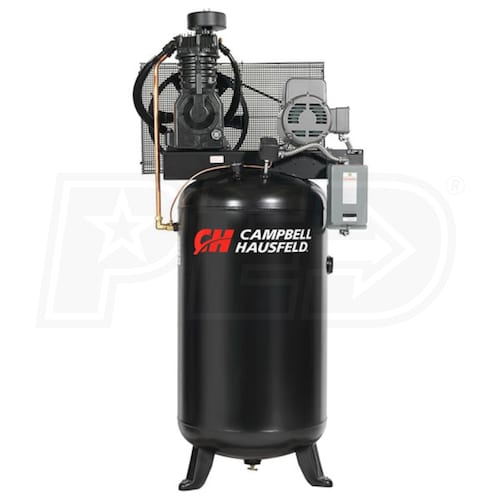

Campbell Hausfeld Commercial 5-HP 80-Gallon Two Stage Air Compressor (230V 1-Phase)

Model:

CE7050

Write a Review
$2,779.99
Free Shipping
&
Lift Gate
  Learn More About Free Freight
In-Stock
Ships from Campbell Hausfeld
Shipping to60601
Campbell Hausfeld Commercial 5-HP 80-Gallon Two Stage Air Compressor (230V 1-Phase)
Campbell Hausfeld Commercial 5-HP 80-Gallon Two Stage Air Compressor (230V 1-Phase)
Model: CE7050
$2,779.99
Features
Specifications
Reviews
Product Q&A
Accessories
How-To Articles
Manuals
Share

Features

Grade

Commercial

Style

Two Stage 1-Phase

CFM

16.4

Tank Size

80

  • Commercial Grade Two Stage Air Compressor
  • Ideal for auto repair facilities and tire repair outlets
  • Rugged Cast Iron Oil Lubricated Two Stage Pump
  • Made for heavy duty commercial & industrial applications
  • Delivers Up To 15,000+ Hours Of Pump Life
  • Based on B-10 bearing rating
  • Durable stainless steel valves & ductile iron crankshaft
  • Reliable precision balanced flywheel & low pump RPM
  • 5 Horsepower 230 Volt Single Phase NEMA Motor
  • Totally enclosed metal belt guard for safety
  • Pre-installed and wired starter
  • 80 Gallon ASME Code Tank
  • Certified to 175 PSI maximum pressure for safe operation
  • Pressure Switch For Automatic Stop/Start Operation
  • Fits into many professional operations
  • Viton High Temperature O-Rings
  • Superior high pressure sealing compared to paper-type gaskets
  • Advanced design for leak proof sealing
  • Exceptional 3 Year Warranty On Tank & Pump
  • 1 year warranty on all other components
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

CE7050
specs product image PID-11037
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
16.4
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
540 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
35 Inches
Product Width
42 Inches
Product Height
78 Inches
Power Type
Electric
UPC
045564628406
