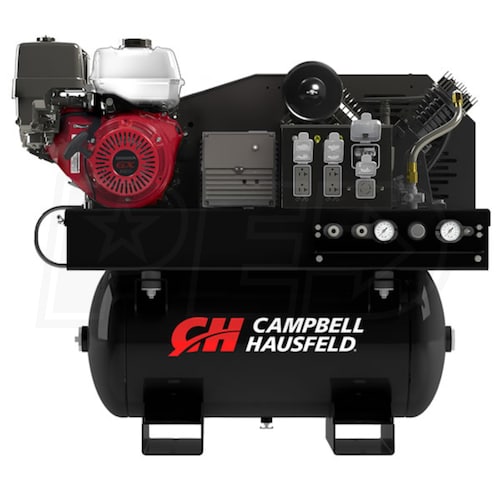

Campbell Hausfeld Commercial 11-HP 30-Gallon Two-Stage Truck Mount 2-In-1 Air Compressor / Generator w/ Honda Engine
Model:
GR2200
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
13.7
Tank Size
30
- 2-In-1 Air Compressor / Generator
- Ideal for jobsite, mobile services, & maintenance departments
- Two-Stage Cast Iron Air Compressor Pump
- Produces 14.3 CFM at 90 PSI, 13.7 CFM at 175 PSI
- 100% duty cycle powers a wide variety of tools
- 5000 Watt (6000 Watt Surge) Generator
- Provides power for jobsite needs, offers safe interaction

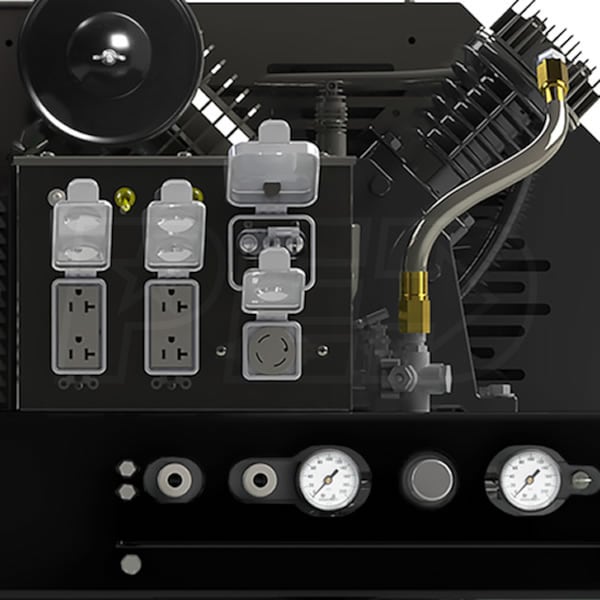

- Features (2) 120V 20 Amp duplex outlets (NEMA 5-20R) & (1) 120/240V 30 Amp twistlock (NEMA L14-30R)
- (Note: 12V power source for starting not included)
- Honda GX390 Engine
- Commercial-grade 389cc engine supplies easy starting, reliable power
- UL & OSHA Compliant Panel And GFCI Protection
- Two 1/4" QC & one 3/8" full-flow connector let you run multiple tools at once
- Check tool & tank pressure at a glance with 2 front-mounted gauges
- 30 Gallon Air Tank
- Steady air delivery for larger projects
- Heavy Duty 14-Gauge Steel Belt Guard
- Sturdy protection for the belt & operator; unbolts for easy access
- 3 Year Factory Warranty
- Protects your investment
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
GR2200
General Information
Product Category
Air Compressor - Portable
Engine
HP
13
CC
389
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
13.7
CFM Rated @
175 PSI
CFM @ 40 PSI
15.2
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
100%
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
506 Pounds
Certification
UL, OSHA
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
49 Inches
Product Width
23 Inches
Product Height
42 Inches
Power Type
Gas
UPC
045564637613
