Chicago Pneumatic 15-HP 200-Gallon Two-Stage Duplex Air Compressor (460V 3-Phase)

Model:

RCP-15203D4

Write a Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Chicago Pneumatic 15-HP 200-Gallon Two-Stage Duplex Air Compressor (460V 3-Phase)
Chicago Pneumatic 15-HP 200-Gallon Two-Stage Duplex Air Compressor (460V 3-Phase)
Model: RCP-15203D4
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Joshua, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Style

Two Stage 3-Phase (460 Volts)

CFM

50.5

Tank Size

200



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Two Stage, Two Motors, Two Pumps With Alternator
  • Delivers 50.5 CFM at 100 PSI; 175 PSI maximum pressure
  • Pumps can work together or separately for optimum performance
  • Two 7.5-HP Electric Motors With Magnetic Starters
  • Built in redundancy makes sure you get the job done
  • Alternating controls for balanced unit wear & performance
  • Both motors working together produce 15-HP

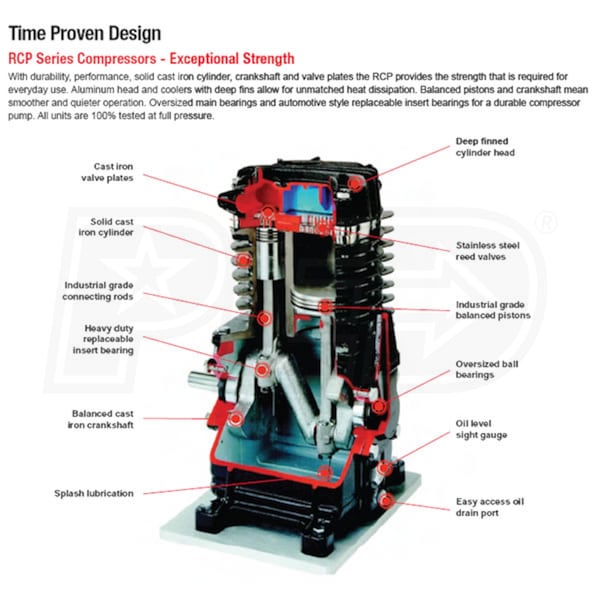

  • Solid Cast Iron Cylinder, Crankshaft & Valve Plates
  • Rugged components provide long-lasting dependability
  • Aluminum Heads & Deep Finned Cooling
  • Unmatched heat dissipation for longer pump life
  • All Units 100% Tested At Full Pressure
  • Provides strong & reliable performance
  • ASME Tank & Safety Valves
  • 200 gallon air reserve for big jobs and multiple users
  • Fully Enclosed Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

RCP-15203D4
specs product image PID-11439
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
15
Pump
CFM
50.5
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage - Dual Pump
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
200 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Overview
Weight
1053 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
86 Inches
Product Width
32 Inches
Product Height
62 Inches
Power Type
Electric
