Chicago Pneumatic 7.5-HP 80-Gallon Two-Stage Compressor (208-230V 3-Phase) Premium Package

Chicago Pneumatic 7.5-HP 80-Gallon Two-Stage Compressor (208-230V 3-Phase) Premium Package
Our Price
Compare Prices
Shipping Info
Model: RCP-7583H
$2,299.99
Factory-Direct
Ships in 2-5 Business Days
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$75.00
Free Shipping$2,299.99Buy Now
$2,374.99Visit Site
Factory-Direct
Ships in 2-5 Business Days
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Grade
Commercial
Style
208-230 Volt AC
CFM
23
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
23 CFM Rated @ 100 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 2 Stage Air Compressor
  • Delivers 23 CFM at 100 PSI; 175 PSI maximum pressure

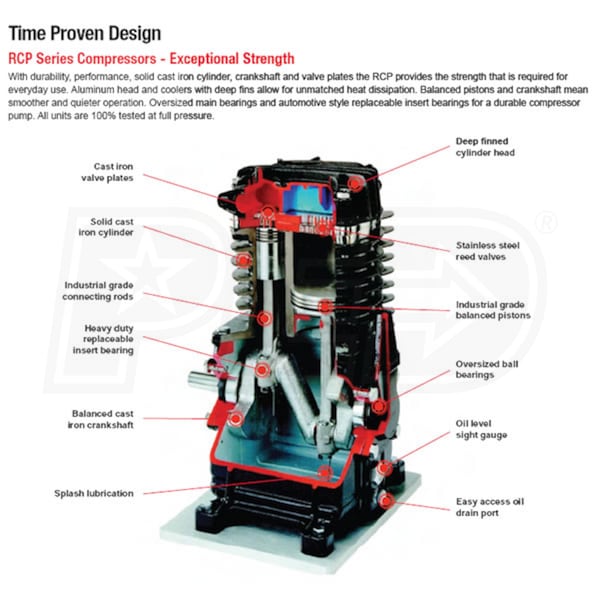

  • Solid Cast Iron Cylinder, Crankshaft & Valve Plates
  • Rugged components provide long-lasting dependability
  • Aluminum Head & Deep Finned Cooling
  • Unmatched heat dissipation for longer pump life
  • Low oil level switch protects the pump
  • All Units 100% Tested At Full Pressure
  • Provides strong & reliable performance
  • Triple Pass Pump Mounted Aftercooler
  • Cooler air carries less moisture to your tools
  • Fully Enclosed Belt Guard
  • Protects the belt & the operator
  • Automatic Tank Drain
  • Makes tank simple to maintain
  • 208 Volt Or 230 Volt Three-Phase Power
  • Easily wires into either your 208V-3 or 230V-3 system
  • CPXHT25 dryer recommended (not included)
  • 2 Year Factory Warranty
  • Supported by a network of trained service technicians
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
40 Amp Breaker
Engine
HP
7.5
Pump
CFM
23
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
491 Pounds
Product Length
71 Inches
Product Width
24 Inches
Product Height
49 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
Grade
Commercial
Style
208-230 Volt AC
CFM
23
CFM Rated @ 100 PSI
Tank Size
80
Gallons
Grade
Commercial
CFM
23 CFM Rated @ 100 PSI
Tank Size
80 Gallons


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • 2 Stage Air Compressor
  • Delivers 23 CFM at 100 PSI; 175 PSI maximum pressure
  • Solid Cast Iron Cylinder, Crankshaft & Valve Plates
  • Rugged components provide long-lasting dependability
  • Aluminum Head & Deep Finned Cooling
  • Unmatched heat dissipation for longer pump life
  • Low oil level switch protects the pump
  • All Units 100% Tested At Full Pressure
  • Provides strong & reliable performance
  • Triple Pass Pump Mounted Aftercooler
  • Cooler air carries less moisture to your tools
  • Fully Enclosed Belt Guard
  • Protects the belt & the operator
  • Automatic Tank Drain
  • Makes tank simple to maintain
  • 208 Volt Or 230 Volt Three-Phase Power
  • Easily wires into either your 208V-3 or 230V-3 system
  • CPXHT25 dryer recommended (not included)
  • 2 Year Factory Warranty
  • Supported by a network of trained service technicians
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
40 Amp Breaker
Engine
HP
7.5
Pump
CFM
23
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
491 Pounds
Product Length
71 Inches
Product Width
24 Inches
Product Height
49 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
Product Specs
+
Specifications
Motor
Voltage
208-230 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
40 Amp Breaker
Engine
HP
7.5
Pump
CFM
23
CFM Rated @
100 PSI
Pump Material
Aluminum w/ Cast Iron Sleeve
Pump Type
Two-Stage
Max PSI
175 PSI
Oil Sight Glass
Yes
After Cooler
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Yes
Tank Orientation
Horizontal
Overview
Certification
ASME
Weight
491 Pounds
Product Length
71 Inches
Product Width
24 Inches
Product Height
49 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Power Type
Electric
