DeWalt 2-HP 25-Gallon (Belt Drive) Portable Air Compressor (120V 1-Phase)
Model:
DXCM251.COM
+
Share This Product
Similar Products
$848.00
$783.00
$899.00
$719.00
$879.00
$879.00
$1,009.00
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
7
Model: TRI-GD-1100P-GL
$65.00
Factory-Direct
Model: TRI-GD-2100P-GL
$95.00
Factory-Direct
Model: DXCM024-0400
$281.00
Factory-Direct
Model: 072-0030IA
$133.00
Factory-Direct
Model: 072-0023RP
$28.00
Factory-Direct
Model: HRRUB380253
$79.97
Factory-Direct
Model: M1406-5
$22.99
Factory-Direct
Features
Grade
Contractor
Style
Portable - Vertical
CFM
6.2
Tank Size
25
- Dewalt 120-Volt Portable Air Compressor
- 73dBA is ideal for indoor use where noise is an issue
- Quiet operation brings less noise to your work environment
- Oil Lubricated 2 Cylinder Cast Iron Pump
- Aluminum pump head to dissipate heat
- High efficiency flywheel fan provides lower operating temperatures
- Develops 6.2 CFM @ 90 PSI; 7.7 CFM @ 40 PSI
- Plenty of power to run a wide range of air tools
- Dual gauges & pressure regulator provides consistent pressure to tools
- Durable 2-HP Belt-Drive Motor
- Delivers smooth power transfer & long service life
- Designed for maximum performance and efficiency
- Impressive 200 Maximum PSI
- Fast recovery time results in increased project efficiency
- 76% Longer air tool runtime versus 30-gallon 155 PSI belt drive compressors
- 25-Gallon Vertical Steel Air Tank
- Compact design for easy portability to job sites
- Perfect for larger projects, spray painting, HVLP spray gun, blow guns, brad and nail guns
- Sturdy 10-Inch Pneumatic Tires
- Easy to move around garage or workshop
- Great for uneven terrains & dampens vibration
- 1-Year Factory Warranty
- Covers defect in materials & workmanship
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DXCM251.COM
General Information
Product Category
Air Compressor - Portable
Engine
HP
2
Motor
Voltage
120 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
73
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
6.2
CFM Rated @
90 PSI
CFM @ 40 PSI
7.7
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
25 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
155 Pounds
Certification
CSA, UL
Consumer Warranty
2 Years
Product Length
26 Inches
Product Width
24 Inches
Product Height
49 Inches
Power Type
Electric
UPC
846212077696
Additional Model Numbers
DXCM251, DXCM251.COM
Reviews
(10)
DeWalt DXCM251.COM Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.70
(10 Ratings)
91% recommend this product
5
(7)
(7)4(3)
(3)3(0)
(0)2(0)
(0)1(0)
(0)
Great Little Compressor
By Thomas G.
Illinois
Purchased 02/29/2024 |
Review Posted 03/28/2024
So far is preforming as advertised. I like it. It's quiet and regains pressure in a reasonable time frame.
Thomas G. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
4/5
5/5
Pros:
Easy To Use, Price
Cons:
None
Great Compressor
By Andre P
Tennessee
Purchased 11/27/2023 |
Review Posted 12/19/2023
This is a great compressor, it is just the right size for my needs. I was using my die grinder and this never ran out of air. And it is so quiet that you can hear someone talk to you.
Andre P Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, High Quality, Exceeded Expectations, Quiet
Cons:
None
Off To A Bad Start
By Robert B.
Crystal River, Florida
Purchased 06/10/2021 |
Review Posted 07/23/2021

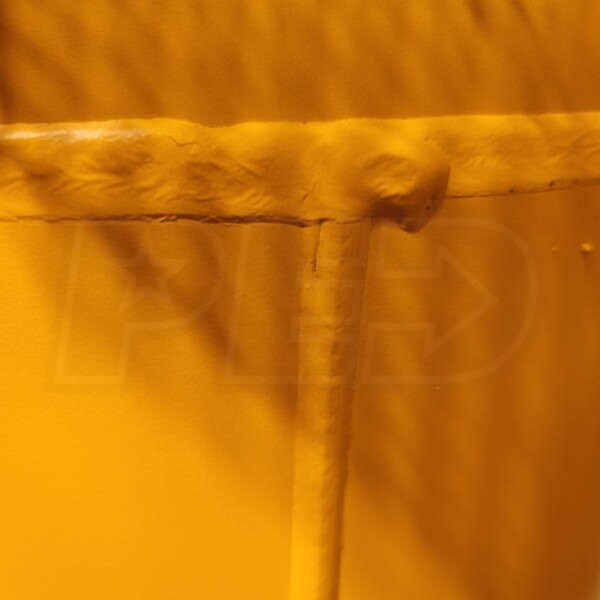

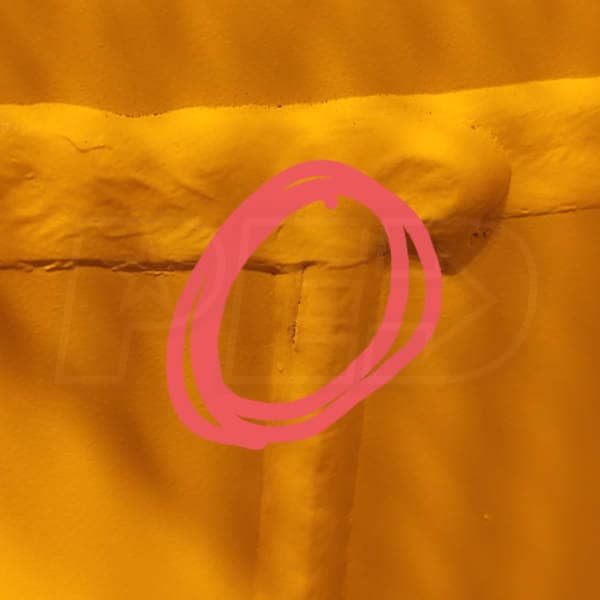

Would I recommend it? I don't know. First one arrived (drop shipped) with a bad weld in the tank and wouldn't build pressure. Really? Not tested before leaving assembly? PED made it right and had a replacement shipped in a timely manner.
Robert B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
3/5
4/5
3/5
Pros:
Quiet, Features
Cons:
Faulty weld from factory
A Good-performing Air Compressor For The Price.
By Elizabeth P.
Phoenixville, Pennsylvania
Review Posted 06/18/2021
After much research, I went for this model because it closely matched the specs on my Craftsman 240v 20 Gallon 2 HP twin that I bought when I was 17. (The tank rotted out and the pump is making "funny" noises. (I'm 64 now!)
The Dewalt is much quieter. It is also 120 volts. The pipe ports are 1/4" as opposed to my old one at 3/8", but I don't notice a difference in the output. This one also runs up and shuts off at 200 PSI as opposed to my old one shutting off at 150 PSI.
Overall, the construction is better, especially the pump as it is cast iron and the old one was aluminum. The main thing I don't like is cosmetic as the belt guard is resonating when it runs. I can stop it (the shaking) by just putting my hand on it, so it looks like I need to make a stiffener bracket as the guard only has one in the middle. I'll know more in a year or two after I use it "hard" a few times, but I believe it is definitely better (and quieter) than the one I replaced. I would recommend this product to my friends.
The Dewalt is much quieter. It is also 120 volts. The pipe ports are 1/4" as opposed to my old one at 3/8", but I don't notice a difference in the output. This one also runs up and shuts off at 200 PSI as opposed to my old one shutting off at 150 PSI.
Overall, the construction is better, especially the pump as it is cast iron and the old one was aluminum. The main thing I don't like is cosmetic as the belt guard is resonating when it runs. I can stop it (the shaking) by just putting my hand on it, so it looks like I need to make a stiffener bracket as the guard only has one in the middle. I'll know more in a year or two after I use it "hard" a few times, but I believe it is definitely better (and quieter) than the one I replaced. I would recommend this product to my friends.
Elizabeth P. Recommends This
Was this review helpful?
Rating Breakdown
4/5
3/5
4/5
3/5
Pros:
Quiet, Id Buy It Again, Fast, Easy To Store
Excellent Compressor!!!!
By David K.
Ocala, Florida
Purchased 05/12/2021 |
Review Posted 06/08/2021
Excellent compressor I had to send the 1st one back due to freight shipper damage. Power Equipment Direct was incredible the way they arranged for pickup and replacement so crazy fast. Thank You. The DXCM251 is a perfect air compressor, great quality, Assembled in the USA, Thank You DeWalt!
David K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, High Quality, Price, Reliable
Cons:
Packaging
Very Satisfied
By Mark A
Omaha, Nebraska
Purchased 02/24/2021 |
Review Posted 03/25/2021
Shipping was great. The product arrived upright and packaged properly.
Break-in was a snap and the compressor runs nice and quiet. So far, it is everything I was looking for. It replaced an oil-less Campbell Hausfeld that had gotten extremely noisy and has been a blessing.
Yes, I would recommend this to others looking for a good compressor.
Also, I would highly recommend ordering the extended tank drain hose and valve.
Break-in was a snap and the compressor runs nice and quiet. So far, it is everything I was looking for. It replaced an oil-less Campbell Hausfeld that had gotten extremely noisy and has been a blessing.
Yes, I would recommend this to others looking for a good compressor.
Also, I would highly recommend ordering the extended tank drain hose and valve.
Mark A Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
4/5
4/5
Pros:
Easy To Use, Quiet, Id Buy It Again
Super compressor
By Randolph S.
Dunnellon, Florida
Purchased 10/01/2020 |
Review Posted 10/26/2020
Works great, the first one damaged by freight company BUT Air Compressors Direct had me a new one in 5 days, great customer relations great company.
Randolph S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Quiet, Exceeded Expectations, High Quality
Very Good
By Roger W.
Elbow Lake, Minnesota
Purchased 09/02/2020 |
Review Posted 09/25/2020
Great product.
Roger W. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Easy To Use, Quiet, High Quality
Cons:
Heavy
DeWalt - I Expect Better Than This
By Terry F.
Oklahoma City,, Oklahoma
Review Posted 08/25/2020
The switch and motor are rated for 240 Volts but nowhere on the compressor motor, on the compressor or in the compressor manual is information on how to change from 120 to 240 volts.
How could DeWalt miss such a big oversight? Hopefully, this is not an indication that the DeWalt name no longer means Quality.
How could DeWalt miss such a big oversight? Hopefully, this is not an indication that the DeWalt name no longer means Quality.
Terry F. Recommends This
Was this review helpful?
Expert Response
Hello Terry, thank you for your purchase of the DeWalt 2-HP 25-Gallon (Belt Drive) Portable Air Compressor (120V 1-Phase). Per the manual the input on this compressor is only 120V and only have that voltage listed in the product description on our site. We recommend you contact DeWalt at 1-888-895-4549 for additional information on this.
We appreciate your business and we're confident the DeWalt folks will take good care of you.
We appreciate your business and we're confident the DeWalt folks will take good care of you.
Melissa C.
Air Compressor Expert
Rating Breakdown
5/5
5/5
4/5
4/5
Pros:
Features, Easy To Use
Cons:
Bad Instructions
Most Powerful Portable Air Compressor Available.
By Paul Z.
Madison, Wisconsin
Purchased 01/02/2020 |
Review Posted 01/28/2020
Most powerful portable air compressor available, can run a media blaster intermittently. I changed the tank drain to a large one that protrudes the tank and will be putting solid wheels.
Paul Z. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Exceeded Expectations, Fast, Reliable, Id Buy It Again
Cons:
Flywheel is unbalanced
