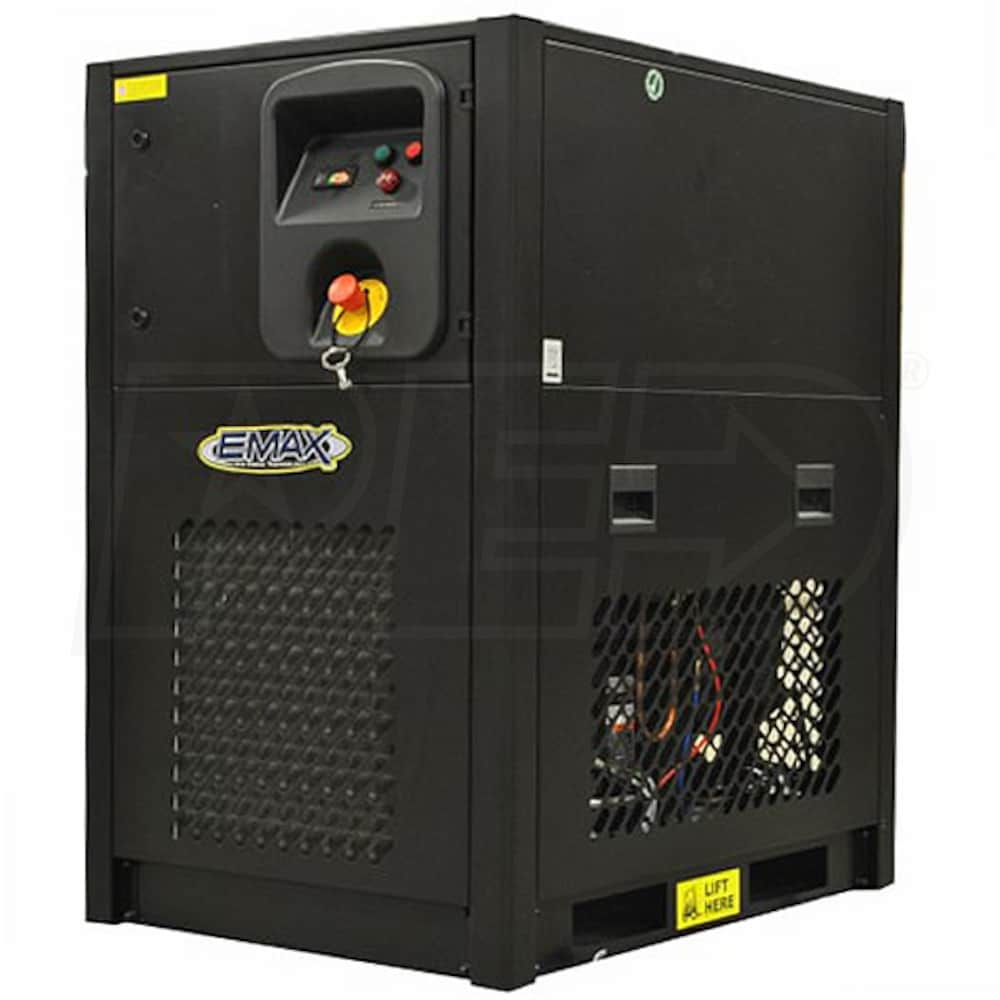

EMAX Industrial 460V-3 Refrigerated Air Dryer 40HP - 60HP (288 CFM)

EMAX Industrial 460V-3 Refrigerated Air Dryer 40HP - 60HP (288 CFM)
Model: EDRCF4600288
$7,817.00
Factory-Direct
Ships in 2-3 Weeks
Factory items ship direct from the manufacturer.
Shipping times vary.
Free Shipping
Add-Ons
+$50.00
Free Shipping$7,817.00Buy Now
$7,867.00Visit Site
Factory-Direct
Ships in 2-3 Weeks
Free Freight
Free Freight
Lift Gate Services
Lift Gate Service
*We currently CANNOT ship this product to Alaska, Hawaii or any destination outside of the United States
Share
  • Product Description
  • Reviews
  • Product Q&A
  • Recommended Accessories
  • How-To Articles
  • Manuals
Product Description
+
Style
Refrigerated
Air Dryer CFM
288
Style
Refrigerated
Air Dryer CFM
288


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Premium Industrial 288 CFM Refrigerated Air Dryer
  • Chills the air to condense & remove moisture; runs on 460 Volt, 3-phase, 14 Amp power
  • 230 PSI maximum; maximum inlet temp: 150F; 37F - 50F dewpoint; designed for 2" pipe
  • Maximum ambient temperature: 120F; for use with compressors that do not have aftercoolers
  • 5 Micron Pre-Filter
  • Removes larger dust & dirt particles from the air supply so the dryer can work more efficiently
  • 1 Micron Active Coalescing Filter
  • Removes oil & water particles from the air; cleaner, drier air improves tool life & project results
  • Refrigerated Air Inlet Inner Cooler
  • Trouble-free high temperature cooling for consistent, dry air
  • Automatic Drain System
  • Eliminates the need for daily maintenance
  • Outlet Air Baffle Heater
  • Prevents condensation on outlet air piping
  • Side Mounted Condenser & Fan Motor
  • Easy to reach & service through the cabinet doors- no screws to slow you down
  • Uses environmentally friendly 134A refrigerant
  • Heavy Duty Steel Cabinet & Safety Shut-Off Valve
  • Meets the demands of industrial use; valve shuts the compressor down if it gets over or below a safe temperature
  • 2 Year Limited Factory Warranty; 5 Years On Heat Exchanger
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
14
Air Dryer
Air Dryer CFM
288
Max Inlet Rating
150
Max Ambient Rating
120
Non-Cycling
Yes
Inlet Fittings
2"
Outlet Fittings
2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
Yes
Wall Mountable
No
Alarm Lights
No
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
480 Pounds
Product Length
26 Inches
Product Width
42 Inches
Product Height
54 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
815002013831
Style
Refrigerated
Air Dryer CFM
288
Style
Refrigerated
Air Dryer CFM
288


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

Features
Features
  • Premium Industrial 288 CFM Refrigerated Air Dryer
  • Chills the air to condense & remove moisture; runs on 460 Volt, 3-phase, 14 Amp power
  • 230 PSI maximum; maximum inlet temp: 150F; 37F - 50F dewpoint; designed for 2" pipe
  • Maximum ambient temperature: 120F; for use with compressors that do not have aftercoolers
  • 5 Micron Pre-Filter
  • Removes larger dust & dirt particles from the air supply so the dryer can work more efficiently
  • 1 Micron Active Coalescing Filter
  • Removes oil & water particles from the air; cleaner, drier air improves tool life & project results
  • Refrigerated Air Inlet Inner Cooler
  • Trouble-free high temperature cooling for consistent, dry air
  • Automatic Drain System
  • Eliminates the need for daily maintenance
  • Outlet Air Baffle Heater
  • Prevents condensation on outlet air piping
  • Side Mounted Condenser & Fan Motor
  • Easy to reach & service through the cabinet doors- no screws to slow you down
  • Uses environmentally friendly 134A refrigerant
  • Heavy Duty Steel Cabinet & Safety Shut-Off Valve
  • Meets the demands of industrial use; valve shuts the compressor down if it gets over or below a safe temperature
  • 2 Year Limited Factory Warranty; 5 Years On Heat Exchanger
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
14
Air Dryer
Air Dryer CFM
288
Max Inlet Rating
150
Max Ambient Rating
120
Non-Cycling
Yes
Inlet Fittings
2"
Outlet Fittings
2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
Yes
Wall Mountable
No
Alarm Lights
No
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
480 Pounds
Product Length
26 Inches
Product Width
42 Inches
Product Height
54 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
815002013831
Product Specs
+
Specifications
Motor
Voltage
460 Volt AC
Phase
3-Phase
Magnetic Starter
Yes
Amp Draw
14
Air Dryer
Air Dryer CFM
288
Max Inlet Rating
150
Max Ambient Rating
120
Non-Cycling
Yes
Inlet Fittings
2"
Outlet Fittings
2"
Aftercooler
No
Pre-Filter
Yes
Post-Filter
Yes
Wall Mountable
No
Alarm Lights
No
Auto Drain
Yes
Regenerative
No
High Temp
Yes
Overview
Weight
480 Pounds
Product Length
26 Inches
Product Width
42 Inches
Product Height
54 Inches
Consumer Warranty
2 Years
Commercial Warranty
2 Years
UPC
815002013831
