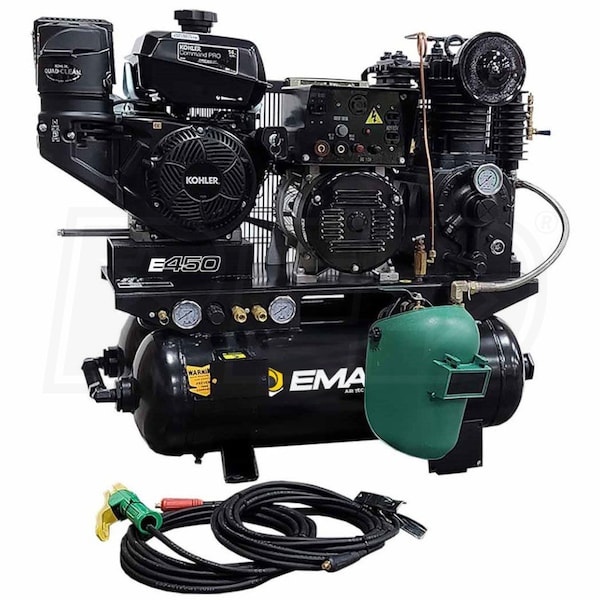

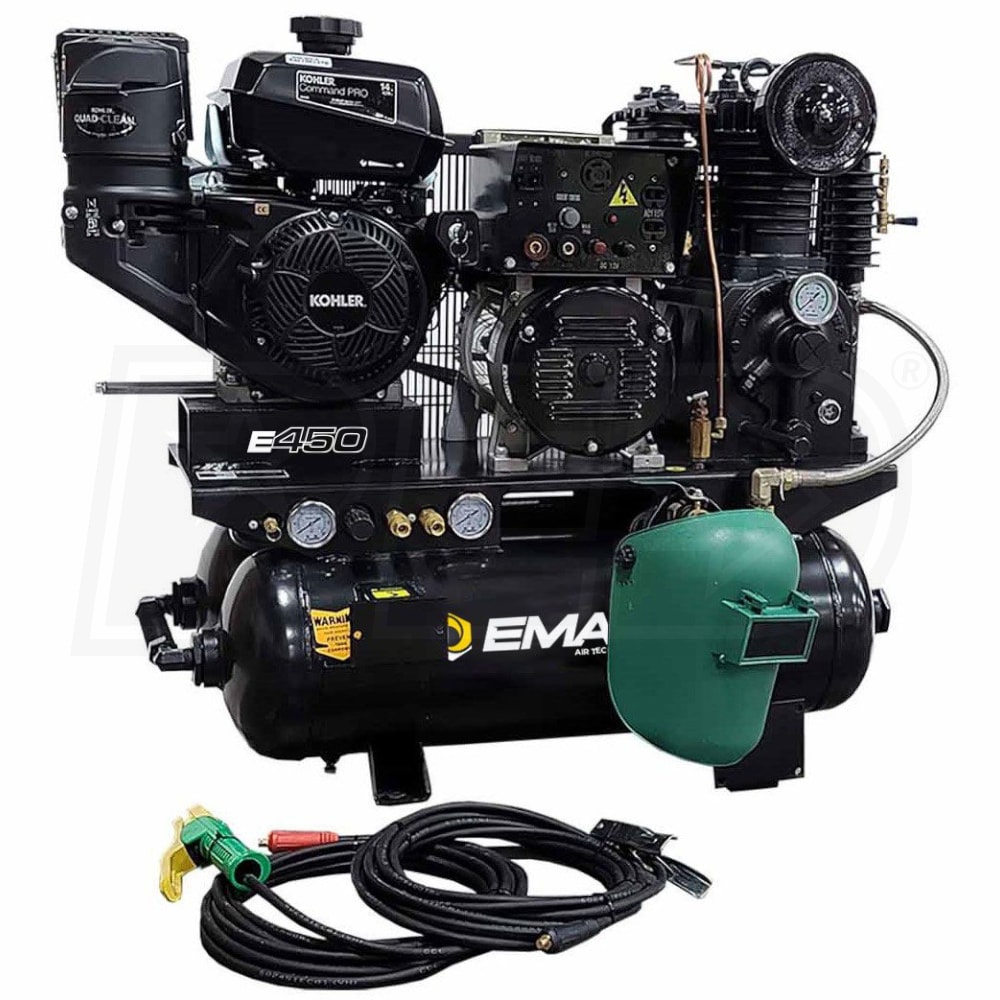

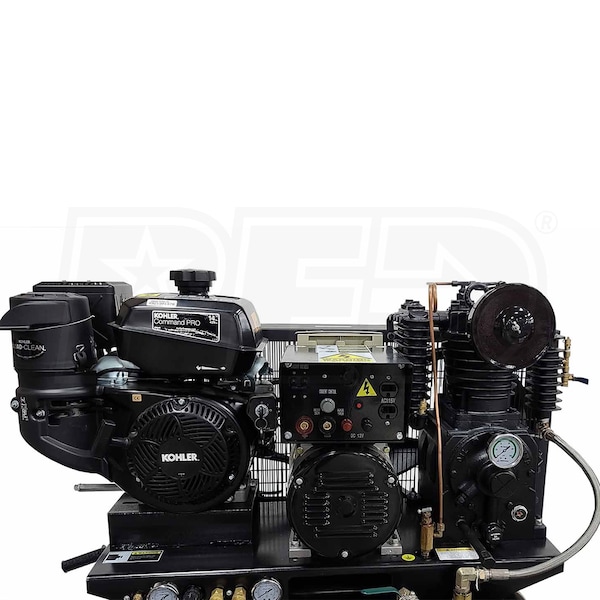

EMAX 14-HP 20-Gallon 3-In-1 Pressure Lubricated Gas Wheelbarrow Air Compressor, Generator & Welder w/ Kohler Engine
Model:
EGES14020T
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Joshua, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Wheel Barrow
Engine Brand
Kohler
CFM
17
Tank Size
20
- EMAX 3-In-1 Piston Air Compressor / Generator / Welder
- For commercial & industrial applications on a jobsite or on the go
- 5 HP Two-Stage Cast Iron Piston Air Compressor Pump

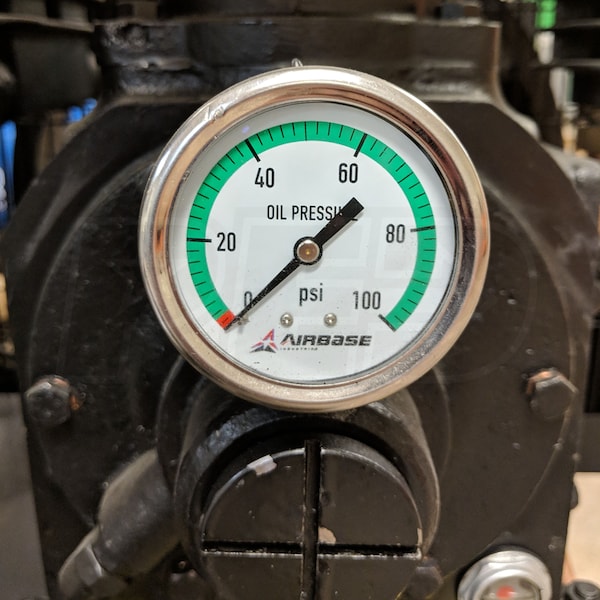

- Pressure-lubricated designed provides added protection
- Industrial disc valves for increased life & simple maintenance
- Pump takes slightly under 1 quart of oil
- 5000 Watt (6000 Watt Surge) Generator
- Great for providing power on the job

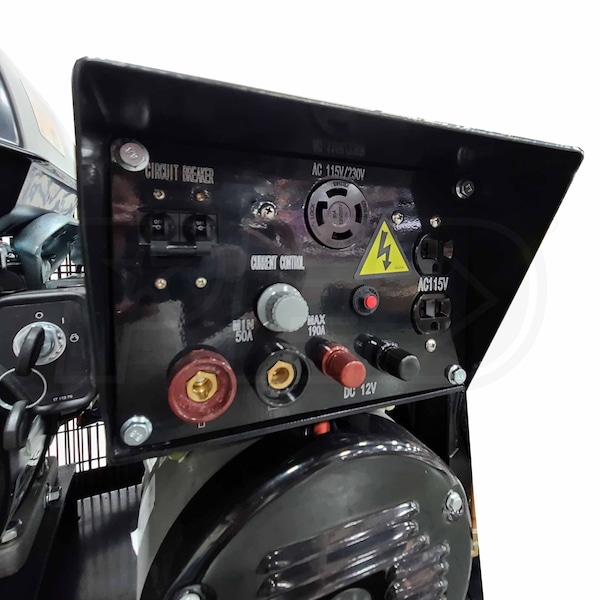

- (2) 120V 20-Amp Outlets & (1) 120/240V 30-Amp Twistlock Outlet
- 190-Amp DC Stick Welder
- Standard 25' leads for ease of use

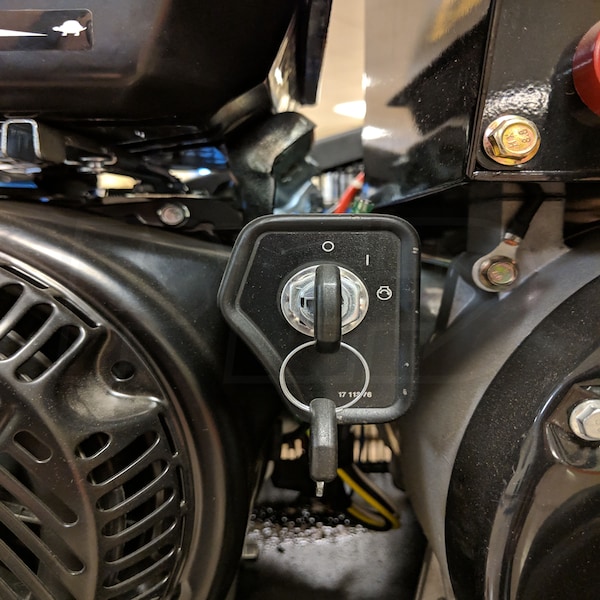

- 14 HP Kohler Command Pro Engine w/ Electric Start*
- Forged-steel crankshaft & cast-iron cylinder liner
- Quad-Clean™ all-season four-stage cyclonic air filter
- 20-Gallon Air Storage
- Twin 10-Gallon ASME storage tanks
- Also Includes

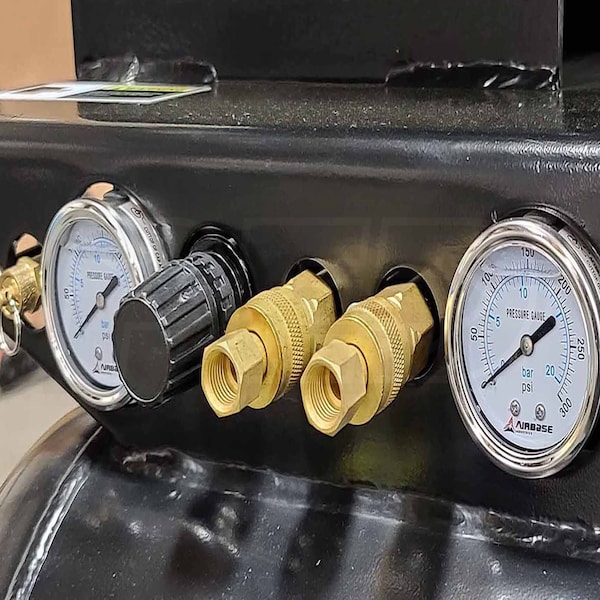

- Built-in regulator, Liquid filled gauges & Quick disconnect
- 5-Year Parts Warranty
- *Note - Includes Starting Battery
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
EGES14020T
General Information
Product Category
Air Compressor - Portable
Engine
HP
14
Auto Idle
No
Engine Brand
Kohler
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
No
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
17
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Full Pressure Lubrication
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
20 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
780 Pounds
Certification
ASME
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
34 Inches
Product Width
42 Inches
Product Height
38 Inches
Power Type
Gas
UPC
815002017013
