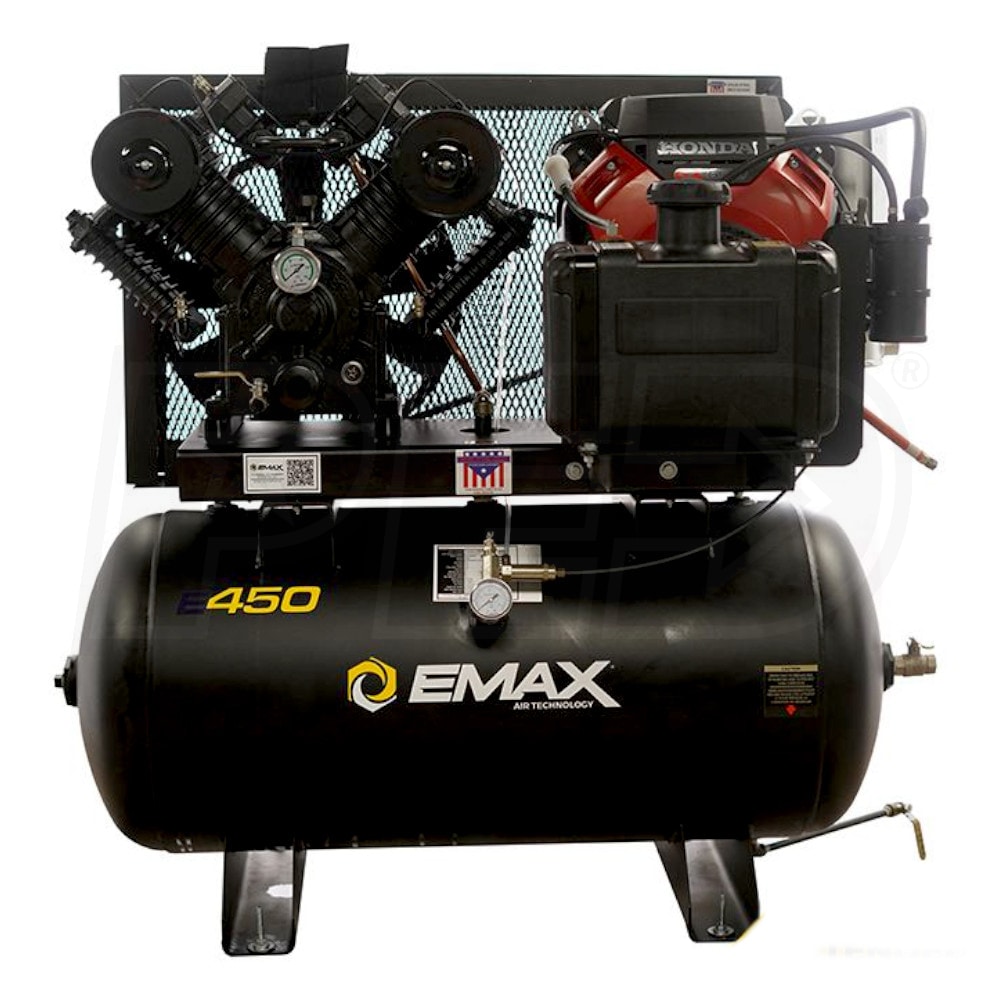

EMAX 18-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: EGES1830ST
+
Share This Product
-
Product Description
-
4Reviews
-
2Product Q&A
-
Recommended Accessories
-
How-To Articles
-
Manuals
Product Description
+−
Grade

Style

Engine Brand

CFM
39
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
39 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- Gas Drive Series Two-Stage Cast Iron Pump
- Quiet, low RPM design
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
- 18-HP Honda GX Engine w/ Electric Start
- OHV design provides excellent torque and fuel efficiency
- Provides long life and proven durability
- 5 gallon gas tank lets you work longer between refills
- Flow-Tek - Concentric Disc Valves
- Delivers maximum air flow & reliability with low replacement cost
- Cool-Tek - The Coolest Running Compressors In The Industry
- 35% lower operating temperature
- Reduces moisture build up & extends pump life
- Air-Stream Technology
- Provides up to 50% longer pump life
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life
- Gate Valve Oil Drain
- Provides quick, clean oil changes
- 30-Gallon Truck-Mount Horizontal Air Receiver
- 5 year Factory Warranty on pump & tank; 2 years on other components
- ***Electric Start Battery & Cables Not Includes; Must Be Purchased Separately***
Specifications
Engine
HP
18
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
39
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
540 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
44 Inches
Product Width
23 Inches
Product Height
44 Inches
Power Type
Gas
UPC
815002010281
Grade

Style

Engine Brand

CFM
39
CFM Rated @ 100 PSI
Tank Size
30
Gallons
Grade
Contractor
Engine Brand
Honda GX
CFM
39 CFM Rated @ 100 PSI
Tank Size
30 Gallons
Features
Features
- Gas Drive Series Two-Stage Cast Iron Pump
- Quiet, low RPM design
- Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
- 18-HP Honda GX Engine w/ Electric Start
- OHV design provides excellent torque and fuel efficiency
- Provides long life and proven durability
- 5 gallon gas tank lets you work longer between refills
- Flow-Tek - Concentric Disc Valves
- Delivers maximum air flow & reliability with low replacement cost
- Cool-Tek - The Coolest Running Compressors In The Industry
- 35% lower operating temperature
- Reduces moisture build up & extends pump life
- Air-Stream Technology
- Provides up to 50% longer pump life
- Belt Tension Adjuster - Fast, Easy "One Turn" Design
- Reduces vibration and extends belt life
- Gate Valve Oil Drain
- Provides quick, clean oil changes
- 30-Gallon Truck-Mount Horizontal Air Receiver
- 5 year Factory Warranty on pump & tank; 2 years on other components
- ***Electric Start Battery & Cables Not Includes; Must Be Purchased Separately***
Specifications
Engine
HP
18
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
39
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
540 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
44 Inches
Product Width
23 Inches
Product Height
44 Inches
Power Type
Gas
UPC
815002010281
Product Specs
+−
Specifications
Engine
HP
18
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
39
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
540 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
44 Inches
Product Width
23 Inches
Product Height
44 Inches
Power Type
Gas
UPC
815002010281
Product Q&A
(2)
+−

Search Product Q&A's
Answered by Joshua. the Air Compressor Expert
+−
What is the copper tubing for on the pump? Also, what is the warranty?
TwinLake
from District of Columbia
August 22, 2018
Answer
The copper tubing ensures the compressor goes into idle mode when it reaches its max pressure. It allows air to pass through it and causes it to hold open the intake valves in the head of the pump. This idle mode helps with fuel conservation. As far as the warranty goes, it is a 5-year factory warranty on the pump and tank; 2 years on other components. Please see page 12 of the product manual for more details.
Was this answer helpful?
Yes

0
No

0
+−
Is this compressor equipped with a battery to start it up?
Alberto
from Texas
May 21, 2018
Answer
Yes, this unit does come with a battery. If you have any other questions about this or other products from our website, don't hesitate to give us a call or check the product manual.
Was this answer helpful?
Yes

0
No

0
