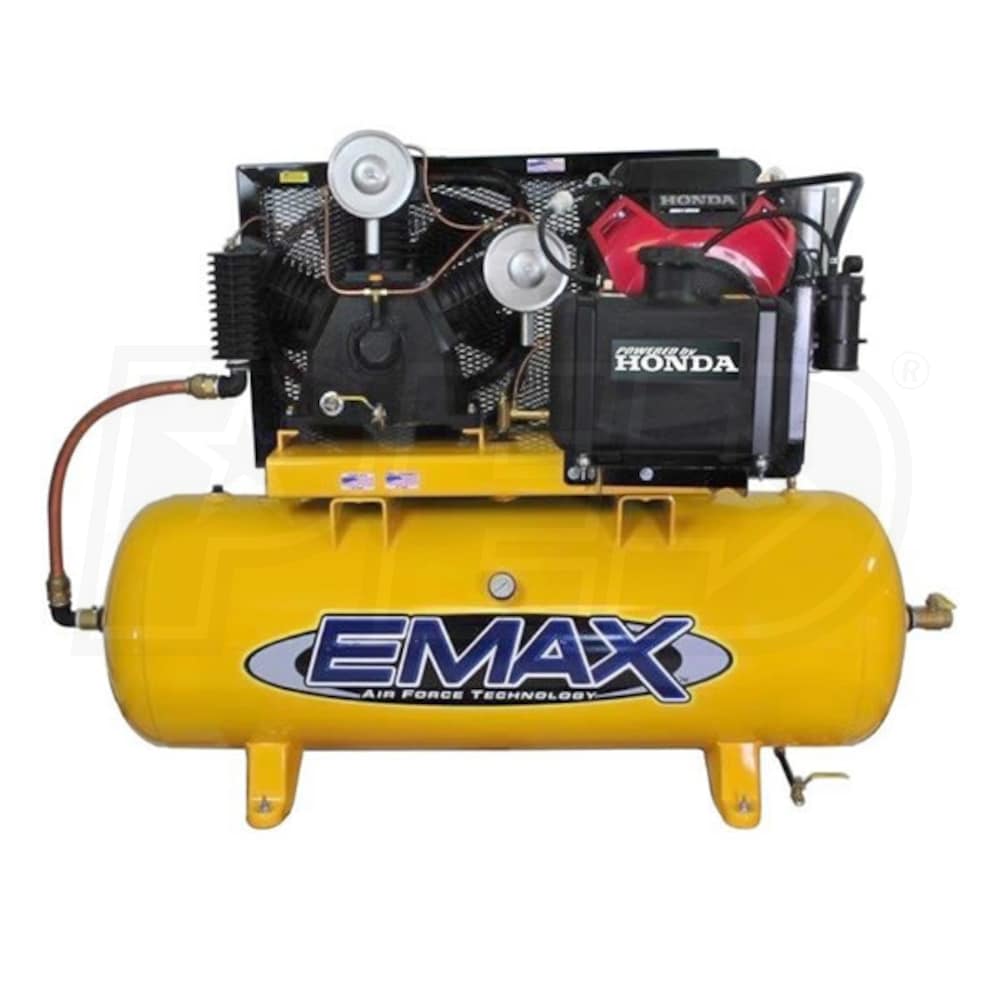

EMAX 24-HP 80-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine

Model:

EGES2480ST

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
EMAX 24-HP 80-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
EMAX 24-HP 80-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model: EGES2480ST
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Air Compressors Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Optional Accessories 4
$170.16
Factory-Direct
$105.52
Factory-Direct
$62.00
Factory-Direct
$216.00
Factory-Direct

Features

Grade

Contractor

Style

Truck Mount

Engine Brand

Honda GX

CFM

57

Tank Size

80

  • Gas Drive Series Two-Stage Cast Iron Pump
  • Quiet, low RPM design
  • Rated at up to 50,000 hours* (Based on B-10 Bearing Life Rating)
  • 24-HP Honda GX Engine w/ Electric Start
  • OHV design provides excellent torque and fuel efficiency
  • Provides long life and proven durability
  • 5 gallon gas tank lets you work longer between fill-ups
  • Flow-Tek - Concentric Disc Valves
  • Delivers maximum air flow & reliability with low replacement cost
  • Cool-Tek - The Coolest Running Compressors In The Industry
  • 35% lower operating temperature
  • Reduces moisture build up & extends pump life
  • Air-Stream Technology
  • Provides up to 50% longer pump life
  • Belt Tension Adjuster - Fast, Easy "One Turn" Design
  • Reduces vibration and extends belt life
  • Gate Valve Oil Drain
  • Provides quick, clean oil changes
  • 80-Gallon Truck-Mount Horizontal Air Receiver
  • Powder coated and ASME certified
  • ***Electric Start Battery & Cables Not Includes; Must Be Purchased Separately***
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

EGES2480ST
specs product image PID-4181
General Information
Product Category
Air Compressor - Portable
Engine
HP
24
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Button Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
57
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
1 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
870 Pounds
Certification
UL, CSA, ASME
Consumer Warranty
5 Years
Commercial Warranty
2 Years
Product Length
72 Inches
Product Width
25 Inches
Product Height
50 Inches
Power Type
Gas
UPC
815002010304

Reviews

(2)
EMAX EGES2480ST Reviews & Ratings
Great Motor On This!
By Tim W.
San Antonio, Texas
Review Posted 12/22/2017
Might be overkill for what we needed it for, but it gets the job done quick and easily. 24HP Honda engine is awesome.
Tim W. Recommends This
Was this review helpful?
Manufacturer Response
Thanks for leaving your review and supporting EMAX!!
EMAX
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Features, Easy To Use, High Quality
Cons:
Heavy
Best Gas Truck-Mount Compressor Built
By Bill D.
Columbus, Ohio
Review Posted 11/22/2015
If you're looking for the toughest gas truck mount compressor in the business this is it.

This beast will run a jack hammer, 1 inch impacts, silo air guns, or just about anything one man can pick up.

The solid cast iron pump and 24HP Honda engine are the heart of this compressor. I love the fact it's manufactured near Dayton Ohio. It even has a built in gas tank!
